11 23 010 Removing And Installing/Replacing Vibration Damper (N73)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove engine splash guard.
Remove fan cowl. Refer to 17 11 031 REPLACING FAN COWL (N73) .
Remove fan. Refer to 11 52 020 REMOVING AND INSTALLING OR REPLACING FAN CLUTCH (N73) .
Remove alternator drive belt. Refer to 11 28 010 REPLACING ALTERNATOR DRIVE BELT (N73) .
Remove A/C compressor drive belt. Refer to 11 28 050 REPLACING A/C COMPRESSOR DRIVE BELT (N73) .

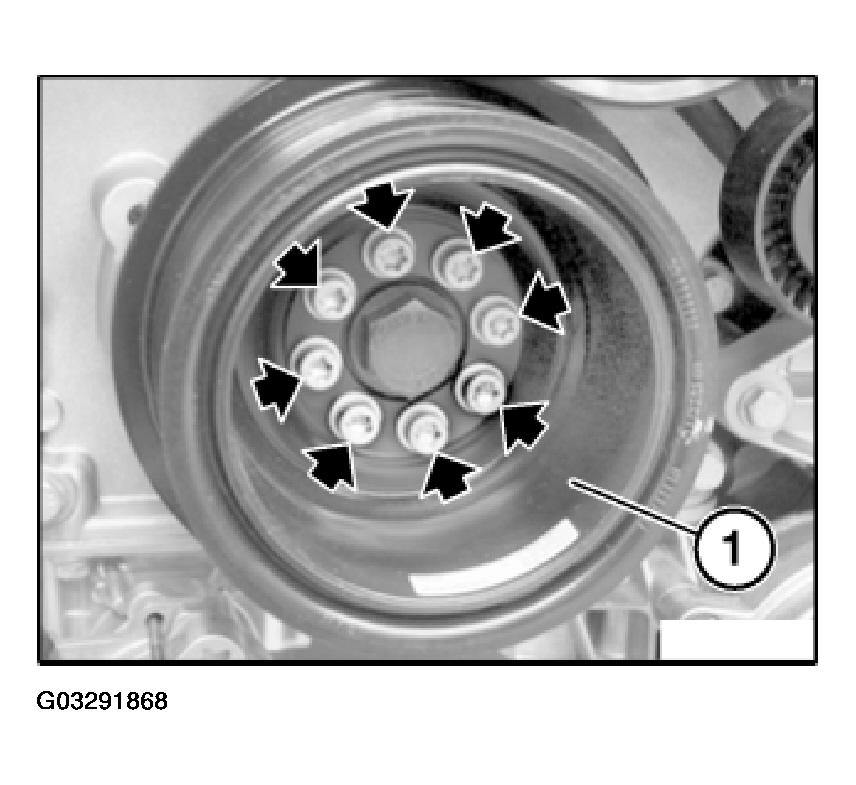

Release screws and remove vibration damper (1).

Installation:

Replace screws.

Tightening torque, refer to 11 23 3AZ in ENGINE - TIGHTENING TORQUES .

Fig 1: Removing Vibration Damper

G03291868

Courtesy of BMW OF NORTH AMERICA, INC.

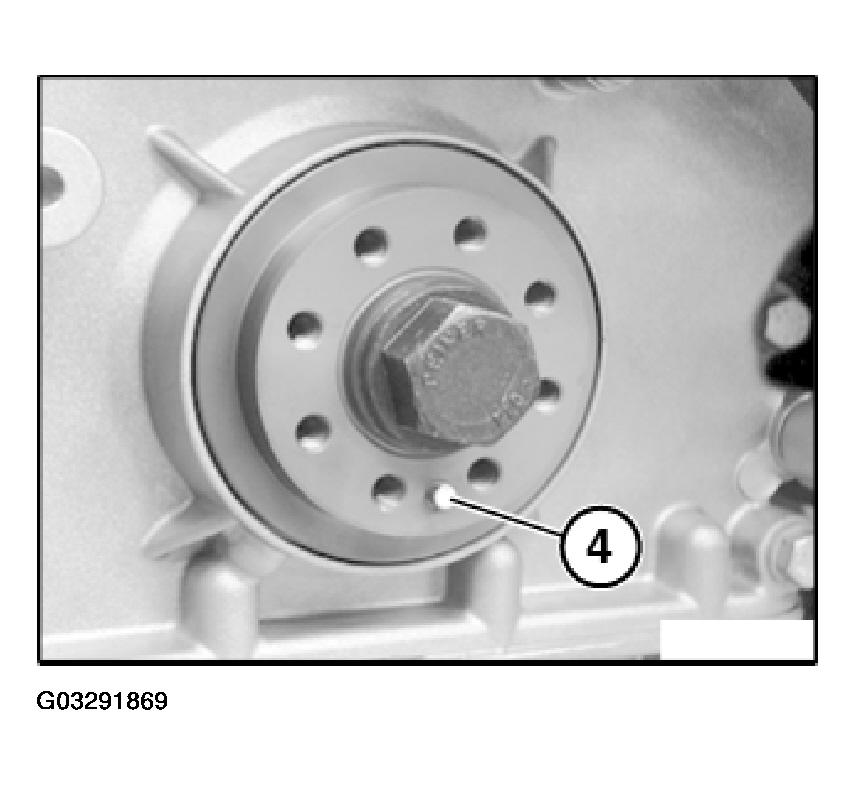

Vibration damper is secured on hub with an alignment pin (4).

Fig 2: Securing Vibration Damper With Pin

G03291869

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

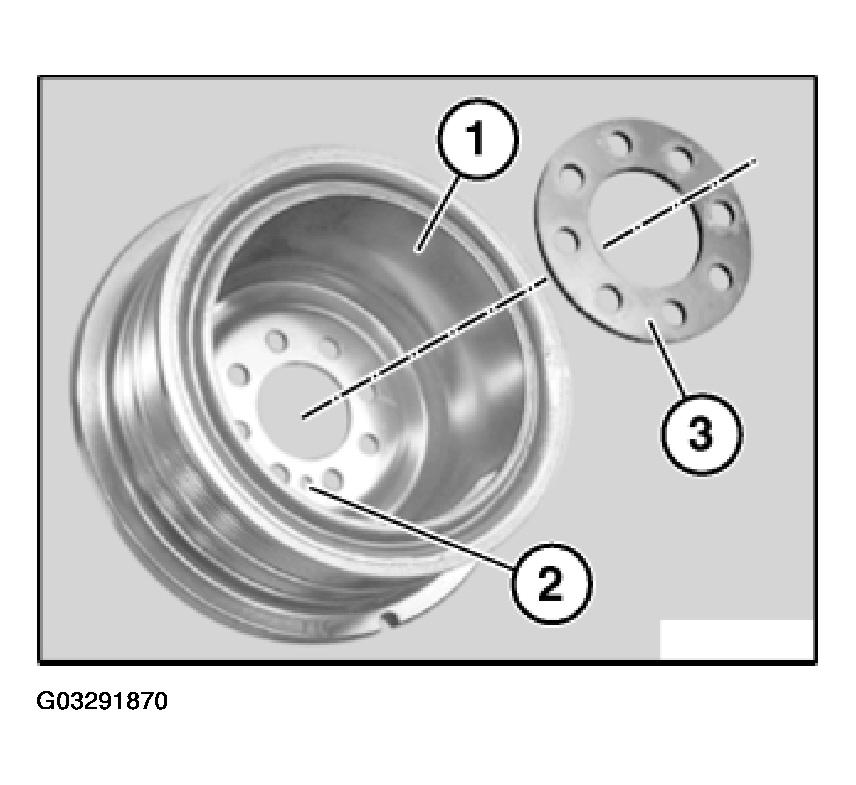

Position vibration damper (1) on hub.

Bore (2) for dowel pin.

Fit disk (3).

Fig 3: Installing Vibration Damper

G03291870

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Remove all special tools.
