17 11 031 Replacing Fan Cowl (N73)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, and 2005 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove fan clutch. Refer to 11 52 020 REMOVING AND INSTALLING OR REPLACING FAN CLUTCH (N73) .

Unfasten screws.

Remove front wall (1).

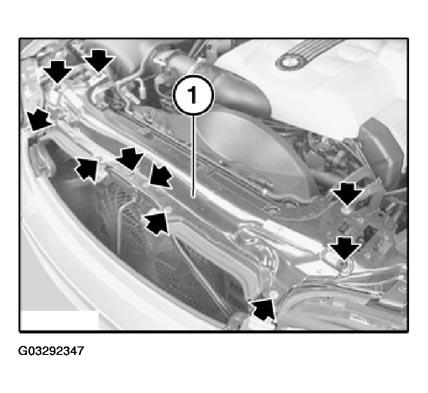

Fig 1: Locating Front Wall Retaining Screws

G03292347

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

Remove radiator cowling (2).

Unclip auxiliary fan cover and remove.

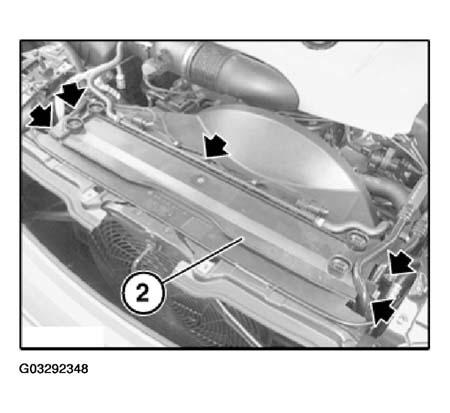

Fig 2: View Of Radiator Cowling

G03292348

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug (1) on AUC sensor and disconnect.

Unclip plug connection (2).

If necessary, unclip AUC sensor (1).

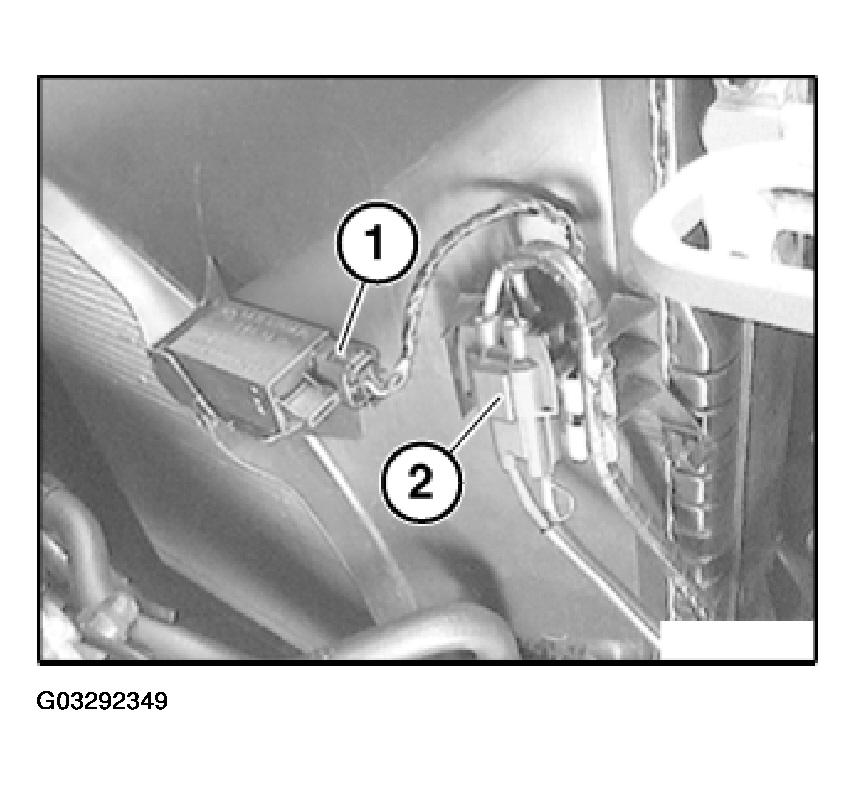

Fig 3: Locating Plug Connection On AUC Sensor

G03292349

Courtesy of BMW OF NORTH AMERICA, INC.

Raise fan cowl (1) approx. 3 cm.

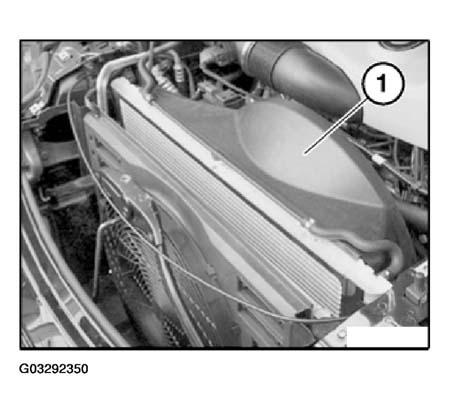

Fig 4: View Of Fan Cowl

G03292350

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, this work step is shown on the fan cowl after it has been removed.

Fold left retaining tab to fan cowl (1).

Remove fan cowl (1) towards top.

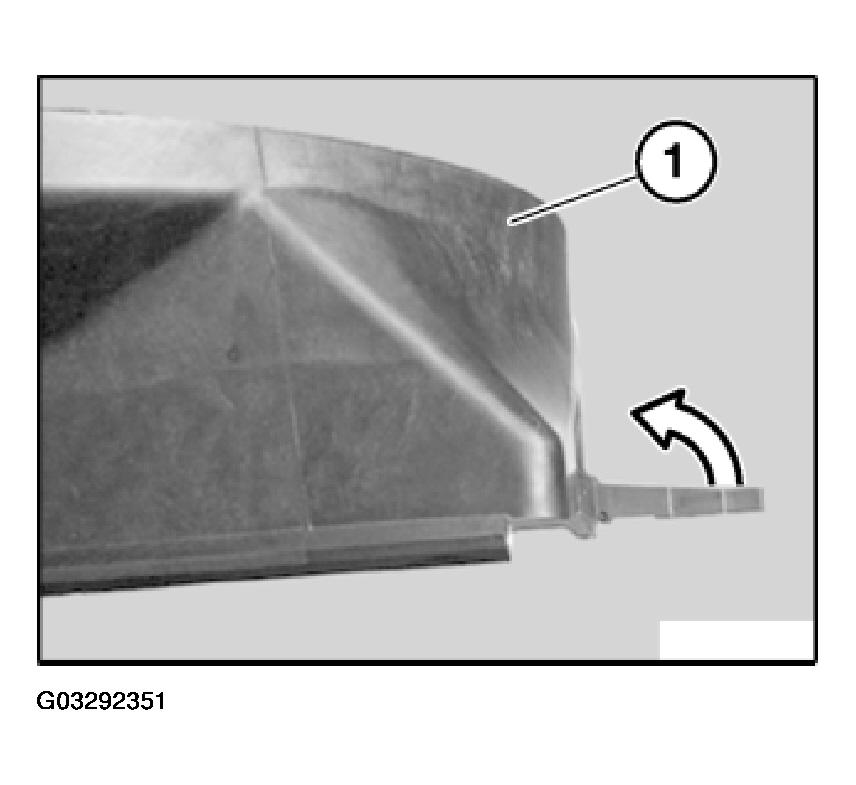

Fig 5: Identifying Left Retaining Tab On Fan Cowl

G03292351

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert retaining tab (2) at bottom on module carrier.

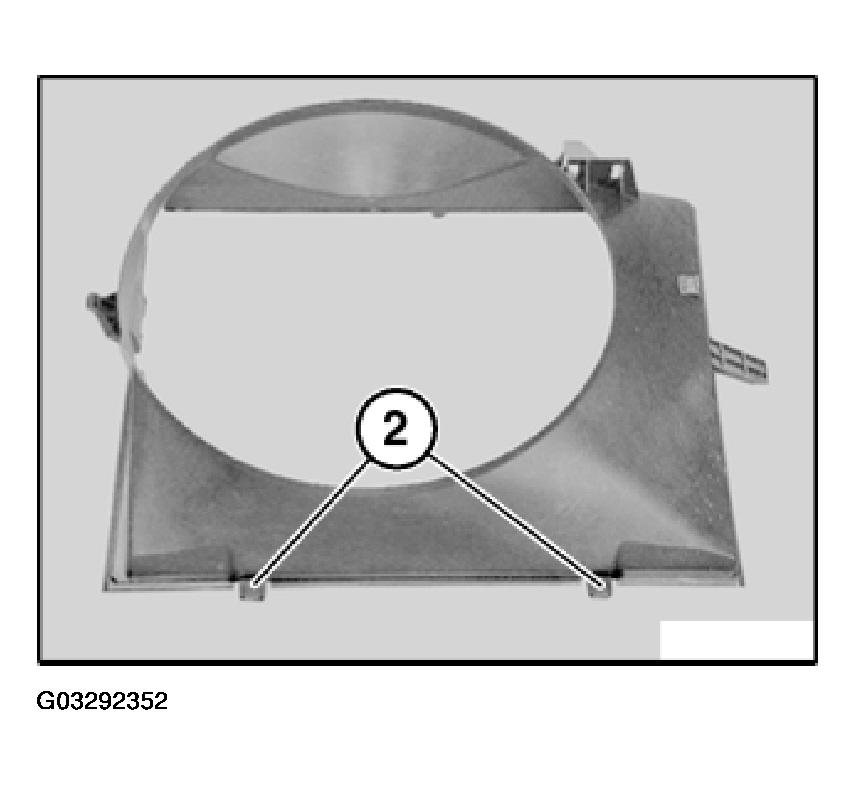

Fig 6: Locating Retaining Tab At Bottom On Module Carrier

G03292352

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
