11 28 010 Replacing Alternator Drive Belt (N73)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see ENGINE- SPECIAL TOOLS .
Special Tools Required:
- 11 3 340
Necessary Preliminary Tasks:
- Remove fan clutch with fan impeller. Refer to 11 52 020 REMOVING AND INSTALLING OR REPLACING FAN CLUTCH (N73) .
NOTE:
If the drive belt is to be reused: Mark direction of travel and reinstall drive belt in same direction of travel.

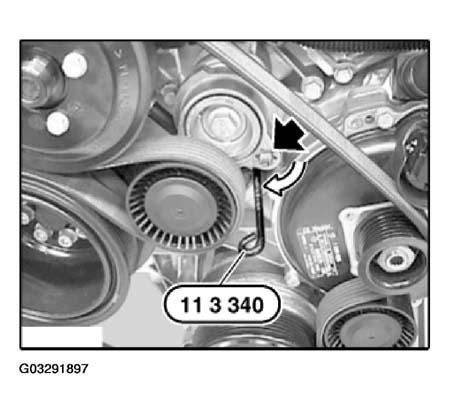

Secure belt tensioner in place with special tool 11 3 340. Remove drive belt.
Installation:
Check drive belt for coolant and oil residue and replace if necessary.
Ensure correct installation position: Risk of damage.
