11 52 020 Removing And Installing Or Replacing Fan Clutch (N73)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see ENGINE- SPECIAL TOOLS .

Special Tools Required:

11 5 040
11 5 050

Necessary Preliminary Tasks:

Remove radiator cover.
Remove engine cover.

Detach fan wheel with special tools 11 5 050 and 11 5 040 (union nut) from water pump.

IMPORTANT: Left-hand threads.

Remove fan wheel with fan coupling from water pump.

Tightening torque, refer to 11 52 1AZ in ENGINE - TIGHTENING TORQUES .

Remove fan clutch in conjunction with fan cowl. Refer to 17 11 031 REPLACING FAN COWL (N73) .

Installation:

Set 30 N.m. when using special tool 11 5 040.

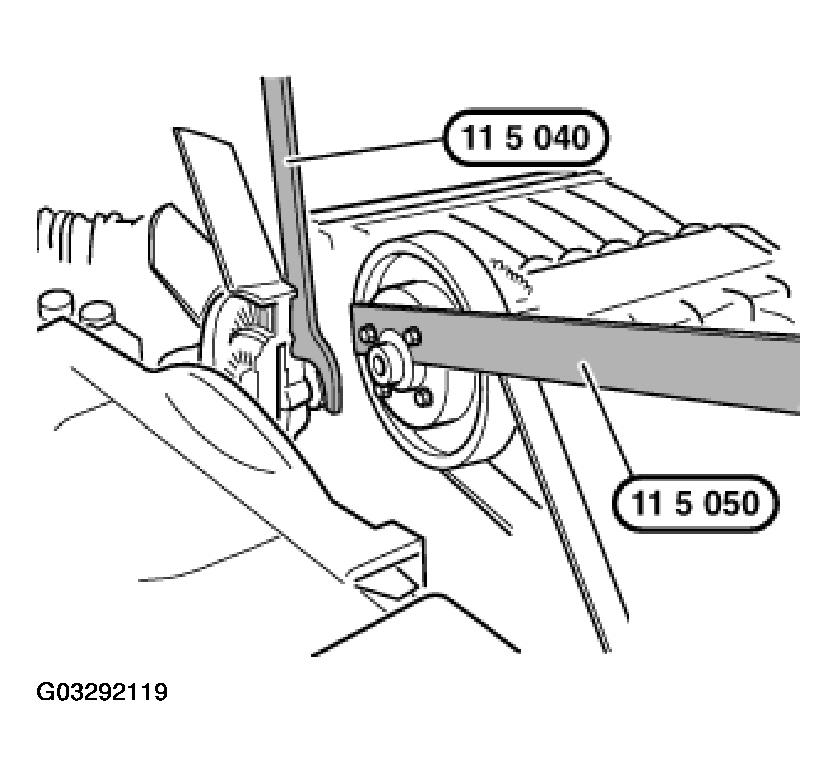

Fig 1: Detaching Fan Wheel From Water Pump With Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and detach fan from fan coupling.

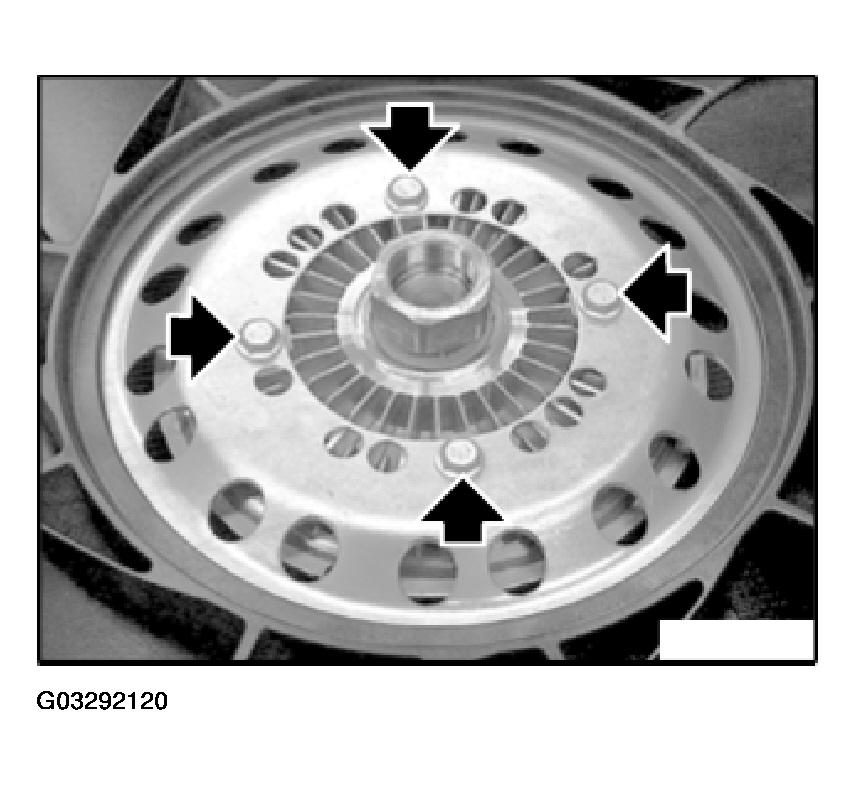

Fig 2: Locating Fan To Fan Coupling Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check function of fan clutch.
