11 34 560 Replacing All Valve Stem Seals (N73)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see ENGINE- SPECIAL TOOLS .

Special Tools Required:

11 1 380
11 3 380
11 6 370
11 6 380

Necessary Preliminary Tasks:

Remove left cylinder head cover. Refer to 11 12 005 REMOVING AND INSTALLING/SEALING LEFT CYLINDER HEAD COVER (N73) .
Remove right cylinder head cover. Refer to 11 12 006 REMOVING AND INSTALLING/SEALING RIGHT CYLINDER HEAD COVER (N73) .
Remove inlet and exhaust adjustment unit on left side. Refer to 11 36 047 REMOVING AND INSTALLING/REPLACING INLET AND EXHAUST VANOS ON LEFT SIDE (N73) .
Remove inlet and exhaust adjustment unit on right side. Refer to 11 36 047 REMOVING AND INSTALLING/REPLACING INLET AND EXHAUST VANOS ON LEFT SIDE (N73) .
Remove left intermediate lever. Refer to 11 37 012 REMOVING AND INSTALLING/REPLACING LEFT INTERMEDIATE LEVERS (N73) .
Remove right intermediate lever. Refer to 11 37 014 REMOVING AND INSTALLING/REPLACING RIGHT INTERMEDIATE LEVERS (N73) .
Remove left exhaust camshaft. Refer to 11 31 036 REMOVING AND INSTALLING/REPLACING LEFT EXHAUST CAMSHAFT (N73) .
Remove right exhaust camshaft. Refer to 11 31 038 REMOVING AND INSTALLING/REPLACING RIGHT EXHAUST CAMSHAFT (N73) .
Remove left cylinder head. Refer to 11 12 105 REMOVING AND INSTALLING LEFT CYLINDER HEAD (N73) .
Remove right cylinder head. Refer to 11 12 106 REMOVING AND INSTALLING RIGHT CYLINDER HEAD (N73) .
Remove all valve springs. Refer to 11 34 715 REPLACING ALL VALVE SPRINGS (N73) .

Press special tool 11 6 370 onto valve stem seals.

Withdraw valve stem seals by turning and simultaneously pulling with special tool 11 6 370.

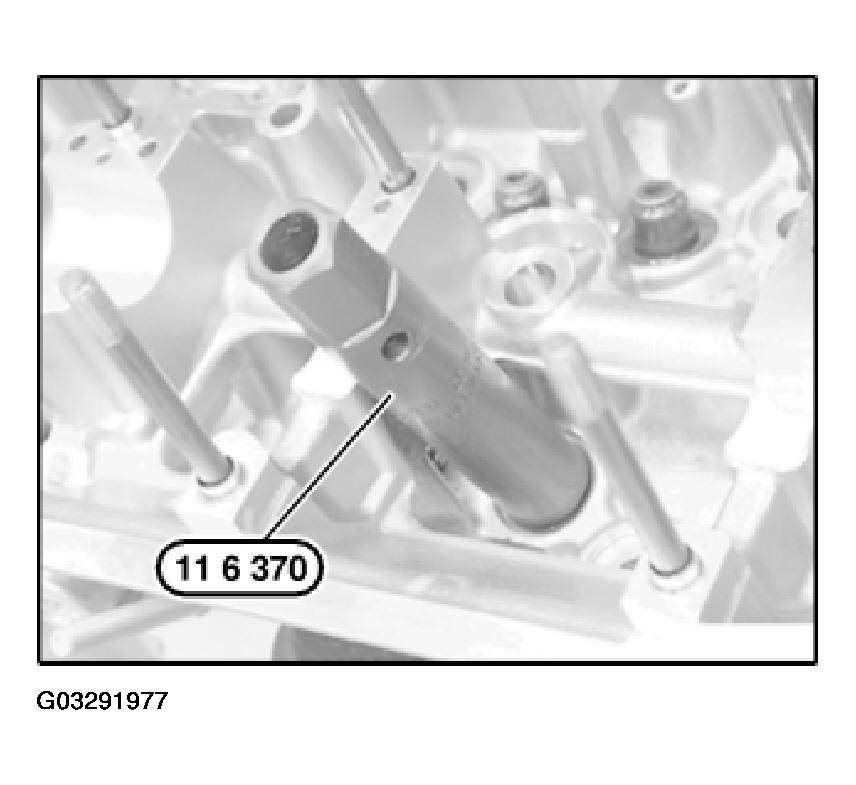

Fig 1: Identifying Valve Stem Seal Puller

Courtesy of BMW OF NORTH AMERICA, INC.

Fit special tool 11 1 380.

Fit new valve stem seals (1).

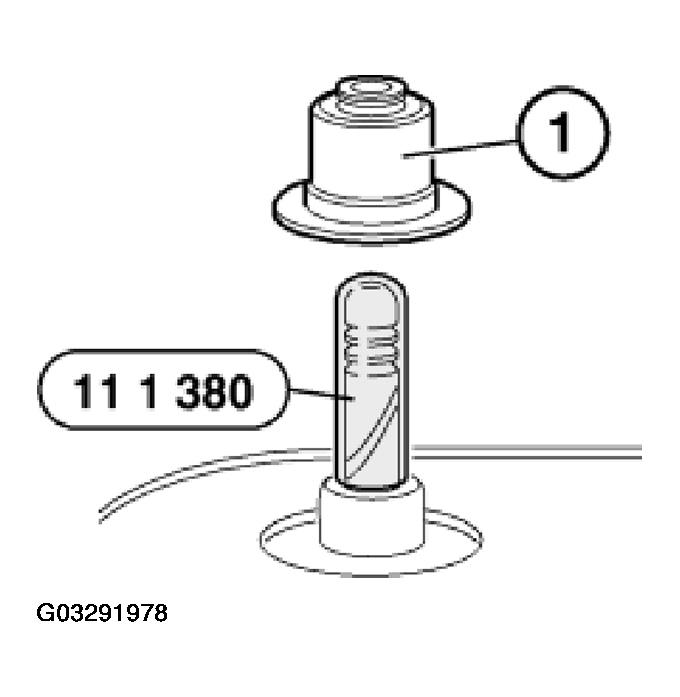

Fig 2: Fitting Valve Stem Seals On Bush

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Apply a light coat of oil to valve stem and valve stem seals.

Fig 3: Identifying Special Tool (00 6 380)

Courtesy of BMW OF NORTH AMERICA, INC.

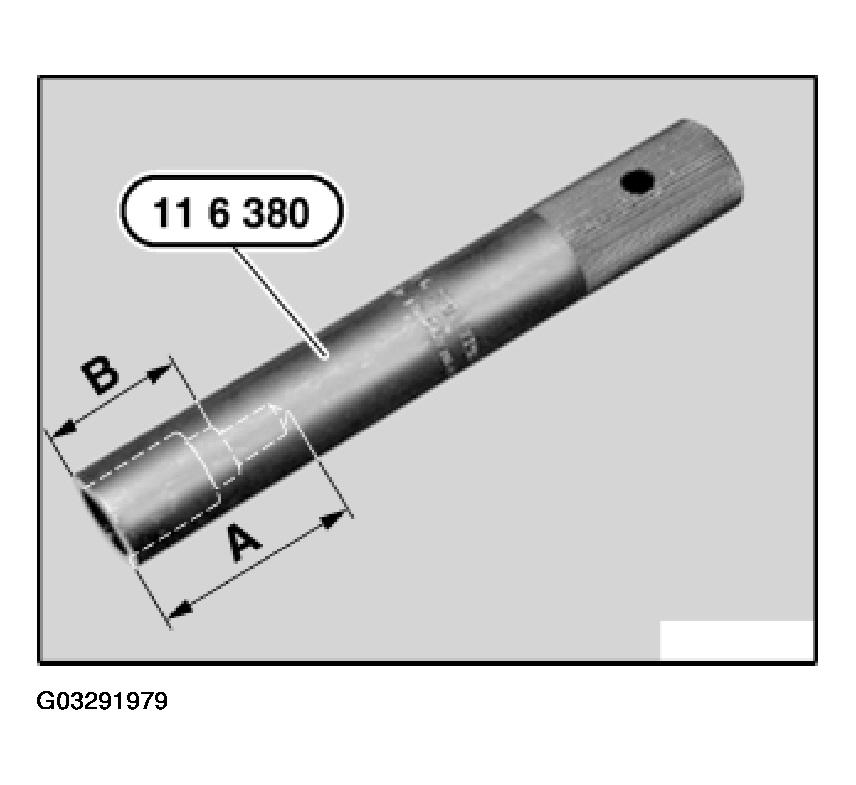

NOTE: For use on the N62 and N73 engines, special tool 11 6 380 must be remachined in accordance with the illustration with a 6.2 mm dia. drill bit to a depth of A = approx. 45 mm.

This modification has already been taken into account for reordering.

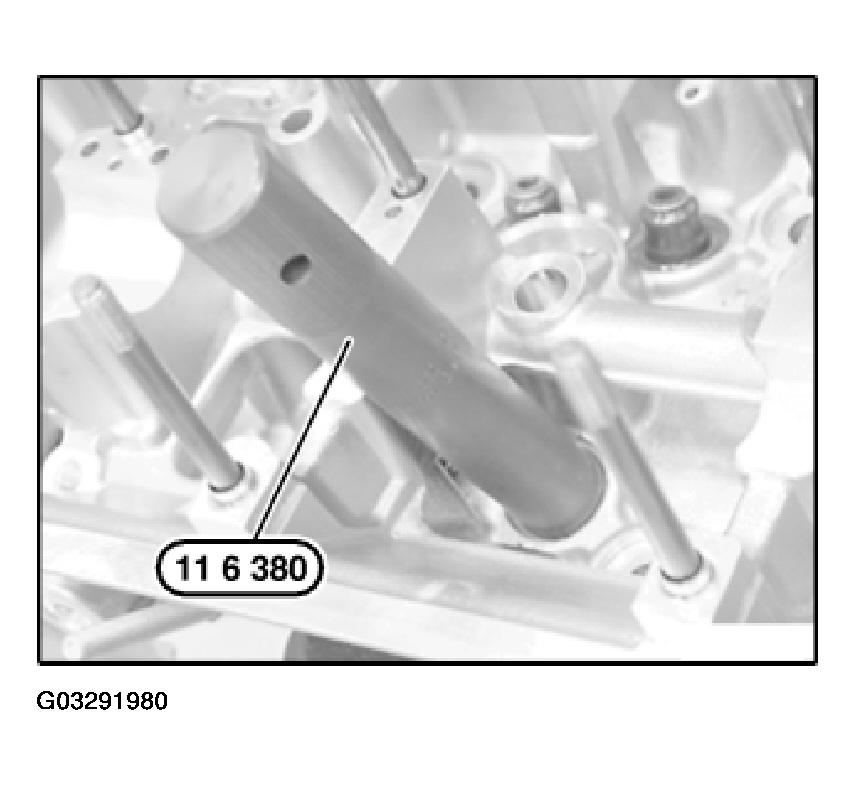

Fig 4: Installing Valve Stem Seals Using Bush

Courtesy of BMW OF NORTH AMERICA, INC.

Press on new valve stem seals with special tool 11 3 380 by hand up to stop.

Assemble engine.
