11 12 729 Checking Cylinder Head For Leaks (N73)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see ENGINE- SPECIAL TOOLS .

Special Tools Required:

11 9 430
11 9 432

Necessary Preliminary Tasks:

Remove left cylinder head. Refer to 11 12 105 REMOVING AND INSTALLING LEFT CYLINDER HEAD (N73) .
Remove right cylinder head. Refer to 11 12 106 REMOVING AND INSTALLING RIGHT CYLINDER HEAD (N73) .
Remove left bearing bracket with inlet camshaft and intermediate shaft. Refer to 11 37 012 REMOVING AND INSTALLING/REPLACING LEFT INTERMEDIATE LEVERS (N73) .
Remove right bearing bracket with inlet camshaft and intermediate shaft. Refer to 11 37 014 REMOVING AND INSTALLING/REPLACING RIGHT INTERMEDIATE LEVERS (N73) .
Remove left exhaust camshaft. Refer to 11 31 036 REMOVING AND INSTALLING/REPLACING LEFT EXHAUST CAMSHAFT (N73) .
Remove right exhaust camshaft. Refer to 11 31 038 REMOVING AND INSTALLING/REPLACING RIGHT EXHAUST CAMSHAFT (N73) .
Remove all valves. Refer to 11 34 560 REPLACING ALL VALVE STEM SEALS (N73) .

Place special tool 11 9 430 on cylinder head sealing faces.

To secure special tool 11 9 430, secure with the old cylinder head bolts and the supplied nuts.

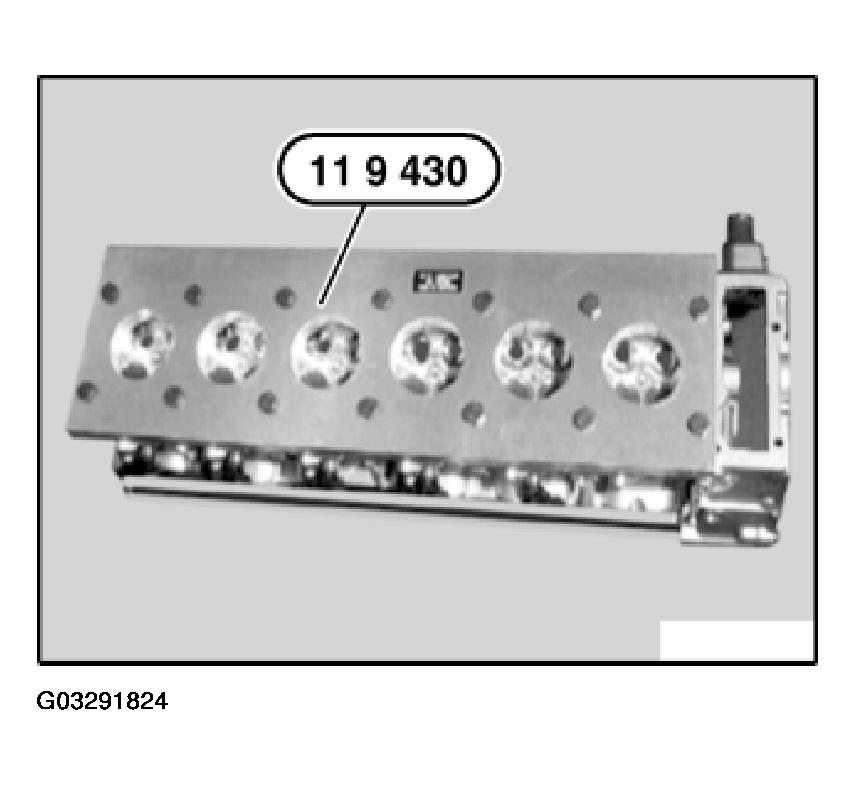

Fig 1: Installing Special Tool On Cylinder Head Sealing Faces

Courtesy of BMW OF NORTH AMERICA, INC.

Remove vent fitting on cylinder head.

Screw in special tool 11 9 432.

Connect pressure hose to pressure gauge.

Test pressure: 4.5 bar.

Immerse cylinder head in a water bath.

Check cylinder head for escaping air (cracks).

NOTE: If the necessary, add cleaning agent to water bath.

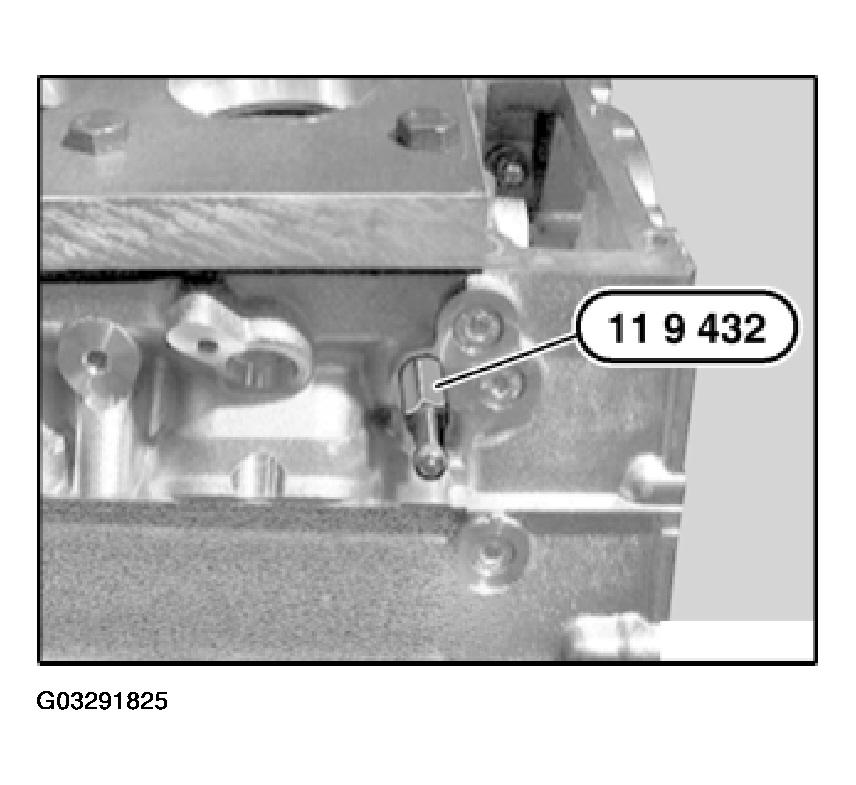

Fig 2: Installing Special Tool (11 9 432)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Replace cylinder head in event of cracking in water or oil area.

Assemble engine in reverse sequence to its disassembly.
