61 31 006 Removing and installing (replacing) fixture for steering column stalk (up to 09/2005)

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Move wheels into straight-ahead position and do not alter this position during the repair work.

IMPORTANT: Read and comply with NOTES ON PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove TOP SECTION OF STEERING COLUMN CASING .
If necessary, remove deformation element for steering column trim.

NOTE: Follow instructions for HANDLING OPTICAL FIBRES .

Release screws (1).

Pull back fixture for steering column switch (2) in direction of arrow.

Disconnect plug connections behind and remove fixture for steering column stalk (2).

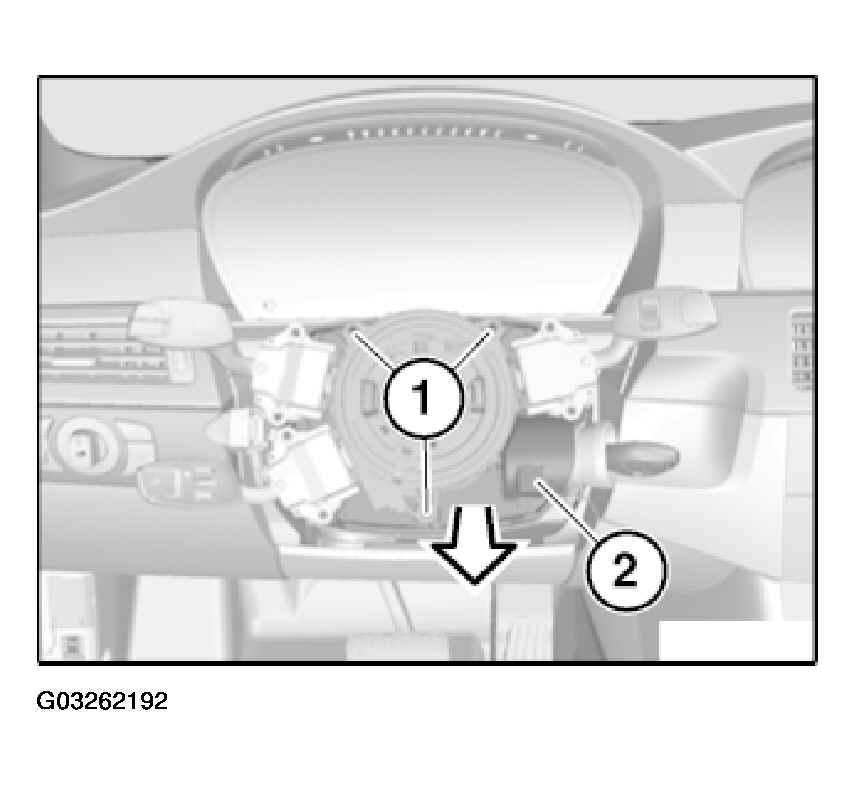

Fig 1: Pulling Back Fixture For Steering Column Switch (2) In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove TRAVEL DIRECTION DIMMER SWITCH .
Remove WINDSHIELD WIPER SWITCH .
If necessary, remove CRUISE CONTROL SWITCH .
Remove VOLUTE SPRING CASSETTE

Replacement:

Carry out PROGRAMMING/CODING with BMW scan tool.
Vehicles without active front steering:
- Carry out STEERING ANGLE SENSOR ADJUSTMENT
Vehicles with active front steering:
- Carry out ACTIVE FRONT STEERING START-UP/ADJUSTMENT .
