61 31 011 Removing and installing/replacing volute spring cassette (up to 09/2005)

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FIXTURE FOR STEERING COLUMN STALK .

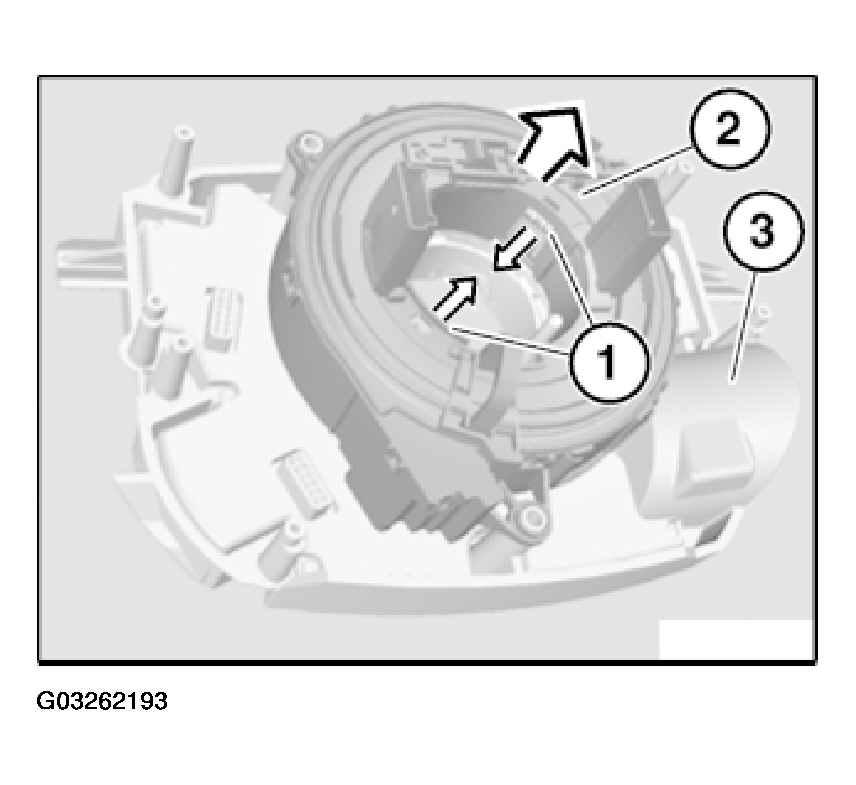

Unlock catches (1) and remove volute spring cassette (2) in direction of arrow from fixture for steering column switch (3).

Fig 1: Removing Volute Spring Cassette

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

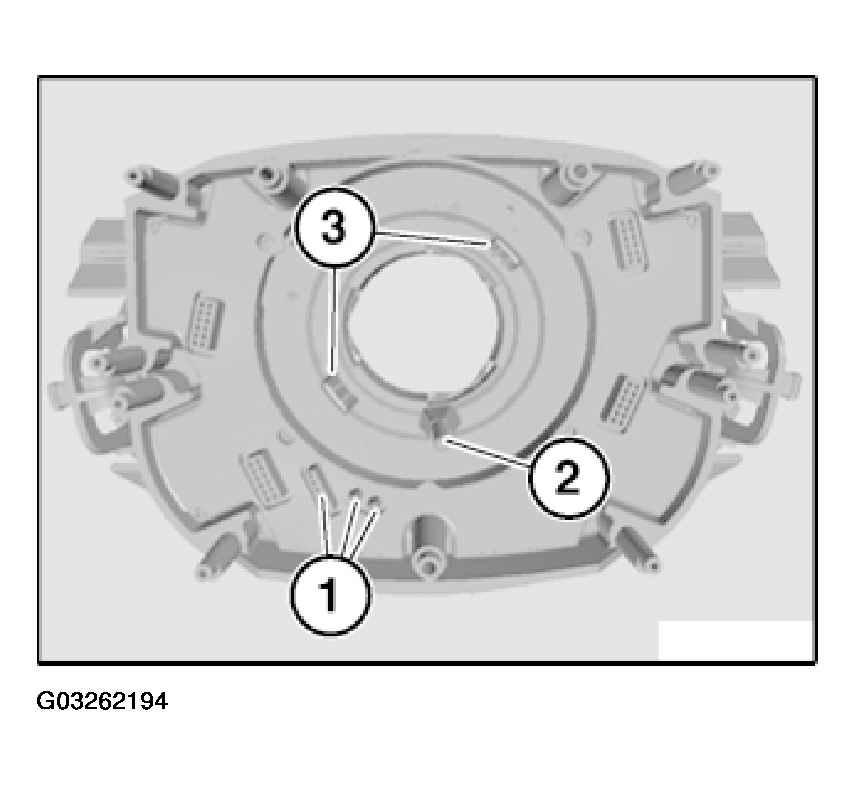

Seat volute spring cassette exactly on plug connections (1), guide (2) and mounts (3).

Fig 2: Seating Volute Spring Cassette Exactly On Plug Connections, Guide And Mounts

Courtesy of BMW OF NORTH AMERICA, INC.
