61 31 040 Removing and installing/replacing switch for windshield wipers
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Disconnect BATTERY EARTH LEAD
- Remove FRONT SECTION OF STEERING COLUMN TRIM .
- Remove STEERING WHEEL
- Remove FRONT STEERING COLUMN SHROUD

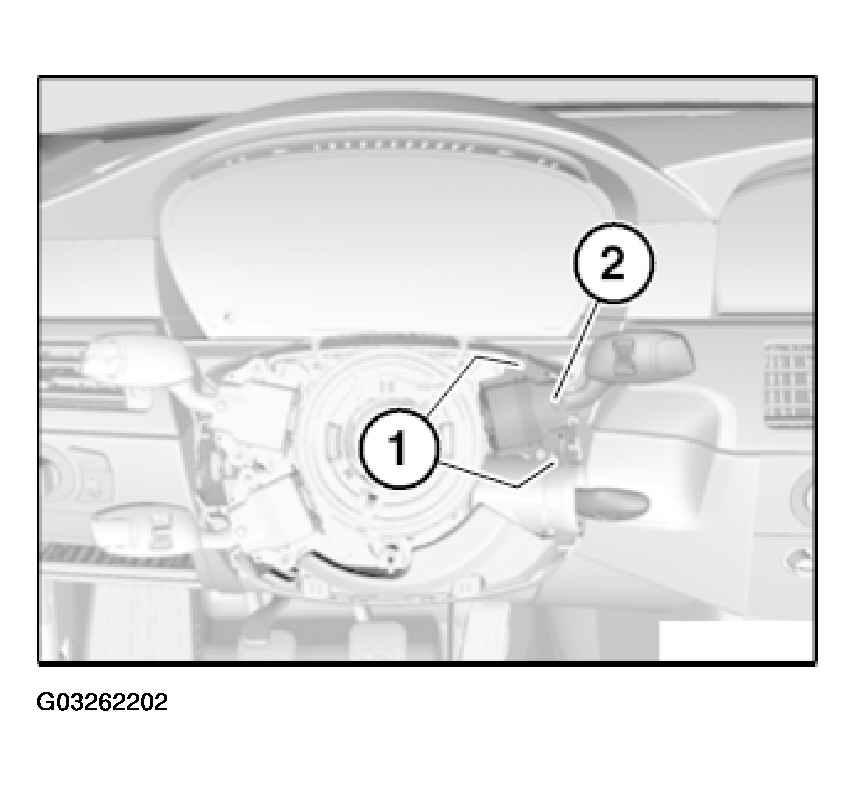

Release screws (1) and remove windshield wiper switch (2) towards rear.
