61 31 016 Removing and installing/replacing the travel direction dimmer switch

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Disconnect BATTERY EARTH LEAD
Remove AIRBAG UNIT .
Remove STEERING WHEEL
Remove FRONT STEERING COLUMN SHROUD

Release screws (1) and remove the travel direction dimmer switch (2) to the rear.

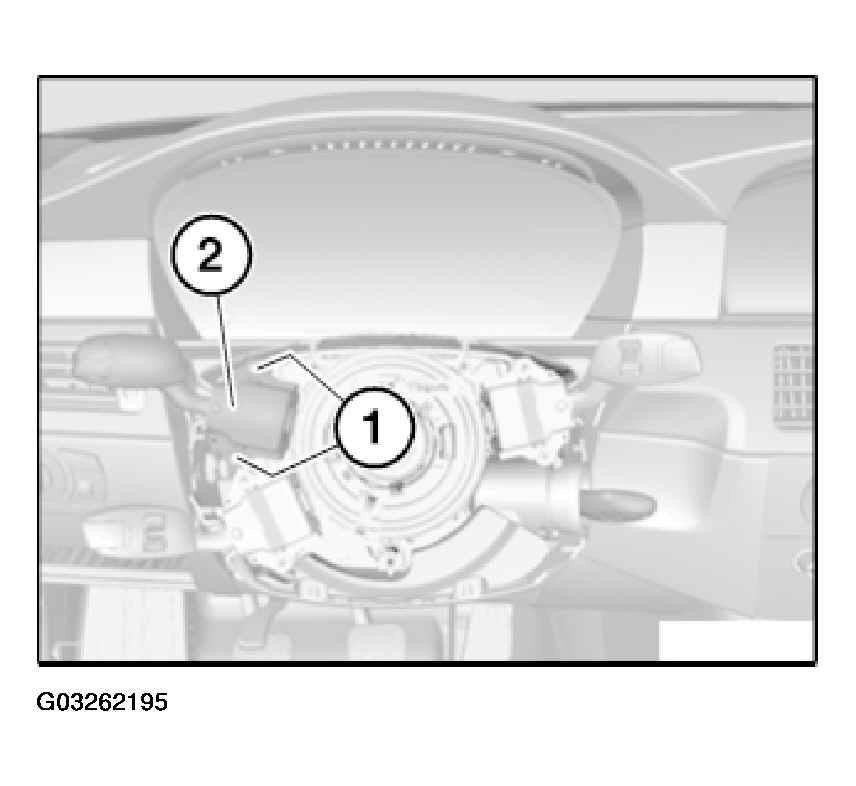

Fig 1: Removing Turn Indicator/Headlight Dipping Switch

Courtesy of BMW OF NORTH AMERICA, INC.
