61 35 125 Removing and installing/replacing body module

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with NOTES ON PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Read out PROGRAMMING/CODING .

Print out and make a note of settings for car and key memory in CKM menu

Necessary preliminary tasks:

Disconnect BATTERY NEGATIVE LEAD
Remove TRIM FOR INSTRUMENT PANEL, BOTTOM LEFT (same as right side)
Detach AIRBAG CONTROL UNIT WITH GATEWAY MODULE .

NOTE: Open glovebox.

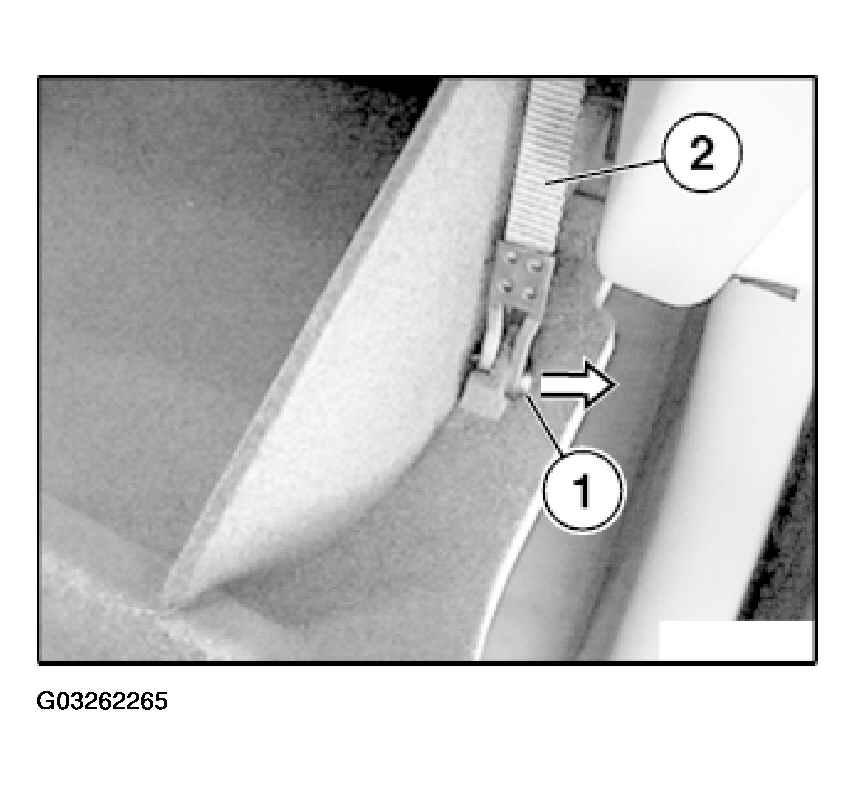

Unclip pin (1) from retaining strap (2).

Fig 1: Removing Pin From Retaining Strap

G03262265

Courtesy of BMW OF NORTH AMERICA, INC.

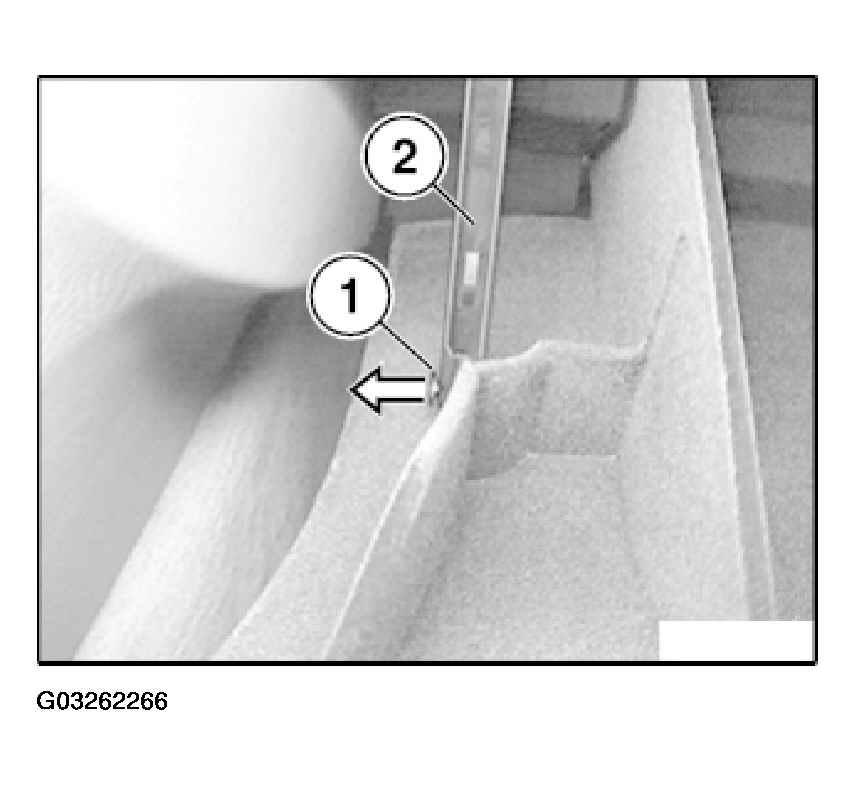

Unclip pin (1) from shock absorber (2).

Fig 2: Removing Pin From Shock Absorber

G03262266

Courtesy of BMW OF NORTH AMERICA, INC.

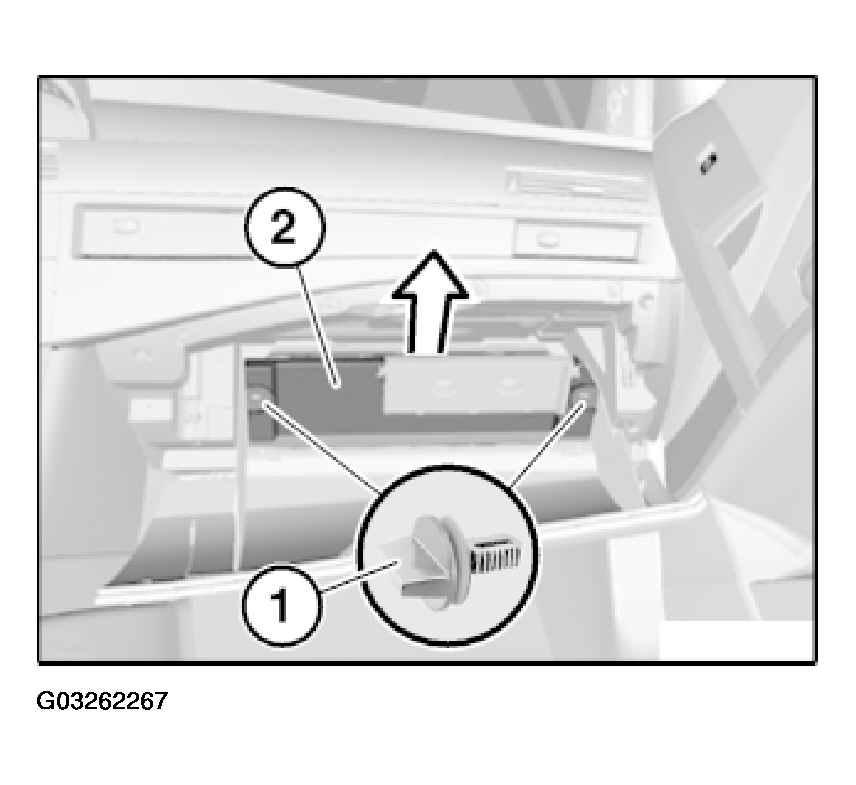

Open rotary clips (1) and remove.

Remove cover (2) in direction of arrow.

Fig 3: Removing Cover

G03262267

Courtesy of BMW OF NORTH AMERICA, INC.

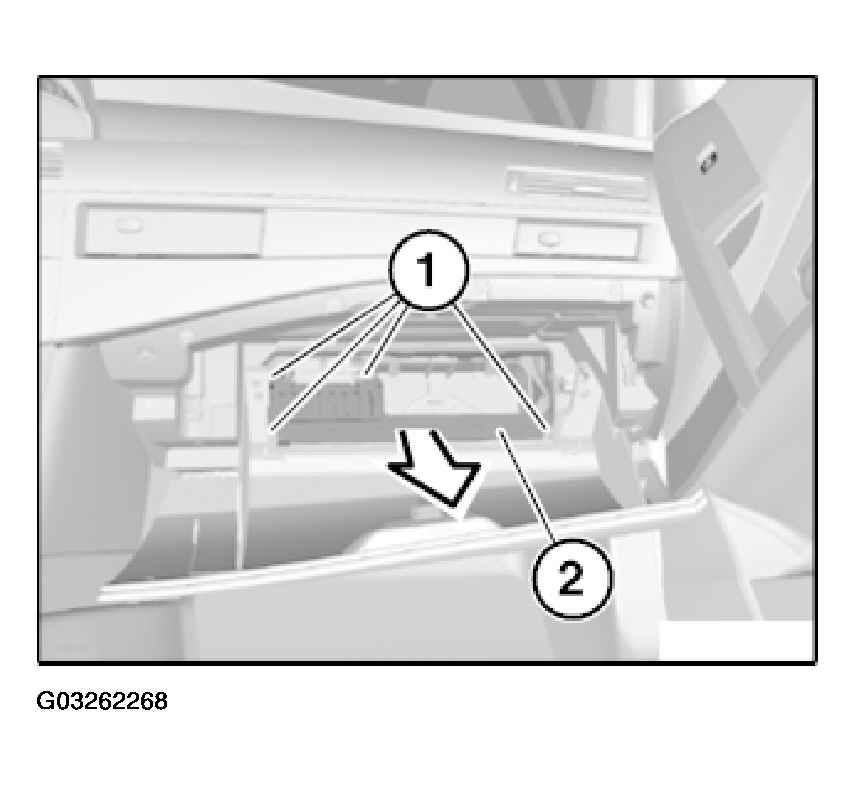

Release screws (1).

Pull fuse holder (2) back slightly.

Fig 4: Removing Fuse Holder Back Slightly

G03262268

Courtesy of BMW OF NORTH AMERICA, INC.

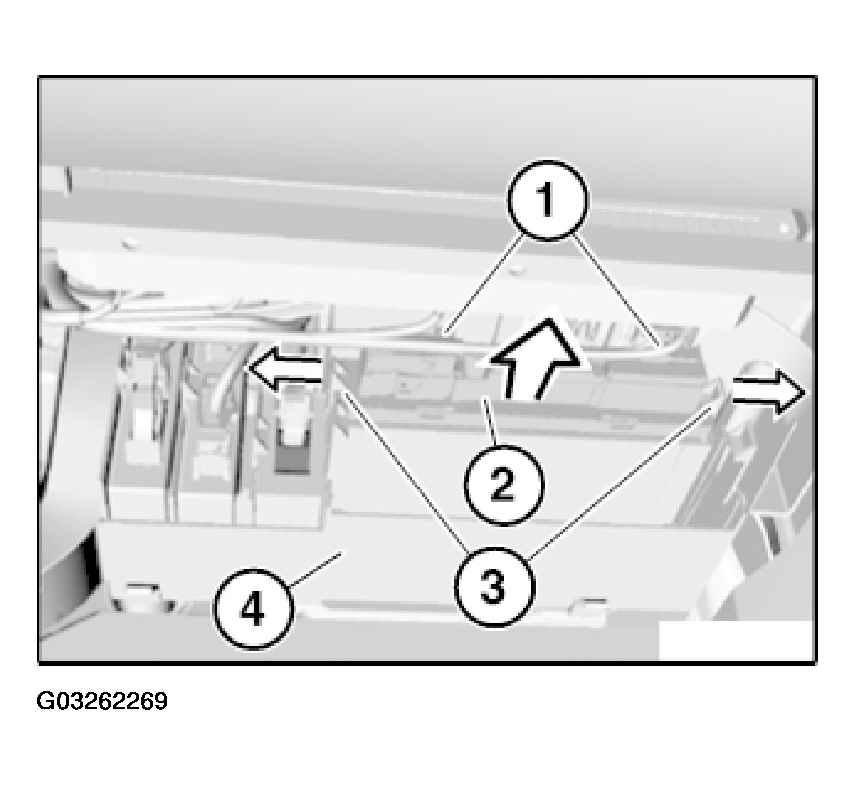

Unlock plug connections (1) and disconnect.

Unlock catches (3) in direction of arrow and remove body module (2) from equipment carrier (4).

Fig 5: Removing Body Module From Equipment Carrier

G03262269

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/CODING .

Check printed-out or noted-down settings for car and key memory in CKM menu and reset if necessary.
