61 20 900 Disconnecting and connecting battery negative lead
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Observe SAFETY INSTRUCTIONS FOR HANDLING VEHICLE BATTERY .
Follow INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY
Necessary preliminary tasks:
Version with intelligent battery sensor (IBS):

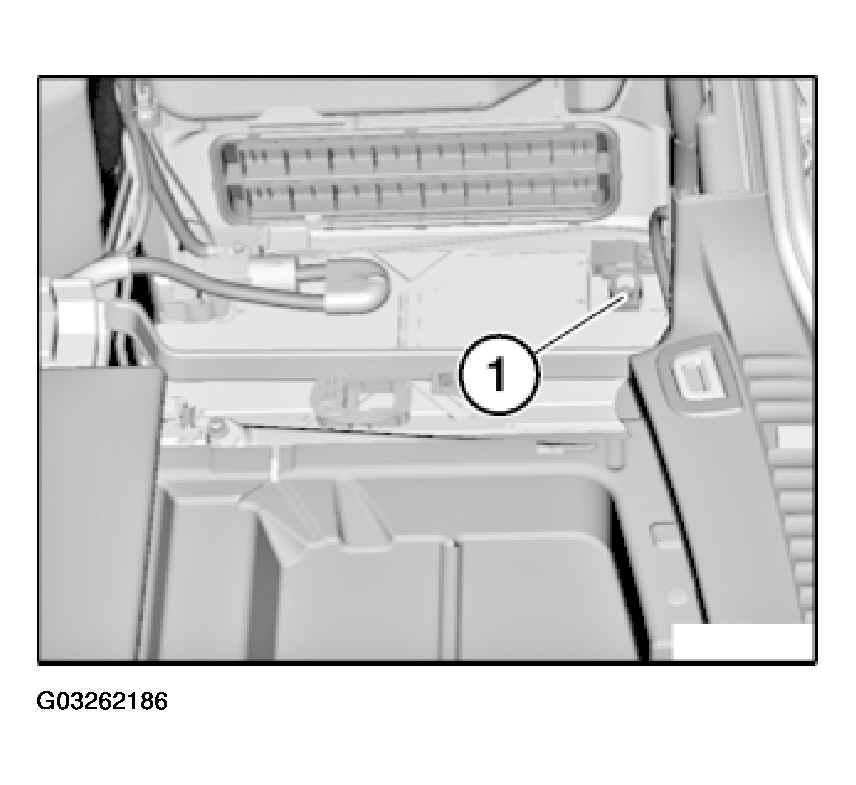

Loosen nut (1).
Tightening torque: 5 Nm
IMPORTANT:
Do not under any circumstances use force to pull off pole shoe.
Do not under any circumstances release socket-head cap screw of IBS (2).
Detach battery negative lead (3) with IBS (2) in upward direction, lay to one side and secure.
Version without intelligent battery sensor (IBS):
Disconnect battery negative lead (1).
IMPORTANT:
Cover battery negative terminal post and secure negative lead (1) at side.
Tightening torque: 5 Nm
WARNING:
Observe SAFETY INSTRUCTIONS FOR HANDLING VEHICLE BATTERY .
Follow Instructions For Disconnecting And Connecting Battery .
Necessary preliminary tasks:
- Remove battery cover or open right luggage compartment trim panel 51 47 220 REMOVING AND INSTALLING/REPLACING TRUNK TRIM PANEL ON RIGHT SIDE PANEL .
Disconnect battery negative lead (1).
IMPORTANT:
Cover battery negative terminal post and secure negative lead (1) at side.
Tightening torque: 5 Nm
