65 77 680 Removing and installing (replacing) airbag control unit with gateway module
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION)
.
WARNING:
Note airbag SAFETY INSTRUCTIONS !
Incorrect handling can activate airbag and cause injury.
NOTE:
Comply with notes and instructions on HANDLING OPTICAL FIBERS
.
Necessary preliminary tasks:
- Disconnect BATTERY NEGATIVE LEAD and cover.
- Remove TRIM FOR INSTRUMENT PANEL at bottom right.

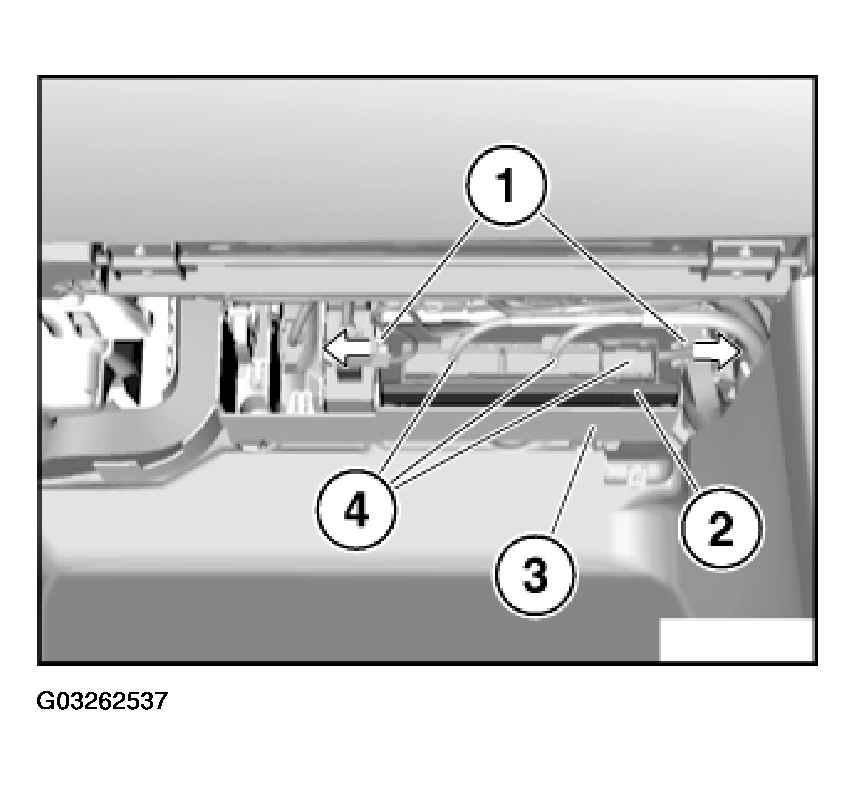

Unlock catches (1) in direction of arrow.
Pull airbag control unit with gateway module (2) out of equipment carrier (3) slightly.
Unlock plug connections (4) and disconnect.
Remove airbag control unit with gateway module (2).
Replacement:
Carry out PROGRAMMING/CODING .
