51 34 171 Replacing rear left or right door window

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Open door window to 345 mm.
Remove SOUND INSULATION in rear door..
Remove OUTER WINDOW CAVITY COVER STRIP .
Remove COVER ON DOOR WINDOW FRAME .
Remove TRIM ON REAR DOOR WINDOW FRAME .
Remove RUBBER GUIDE FOR REAR DOOR WINDOW GLASS .

Open door window glass (1) down to distance (A)

(A) = approx. 345 mm

Release screw (2).

Tightening torque: see 3AZ in 51 35 POWER WINDOWS, REAR .

Fig 1: Removing Door Window Glass

G03261673

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

Danger of locking in position!

Disconnect plug connection (1) at power window motor (2).

Fig 2: Disconnecting Plug Connection From Power Window Motor

G03261674

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out door window glass (1) towards top rear.

Installation:

Door window glass (1) does not need to be adjusted.

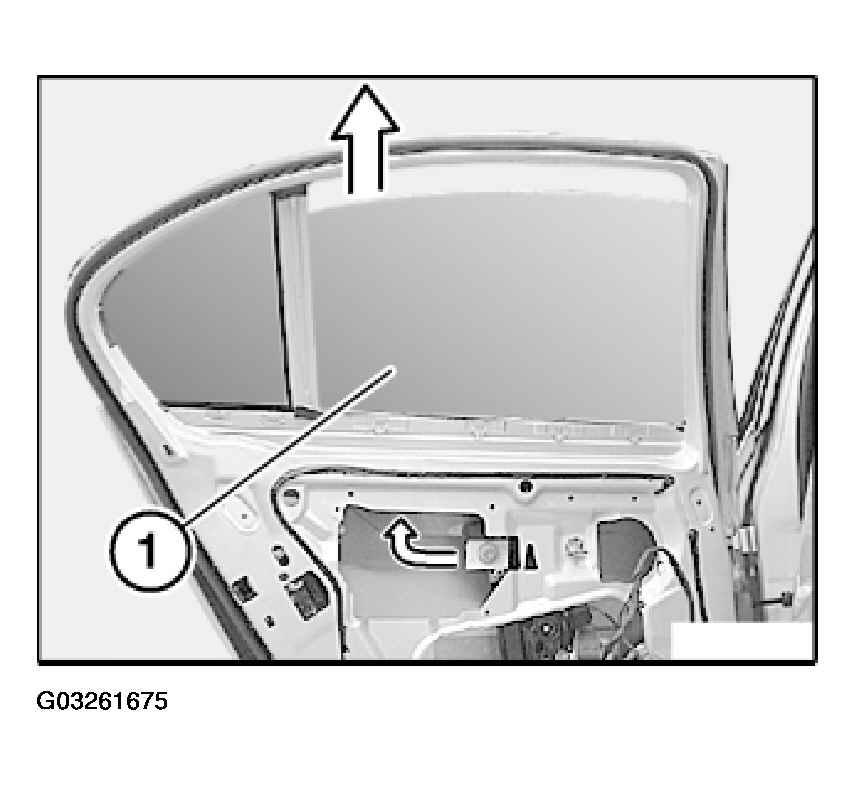

Fig 3: Removing Door Window Glass Towards Top Rear

G03261675

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Carry out function check (one-touch function, anti-trapping protection and, if necessary, comfort function).
