51 34... Removing and installing/replacing trim for window guide of left or right rear door

Necessary preliminary tasks:

All except Security version:

• Remove COVER ON INSIDE DOOR WINDOW FRAME  (rear door)

Security version:

• Remove ROLLER SUN BLIND  on fixed side window (rear door)

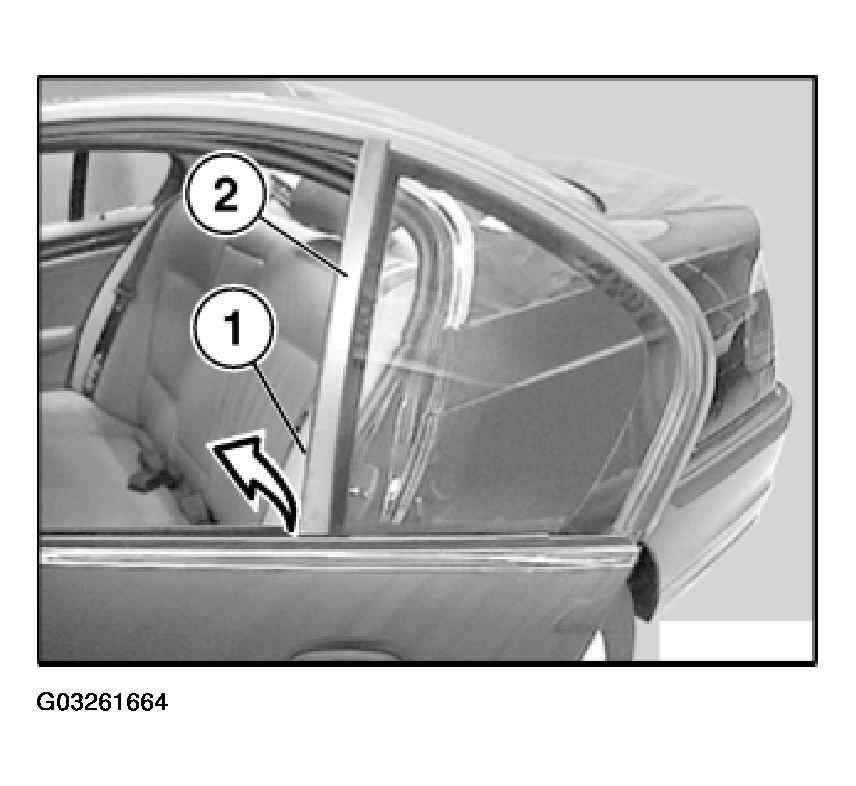

Pull rubber guide (1) out of trim (2).

Fig 1: Removing Rubber Guide Of Trim

Courtesy of BMW OF NORTH AMERICA, INC.

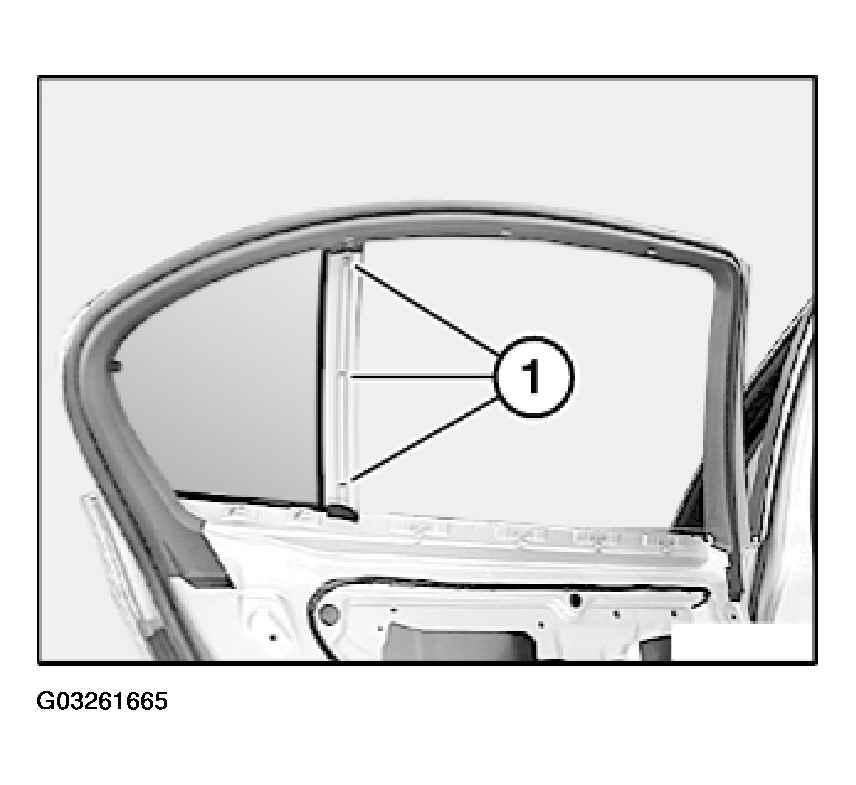

Grip trim firmly and release screws (1).

Fig 2: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

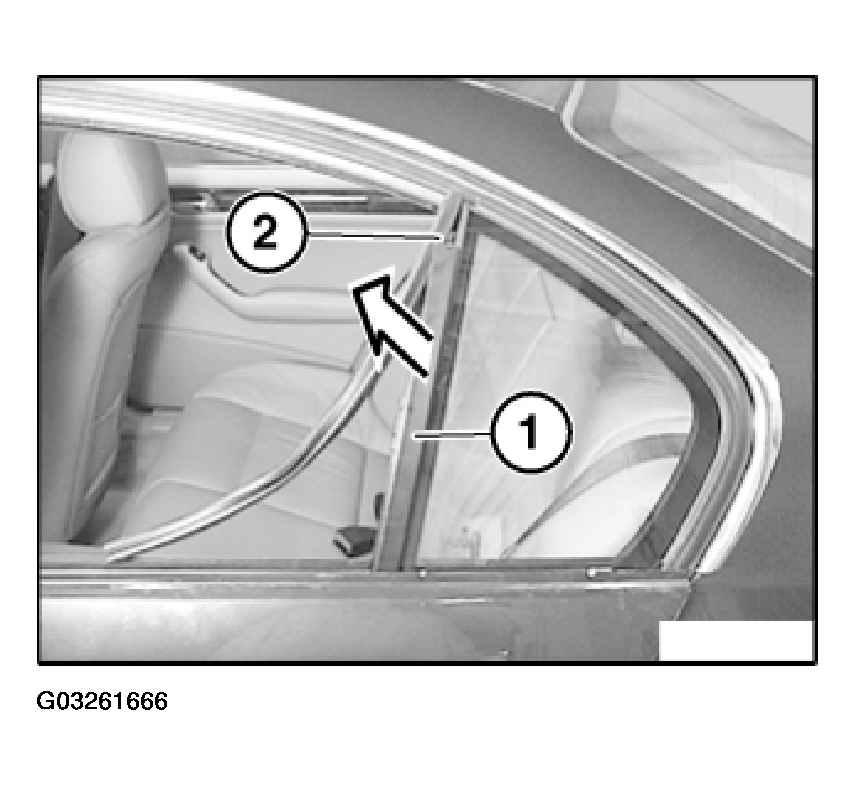

Push trim (1) downwards from rubber guide (2) and remove towards top.

Fig 3: Pushing Trim Downwards From Rubber Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

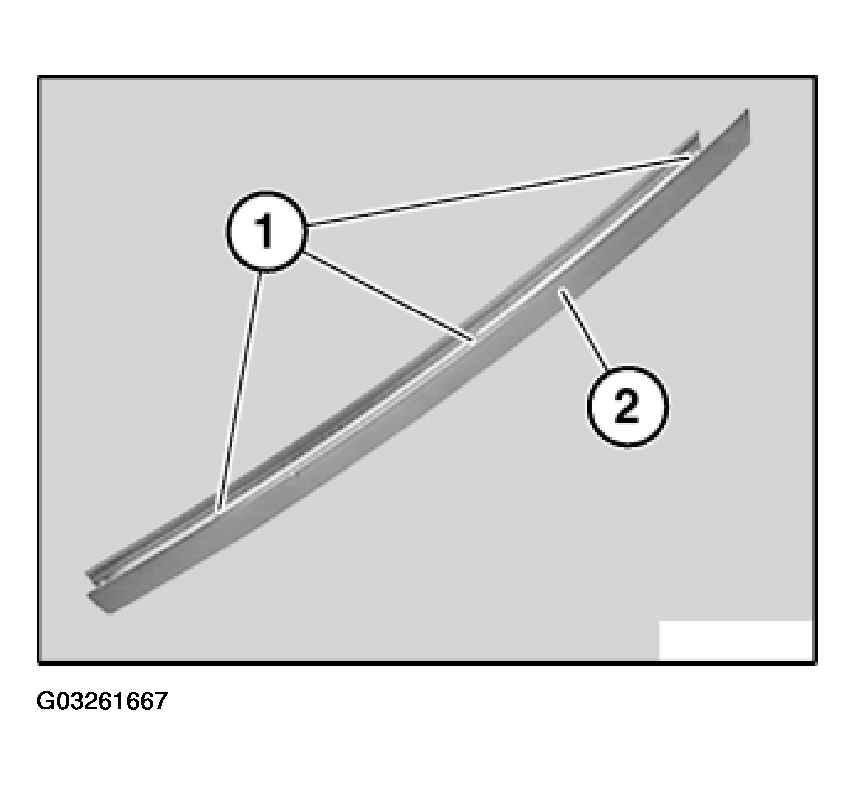

Threads (1) of trim (2) must not be damaged.

Fig 4: Identifying Threads Of Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

All except Security version:

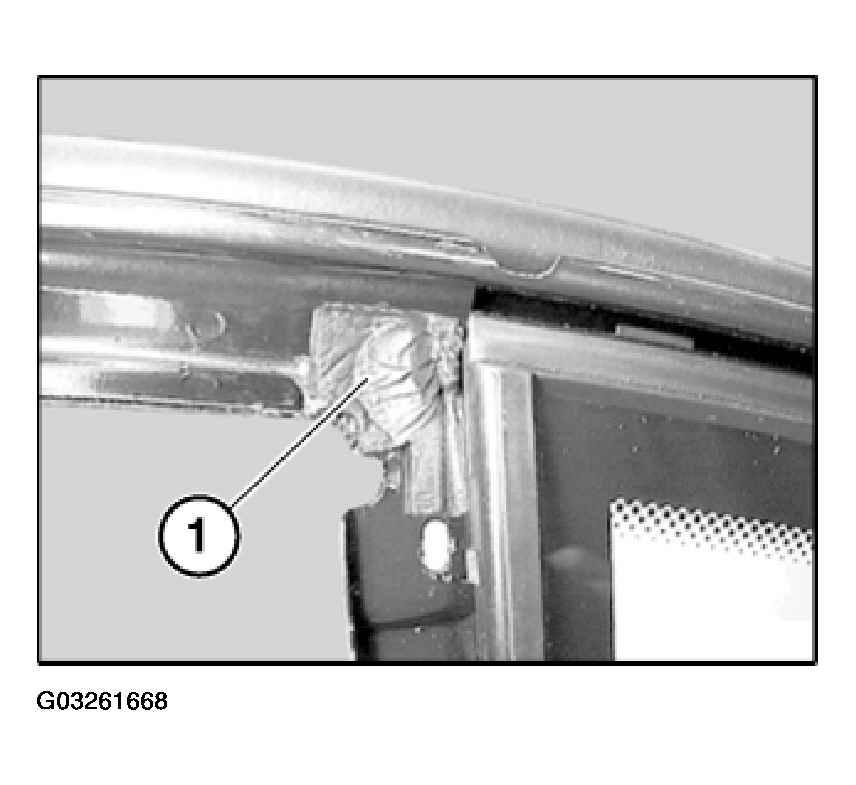

Foam section (1) must be fitted.

Fig 5: Installing Foam Section

Courtesy of BMW OF NORTH AMERICA, INC.
