51 34 211 Replacing rubber guide for rear left or right door window
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
All except Security version:
- Remove COVER ON INSIDE OF DOOR WINDOW FRAME .
- Remove OUTER WINDOW CAVITY COVER STRIP .
Security version:
- Remove DOOR WINDOW GLASS
- Replace PLASTIC COVER ON RUBBER GUIDE

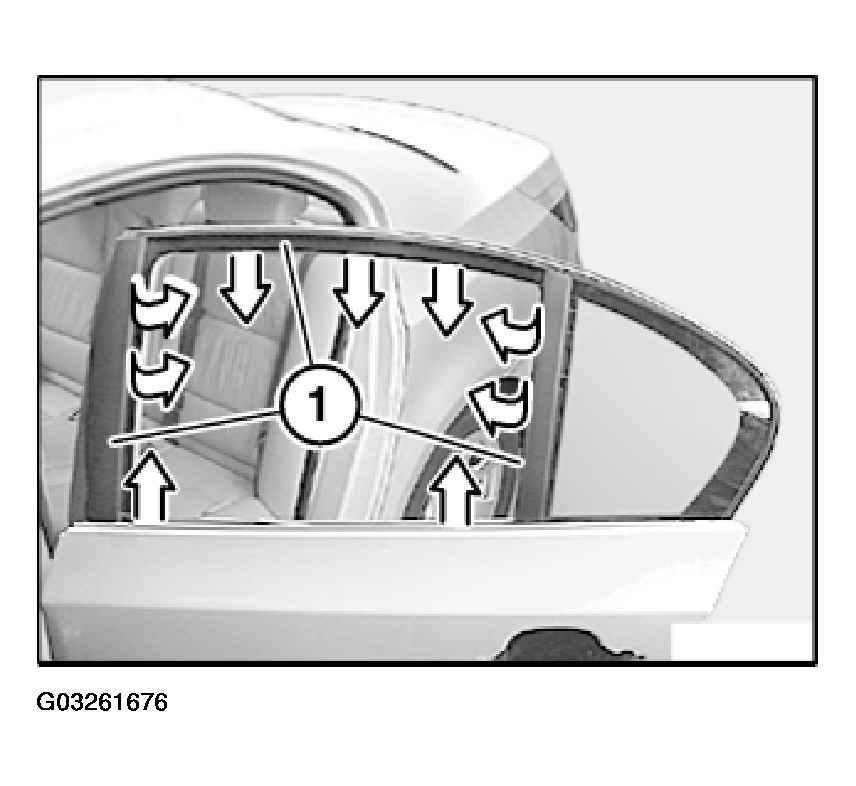

Lever out rubber guide (1) and remove upwards out of side window guides.
