51 34 160 Removing and installing/replacing housing cover on inner left or right door window frame

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Open door window.
Remove REAR DOOR TRIM PANEL .

Security version:

Cover is designed as armor plating and bonded to DOOR WINDOW FRAME , replacement is not possible.

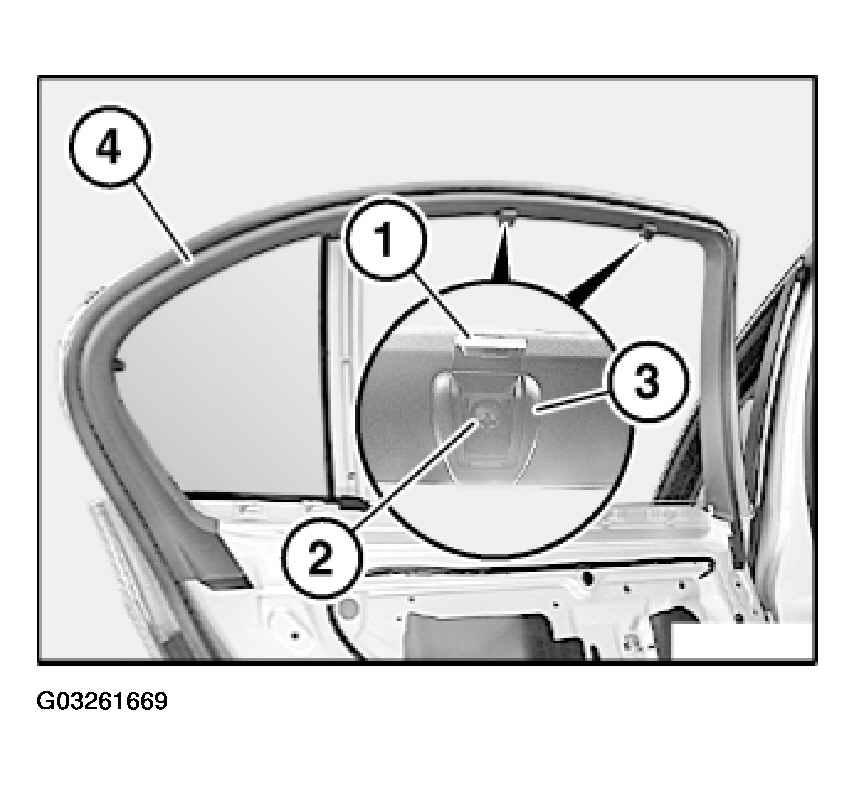

Version with roller sun blind on rear door:

If necessary, unclip cover (1) and release screw (2) underneath.

Remove hook (3) on cover (4).

Fig 1: Removing Hook On Cover

Courtesy of BMW OF NORTH AMERICA, INC.

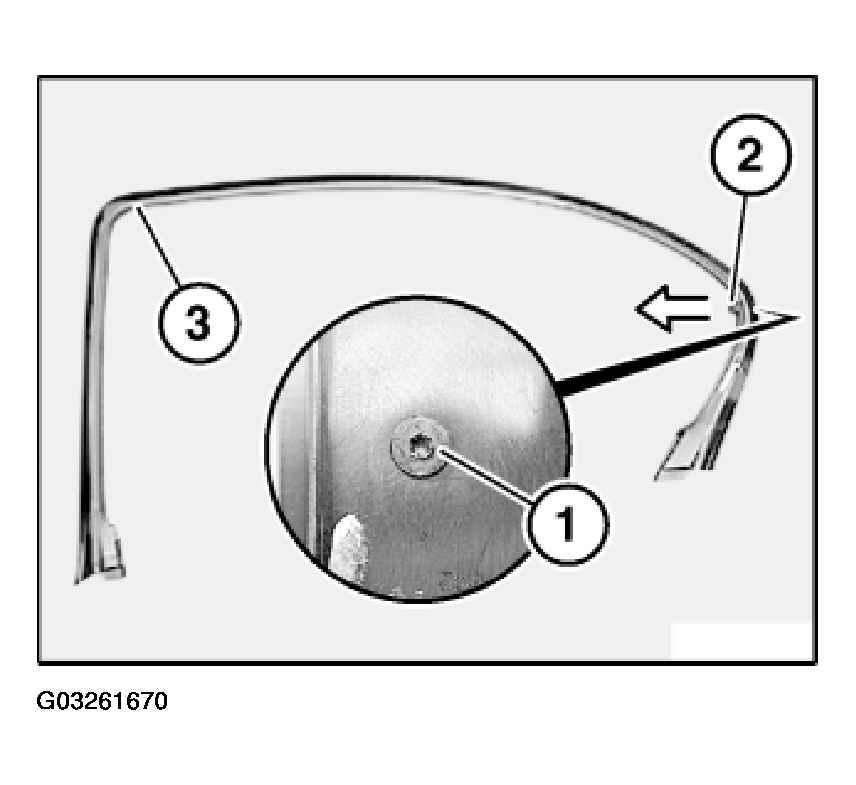

Replacement:

If necessary, release screw (1) on hook (2).

Remove hook (2) in direction of arrow from cover (4).

Fig 2: Removing Screw On Hook

Courtesy of BMW OF NORTH AMERICA, INC.

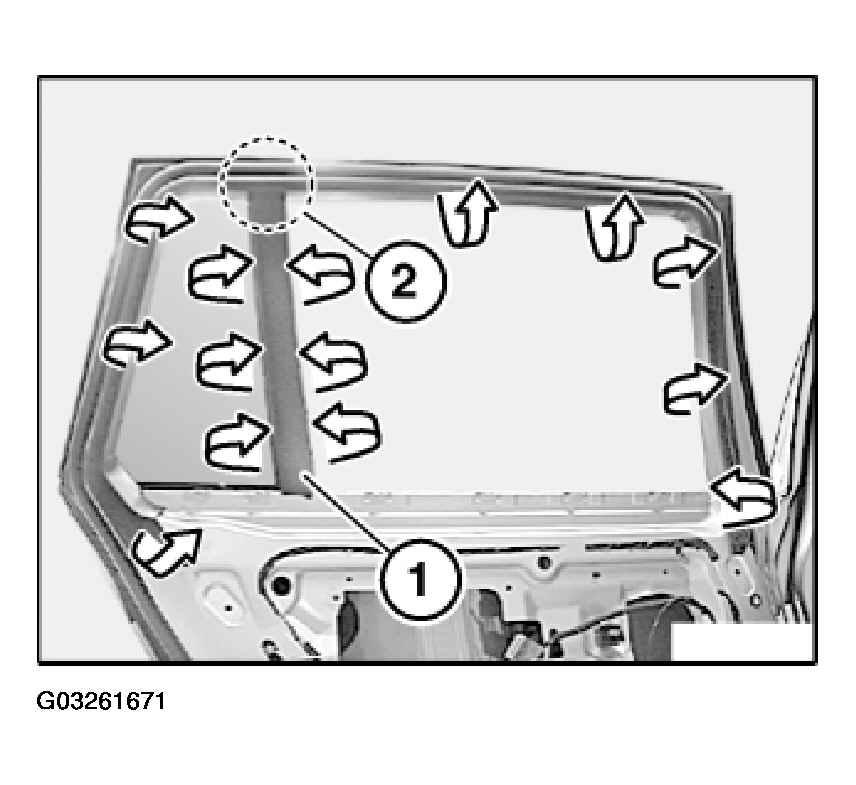

Version without roller sun blind:

If necessary, lever out cover (1) in direction of arrow.

NOTE:

Do not tear off cover (1) in area (2).

Fig 3: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

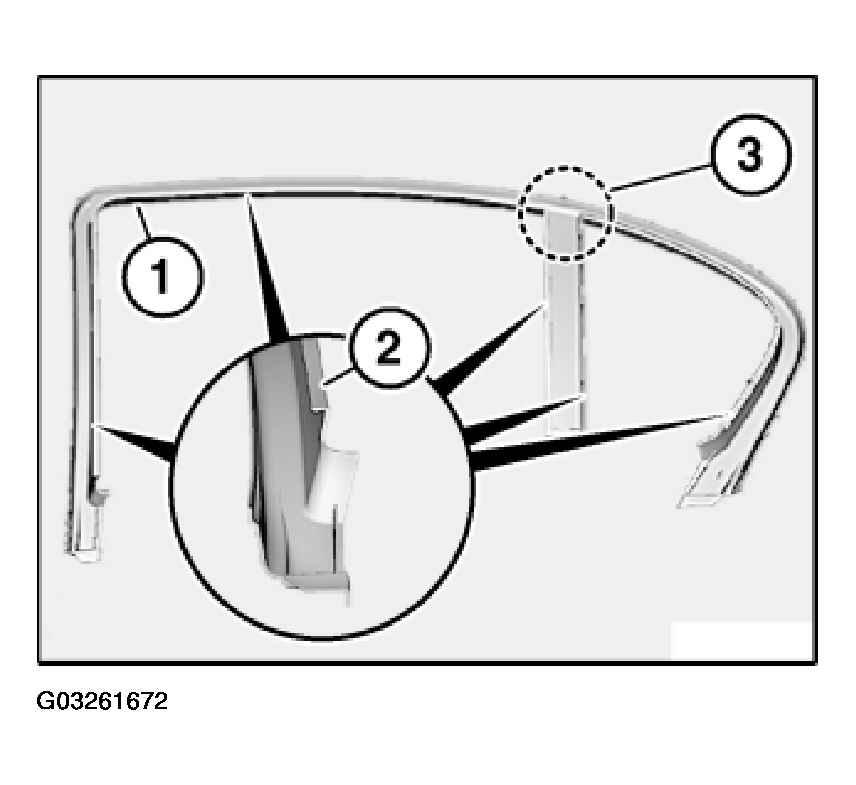

Installation:

Following parts of cover (1) must not be damaged:

2 All-round guide

3 Connection point

Fig 4: Identifying All-Round Guide (2) & Connection Point (3)

Courtesy of BMW OF NORTH AMERICA, INC.
