41 35... Removing And Installing Left Front Side Wall (Up To 03/2010)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Observe 41 00... BODY GAP DIMENSIONS

IMPORTANT: Do not damage adjoining body components.

Necessary preliminary work:

Remove FRONT BUMPER TRIM
Remove WHEEL ARCH COVER AT FRONT
Remove TRIM PANEL FOR ENTRANCE COVER
Remove COVER ON WHEEL ARCH
Remove gutter strip

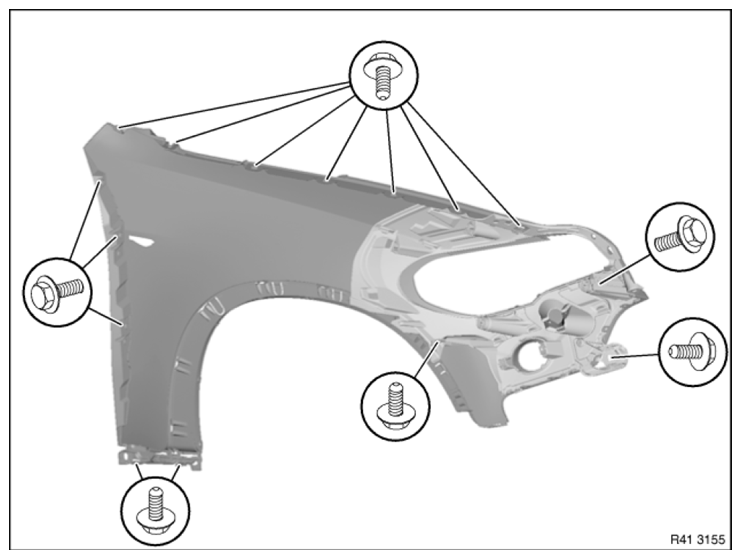

Fig 1: Identifying Front Side Wall Screws
Courtesy of BMW OF NORTH AMERICA, INC.

Interior view of front side wall

Release screws.

NOTE: Side wall and headlight are removed together.

Tightening torque 41 35 6AZ .

Tightening torque 41 35 7AZ .

Tightening torque 41 35 8AZ .

Tightening torque 41 35 9AZ .

Installation note:

Microencapsulated screws (Loctite) must be replaced and may not be reused
Screw connection must be completed within 20 minutes. (after which hardening begins)
Microencapsulated screws must not be retightened.
Thread of nut must be cleaned beforehand in event of repeated use.

Pull out clamp (1) in direction of arrow.

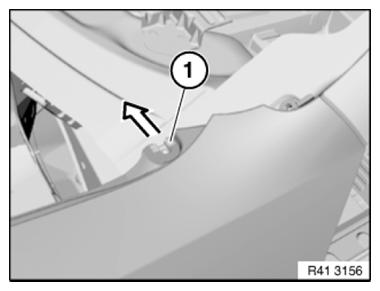

Fig 2: Pulling Clamp

G08528705

Courtesy of BMW OF NORTH AMERICA, INC.

Detach connector (1) on headlight.

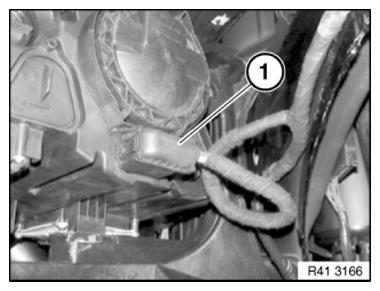

Fig 3: Identifying Headlight Connector

G08528706

Courtesy of BMW OF NORTH AMERICA, INC.

For vehicles with auxiliary oil cooler only:

Lever out retaining clip (1) at bottom and detach towards rear.

Remove oil cooler and tie back.

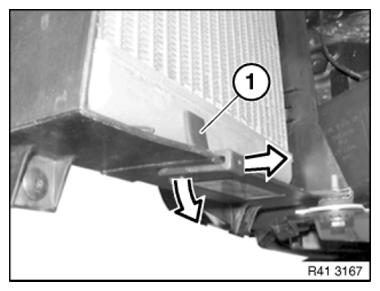

Fig 4: Removing Auxiliary Oil Cooler Retaining Clip

G08528707

Courtesy of BMW OF NORTH AMERICA, INC.

Detach connector (1) on fog light.

For vehicles with auxiliary oil cooler only:

Remove cable grommet in holding frame for oil cooler.

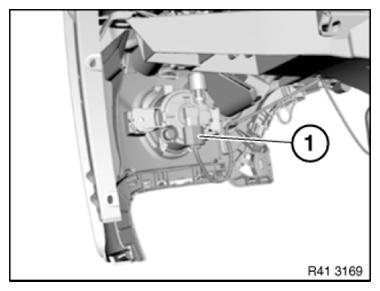

Fig 5: Identifying Fog Light Connector

G08528708

Courtesy of BMW OF NORTH AMERICA, INC.

For vehicles with auxiliary oil cooler only:

Release screw (1).

Tightening torque 17 22 5AZ.

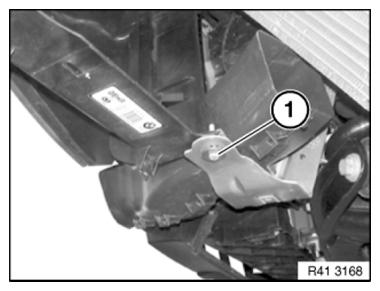

Fig 6: Identifying Auxiliary Oil Cooler Screw

G08528709

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

For vehicles with auxiliary oil cooler only:

Release screws (2) and remove holding frame for oil cooler.

Tightening torque 17 22 5AZ.

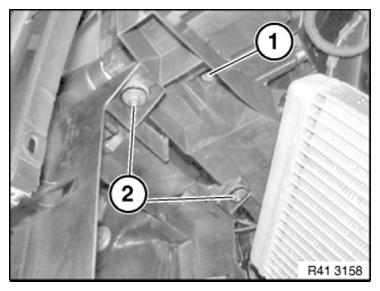

Fig 7: Identifying Holding Frame Screws

G08528710

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen bolt (1).

NOTE: Poor screw accessibility.

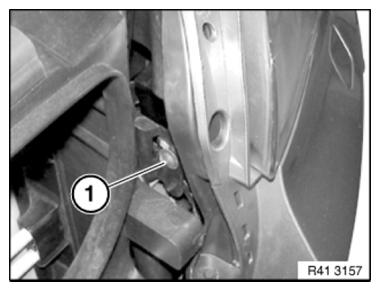

Fig 8: Identifying Holding Frame Bolt

G08528711

Courtesy of BMW OF NORTH AMERICA, INC.

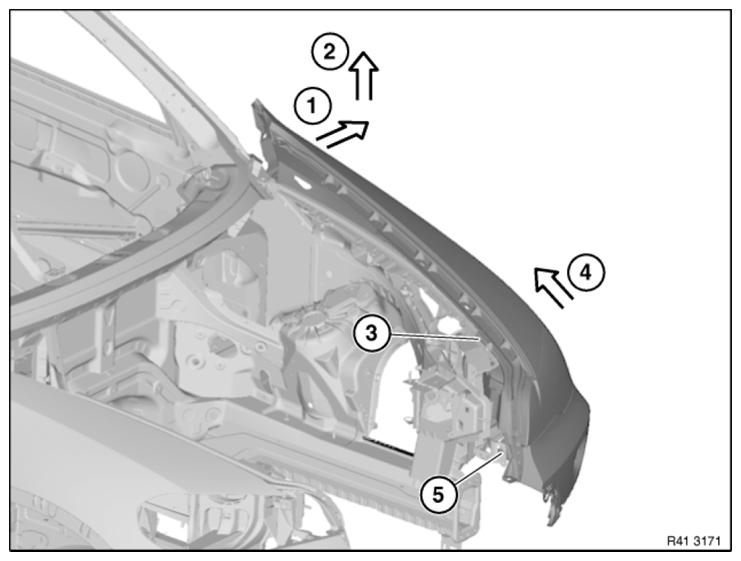

Fig 9: Sliding Side Wall From Rear Module Carrier

G08528712

Courtesy of BMW OF NORTH AMERICA, INC.

Close front door.

Pull side wall in area of A-pillar outwards (1) until bolting points are exposed.

Pull side wall upwards (2) until plastic guide (3) is exposed.

Slide side wall towards rear (4) and feed screw (5) out of module carrier.

Installation note:

Feed in washer of screw (5) with a small screwdriver.

Installation note:

Following parts must not be damaged or missing:

Spacer buffers (1)

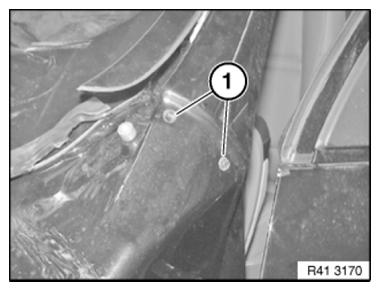

Fig 10: Identifying Spacer Buffers
