51 71 470 Removing and installing/replacing trim on front left or right wheel arch

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 2 230

NOTE: The operation is described on the left side; proceed in the same way for the right side.

Release blind rivets (1).

Unclip trim (2) outwards.

Installation:

Make sure trim (2) is correctly seated on underside protection and frame side member.

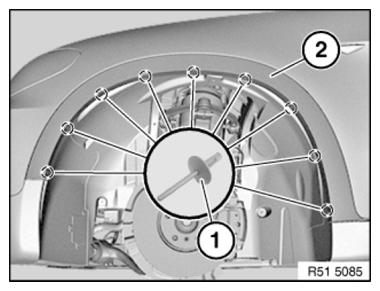

Fig 1: Identifying Blind Rivets And Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Apply blind rivets with special tool 00 2 230 . Catches (1) on trim (2) must not be damaged.

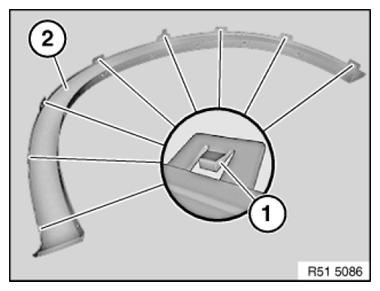

Fig 2: Identifying Catches And Trim
