51 11 156 Removing and installing front bumper trim (up to 03/2010)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of mixing up
Different screws fitted.

Release screws (1).

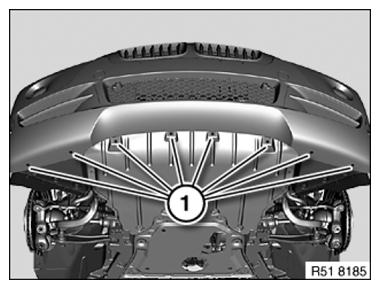

Fig 1: Identifying Front Bumper Trim Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

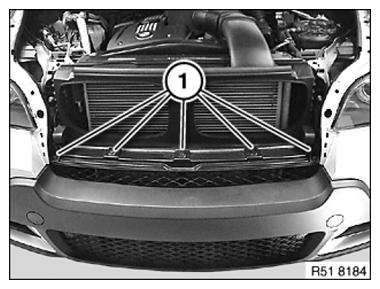

Fig 2: Identifying Front Bumper Trim Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1) on the right and left of the wheel arch cover (2).

Installation note:

Make sure wheel arch cover (2) is in correct position.

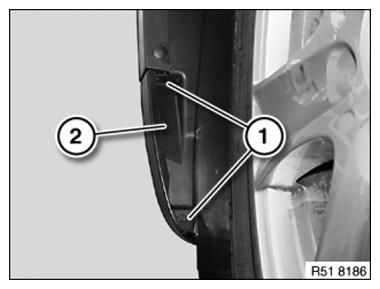

Fig 3: Identifying Wheel Arch Cover And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip bumper trim (1) at side of latch mechanism (2).

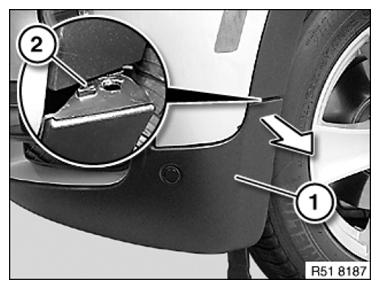

Fig 4: Removing Bumper Trim From Latch Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not damage bumper trim when pulling off.

Loosen the bumper trim (1) at the latch mechanisms (2).

Pull bumper trim (1) with a second person helping towards front slightly, (if necessary, disconnect the plug connection for Park Distance Control (PDC) in area (3).

If necessary, disconnect the plug connection for the SIDE VIEW camera left and right).

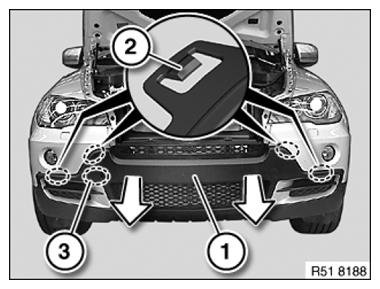

Fig 5: Pulling Bumper Trim From Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bumper trim (1) towards front with aid of a 2nd person.

Installation note:

Height adjustment, refer to 41 00... BODY GAP DIMENSIONS .
