51 71 447 Removing and installing or replacing panel for cover on left or right side member

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

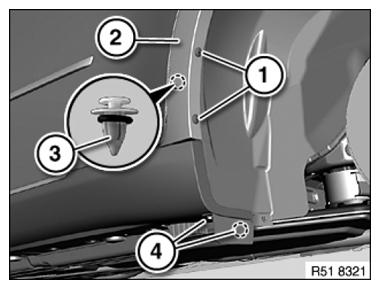

Release expander rivets (1) on wheel arch trim at rear.

Detach trim (2) at clip (3).

Release screws (4).

Installation:

Replace expander rivets (1).

If necessary, replace faulty clip (3).

Fig 1: Identifying Expander Rivets, Trim, Clip And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

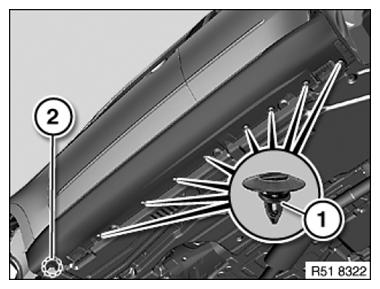

Release clips (1) and screw (2).

Installation:

If necessary, replace faulty clips (1).

Fit clips (1) with O-rings.

Fig 2: Identifying Clips And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

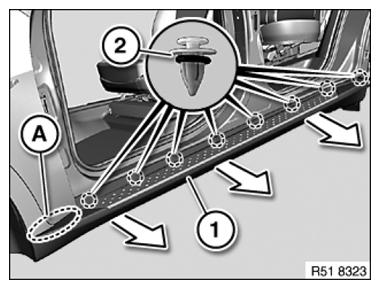

Unclip panel (1) in area (A).

Open doors, detach panel (1) at clips (2) and remove in direction of arrow.

Installation:

If necessary, replace faulty clips (2).

Fit clips (2) with O-rings.

Fig 3: Disconnecting Panel At Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

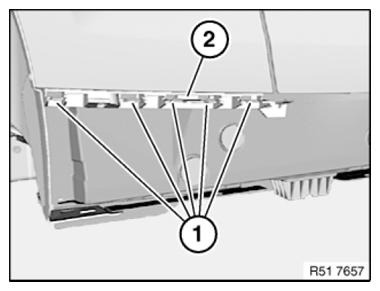

Catches (1) on holder (2) must not be damaged.

Fig 4: Identifying Catches And Holder

Courtesy of BMW OF NORTH AMERICA, INC.
