41 62 043 Removing And Installing/Replacing Left Or Right Hinge For Rear Lid

Read contents of, see BODY, GENERAL .

Necessary preliminary tasks:

NOTE: Rear window shelf has been blanked out for purposes of clarity.

Release screw connections (1) on vehicle.

Remove hinge.

Installation:

Adjust rear lid on the basis of the, see BODY GAP DIMENSIONS .

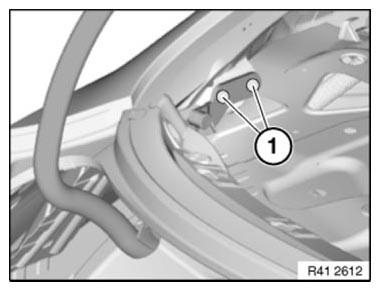

Fig 1: Rear Lid Hinge With Screw

Courtesy of BMW OF NORTH AMERICA, INC.
