41 00... Body Gap Dimensions

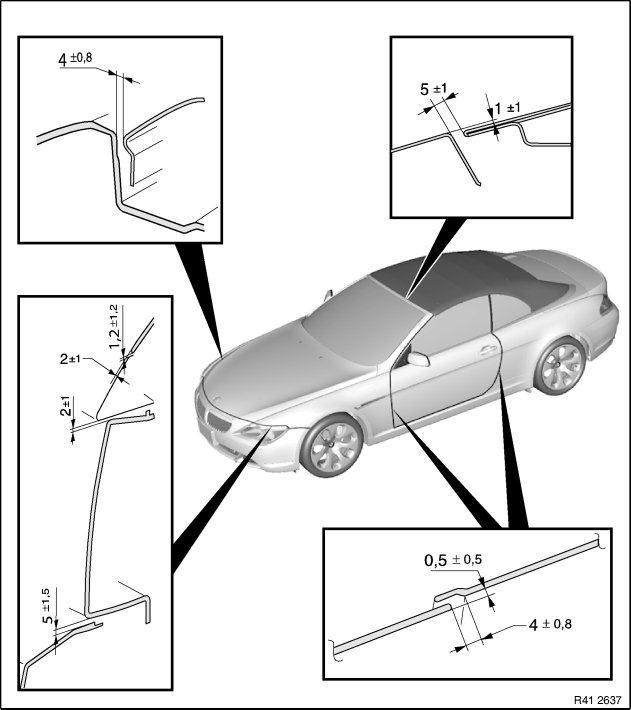

Fig 1: Front Fender, Hood, Headlamps, Moonroof, Front Door And Quarter Panel Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

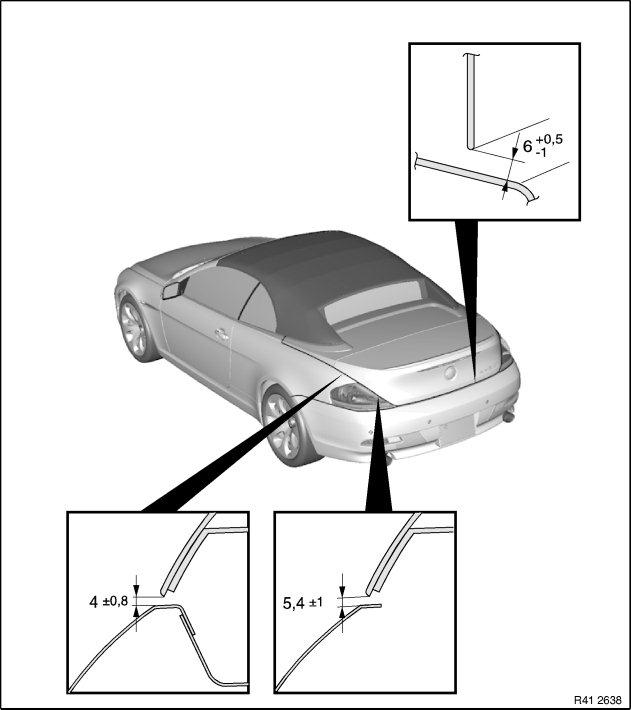

Fig 2: Quarter Panel, Rear Bumper, Trunk Lid And Taillamps Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

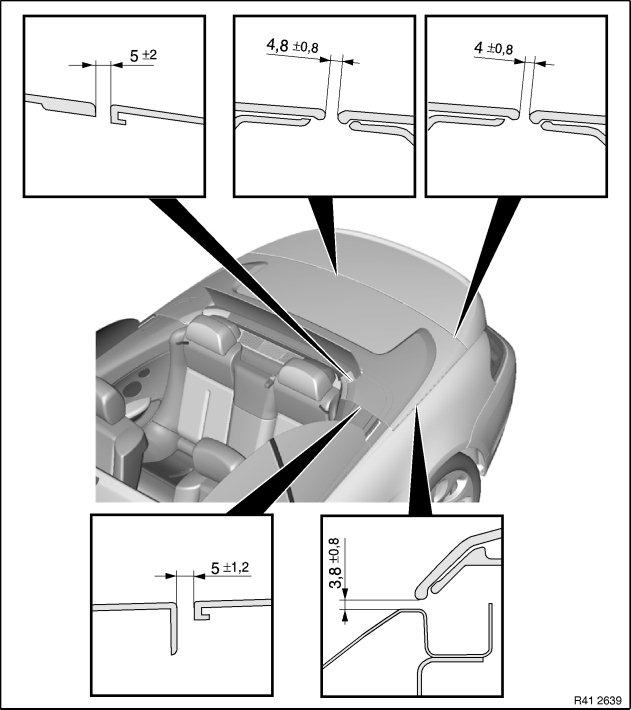

Fig 3: Convertible Top Lid, Trunk Lid And Quarter Panel Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.
