54 12 190 Removing And Installing/Replacing Stop For Glass Slide/Tilt Sunroof

Necessary preliminary tasks:

• Remove glass slide/tilt sunroof lid  . Refer to 54 12 115 Removing And Installing Glass Slide/Tilt Sunroof Lid .
• Remove rain gutter  . Refer to 54 12 138 Removing And Installing/Replacing Rain Gutter For Glass Slide/Tilt Sunroof .
• Remove wind deflector  . Refer to 54 12 497 Removing And Installing/Replacing Wind Deflector For Glass Slide/Tilt Sunroof .

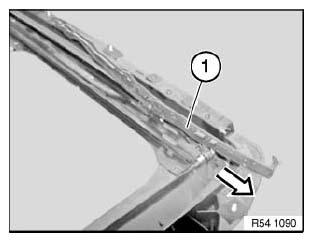

Lever out garage stop (1) with a screwdriver.

Fig 1: Identifying Garage Stop

Courtesy of BMW OF NORTH AMERICA, INC.

Advance connecting element (1) over opening.

Fig 2: Identifying Connecting Element

Courtesy of BMW OF NORTH AMERICA, INC.

Slide carriage (1) for rain gutter forwards up to opening and lever out.

Fig 3: Sliding Carriage For Rain Gutter

Courtesy of BMW OF NORTH AMERICA, INC.
