54 12 497 Removing And Installing/Replacing Wind Deflector For Glass Slide/Tilt Sunroof

WARNING: This page is about a different variant/trim than selected.

Open glass slide/tilt sunroof.

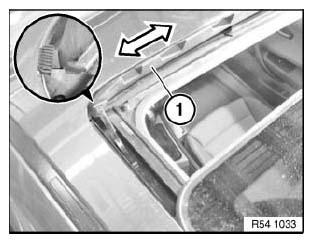

Carefully unhook wind deflector (1) on left and right.

Fig 1: Identifying Unhook Wind Deflector

Courtesy of BMW OF NORTH AMERICA, INC.

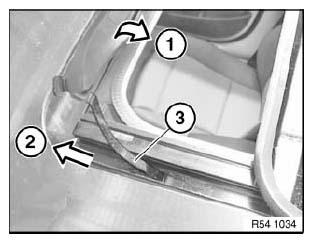

Lift wind deflector in direction of arrow (1).

Pull positioning spring (3) on left and right in direction of arrow (2) out of casing.

Installation:

Pay attention to existing rubber stops.

Position wind deflector with rubber stops under roof outer skin.

Fig 2: Pulling Positioning Spring

Courtesy of BMW OF NORTH AMERICA, INC.
