54 12 138 Removing And Installing/Replacing Rain Gutter For Glass Slide/Tilt Sunroof

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

NOTE: If activating the function when removed:

It is essential to ensure that the slide of rain gutter (1) is situated ahead of connecting element (2).
If the slide of rain gutter (1) is situated below the connecting element, this will result in a collision and damage.

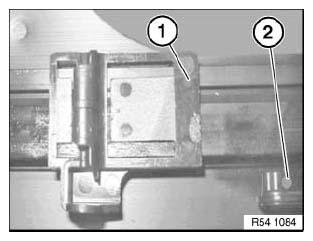

Fig 1: Identifying Rain Gutter & Element
Courtesy of BMW OF NORTH AMERICA, INC.

Lever connecting element (2) on left and right out of rain gutter linkage (1).

Installation:

Linkage must be felt to snap into place in connecting element.

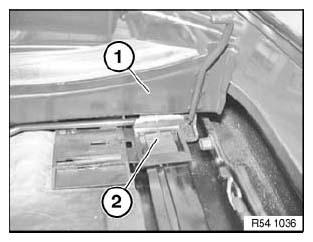

Fig 2: Identifying Connecting Element & Rain Gutter Linkage

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip linkage of rain gutter (1) on left and right out of connecting element slide (2) towards rear.

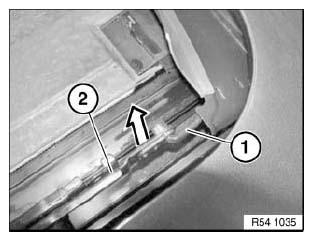

Fig 3: Identifying Rain Gutter & Element Slide

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Carry out function check only with rain gutter fitted (risk of damage).
