54 12 170 Removing And Installing/Replacing Connecting Element Pair For Glass Slide/Tilt Sunroof

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

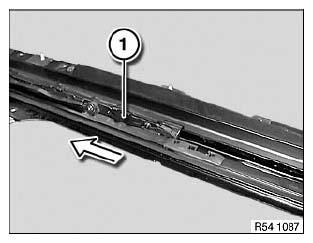

Slide connecting element (1) back.

Fig 1: Sliding Connecting Element

Courtesy of BMW OF NORTH AMERICA, INC.

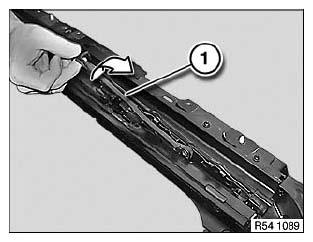

Lever out garage stop (1) with a screwdriver.

Fig 2: Identifying Garage Stop

Courtesy of BMW OF NORTH AMERICA, INC.

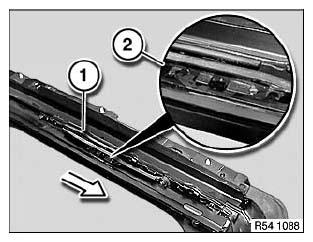

Advance connecting element (1) up to opening (2).

Fig 3: Identifying Connecting Element

Courtesy of BMW OF NORTH AMERICA, INC.

Lever control lever (1) out of guide rail and turn.

Fig 4: Identifying Lever Control Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Advance connecting element (1) up to end fitting.

Raise connecting element (1) and slide forwards out of guide.

Feed connecting element (1) out of carriage.

Fig 5: Identifying Connecting Element

Courtesy of BMW OF NORTH AMERICA, INC.

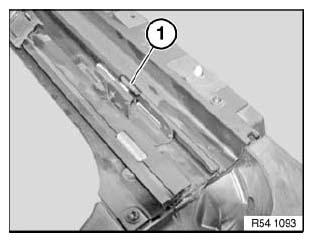

Carriage (1) for connecting element in guide rail.

Fig 6: Identifying Carriage For Connecting Element In Guide Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Keep to sequence of installation.

If necessary, move carriage towards rear slightly.

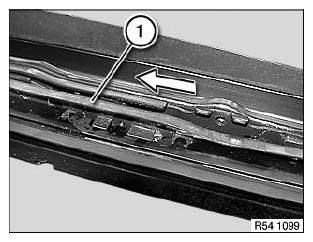

Insert connecting element (1) into guide rail.

Fig 7: Inserting Connecting Element Into Guide Rail

Courtesy of BMW OF NORTH AMERICA, INC.

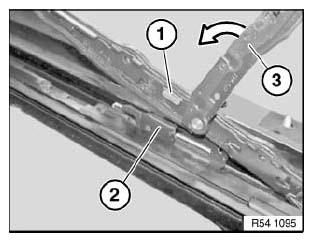

Engage connecting element (1) in carriage (2).

Turn control lever (3).

Fig 8: Identifying Connecting Element & Carriage

Courtesy of BMW OF NORTH AMERICA, INC.

Insert control lever (1) in opening.

Fig 9: Inserting Control Lever

Courtesy of BMW OF NORTH AMERICA, INC.

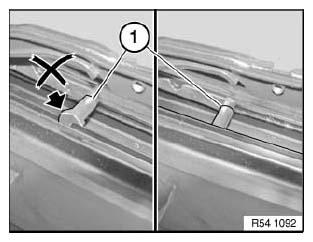

NOTE: Spacer (1) of control lever must be situated in guide channel.

Move connecting element towards rear.

Clip in garage.

Assemble glass slide/tilt sunroof and carry out function check.

Fig 10: Identifying Spacer

Courtesy of BMW OF NORTH AMERICA, INC.
