51 45 030 Removing and installing trim for instrument panel (lower section)

If necessary, remove and install complete on-board monitor, refer to 65 52 510 REMOVING AND INSTALLING ON-BOARD MONITOR .

Unclip shock absorber and catch band.

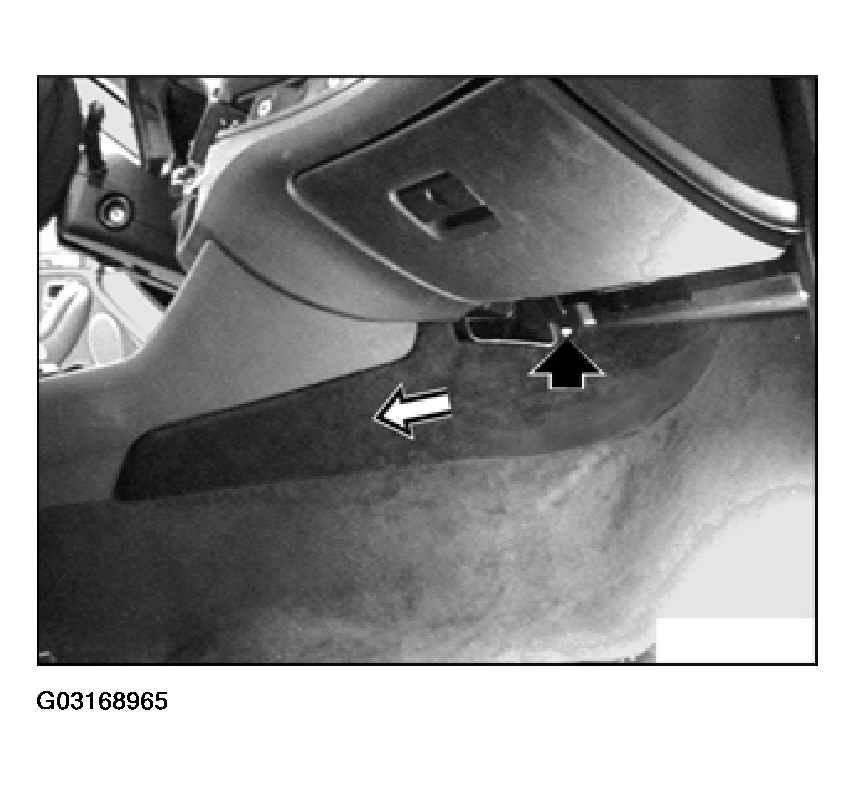

Fig 1: Unclipping Shock Absorber And Catch Band

Courtesy of BMW OF NORTH AMERICA, INC.

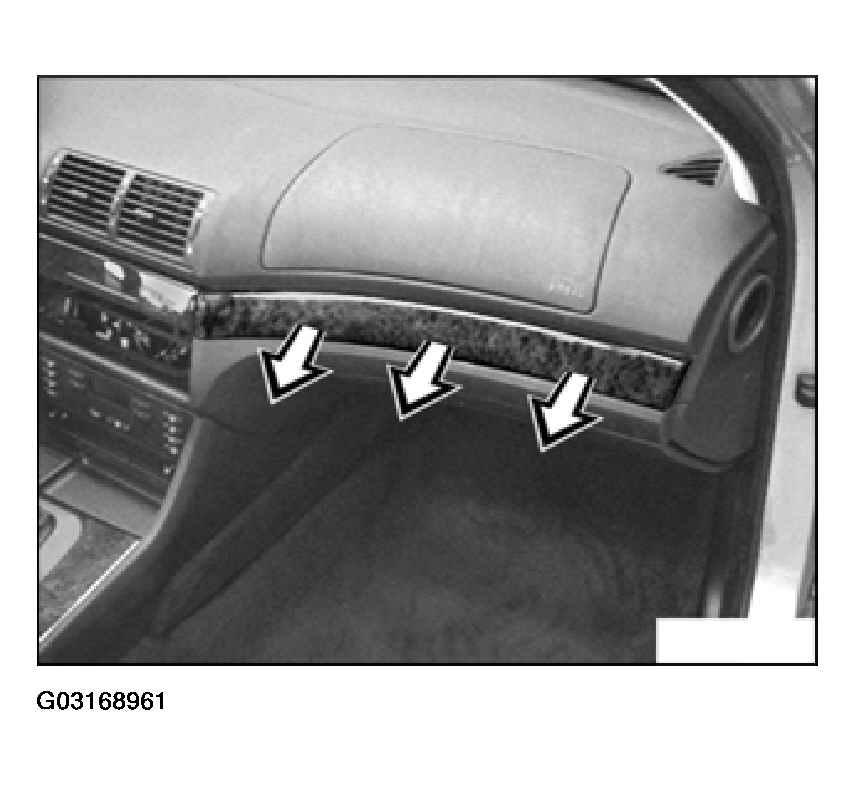

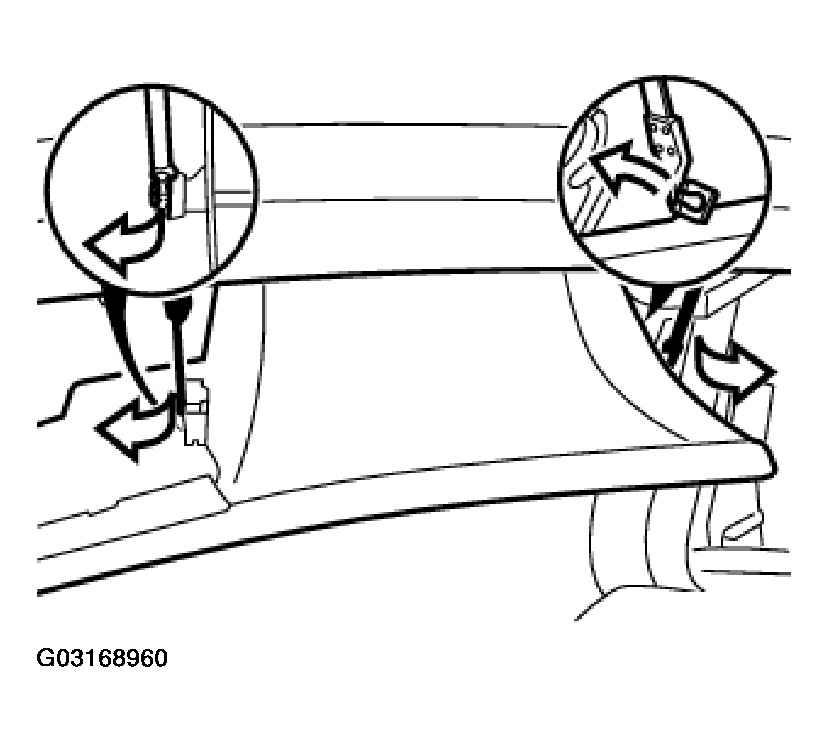

Unclip wooden finisher strip.

Fig 2: Unclipping Wooden Finisher Strip

Courtesy of BMW OF NORTH AMERICA, INC.

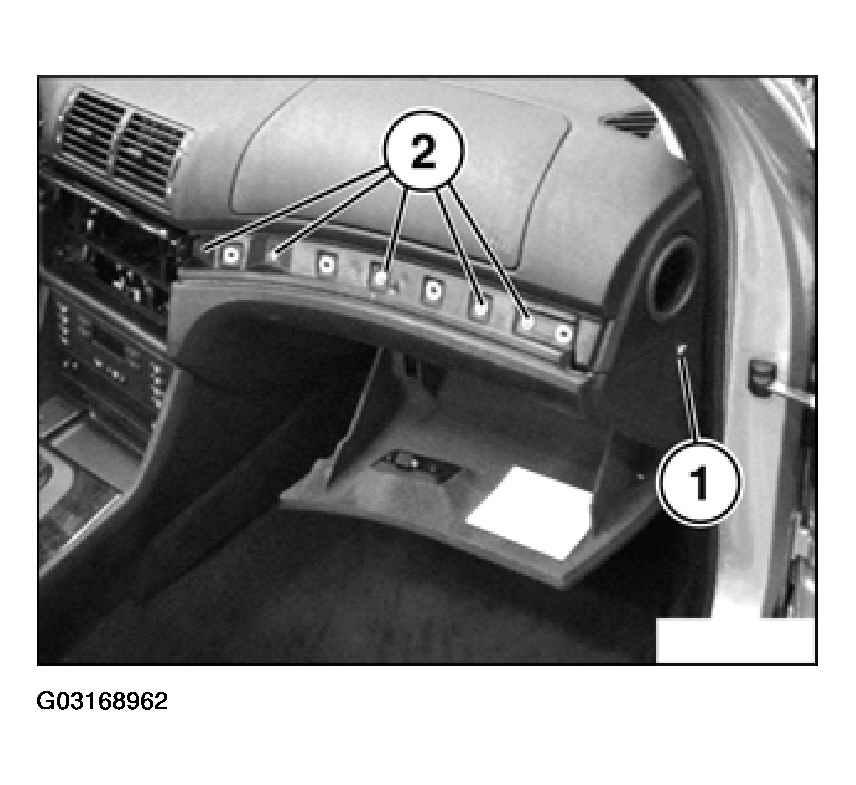

Lift off outer cap (1) and unfasten screw. Unfasten screws (2).

Fig 3: Lifting Off Outer Cap

Courtesy of BMW OF NORTH AMERICA, INC.

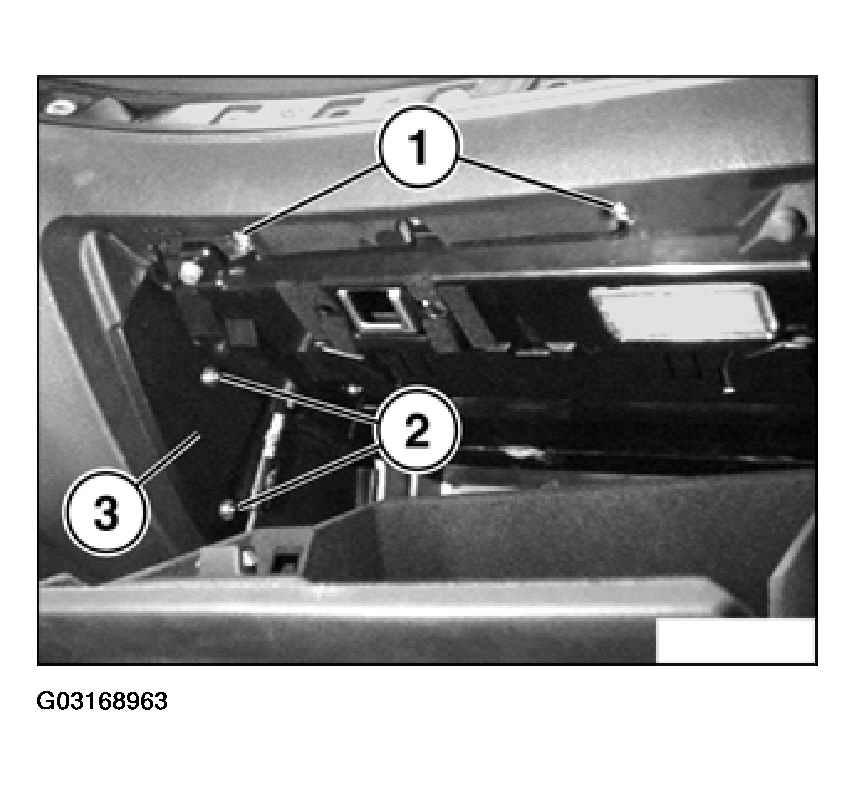

Remove screws (1 and 2).

Remove finisher strip (3).

Fig 4: Removing Finisher Strip

Courtesy of BMW OF NORTH AMERICA, INC.

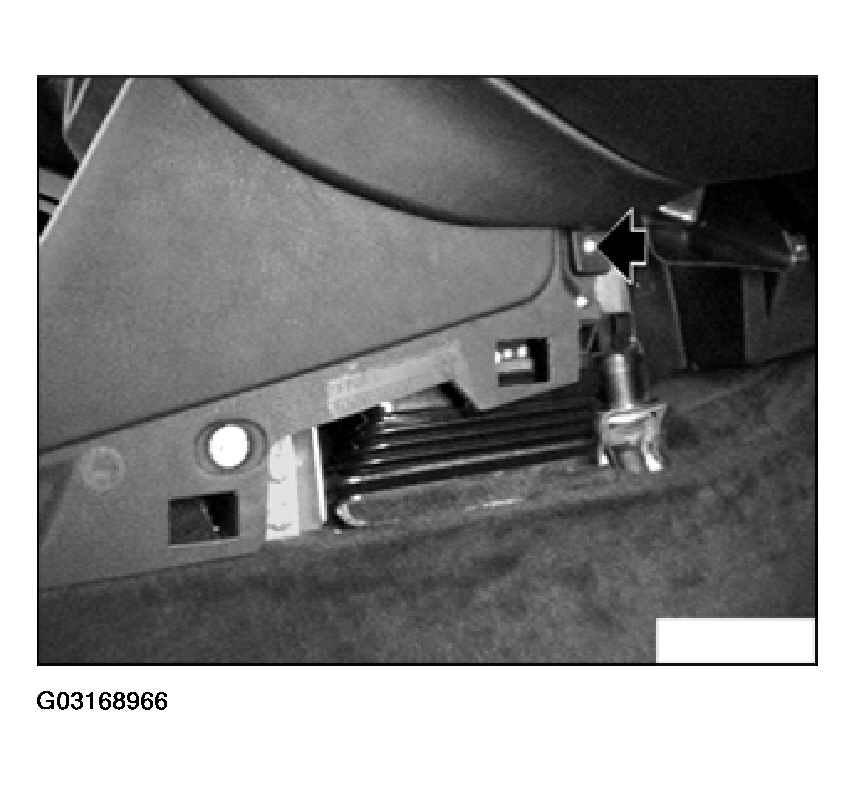

Unscrew screw.

Fig 5: Unfastening Screw From Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

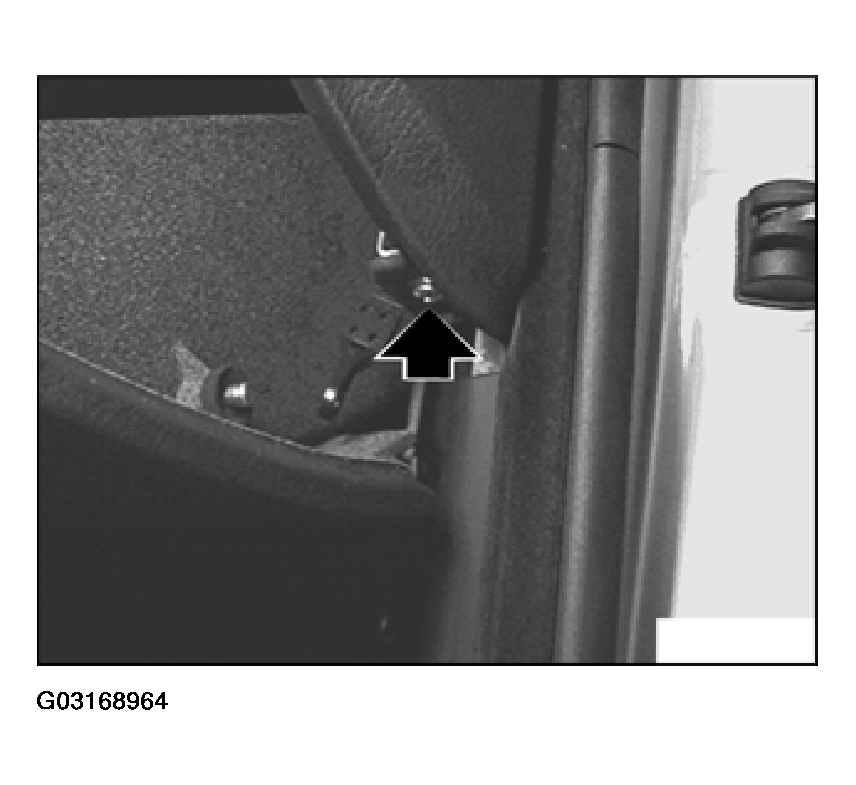

Unfasten screw and lift trim panel backwards to remove.

Fig 6: Unfastening Screw And Lifting Trim Panel Backwards

Courtesy of BMW OF NORTH AMERICA, INC.

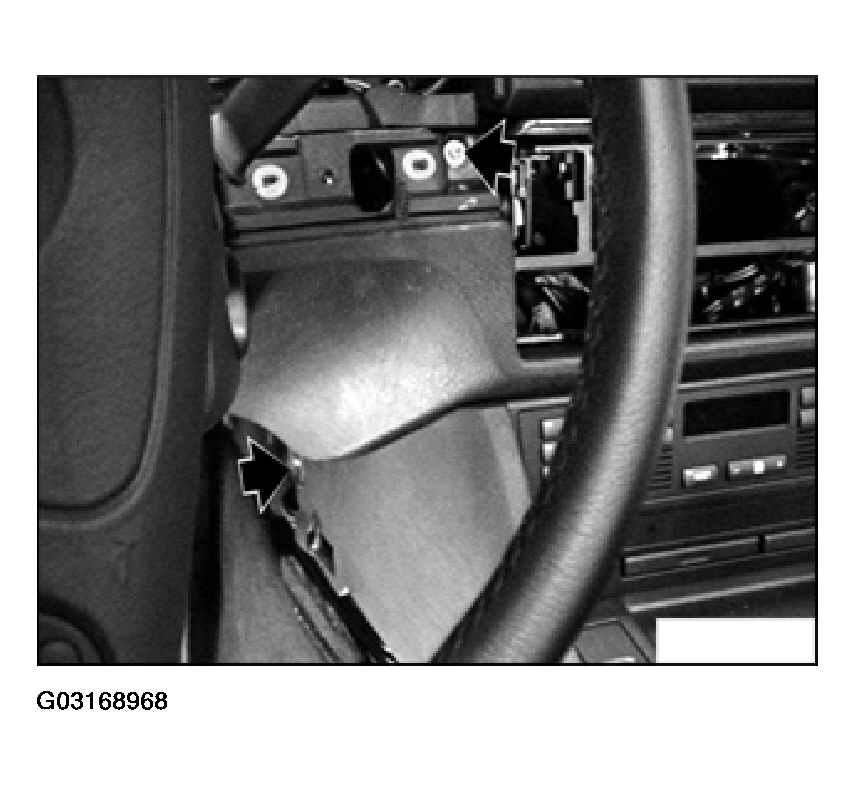

Unscrew screw.

Fig 7: Removing Screw From Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screw and lift trim panel backwards to remove.

Fig 8: Unfastening Screw And Lifting Trim Panel Backwards

Courtesy of BMW OF NORTH AMERICA, INC.

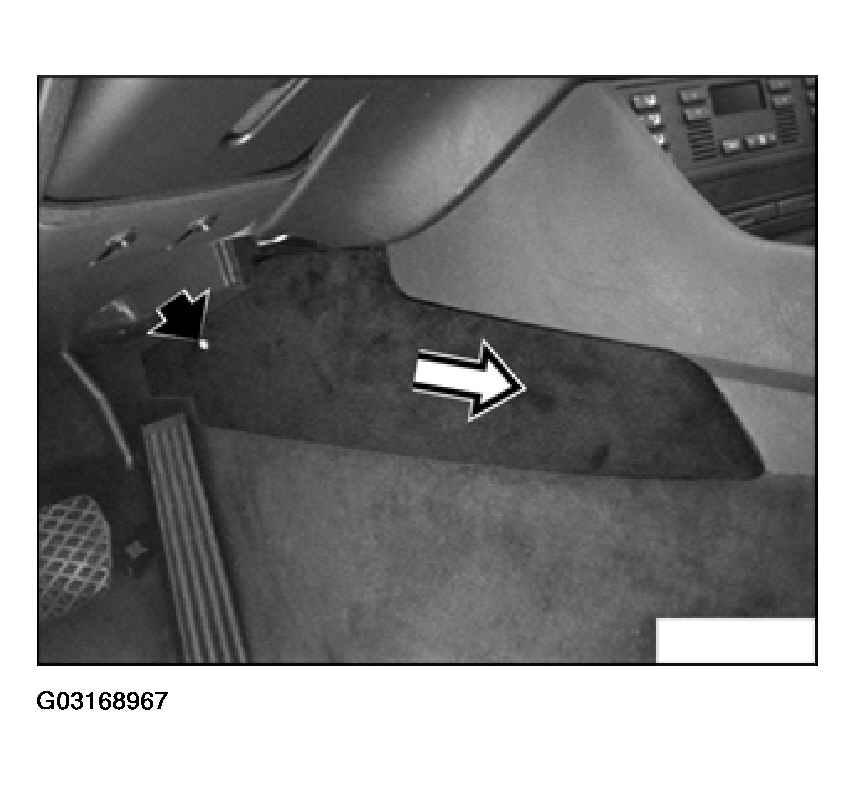

Unfasten screws.

Fig 9: Removing Screws From Panel

Courtesy of BMW OF NORTH AMERICA, INC.

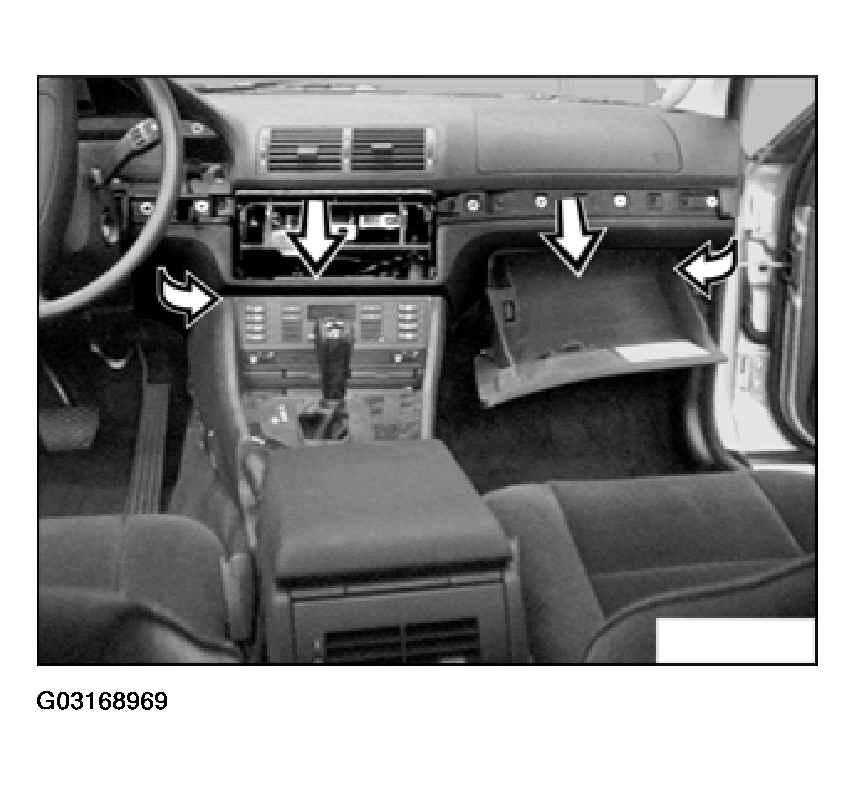

Lever out instrument panel lower section at bottom, pull out towards rear and lift out to right front door.
