62 21 000 Removing and installing complete instrument carrier

Move steering column completely down and extend fully.

Unclip left and right wooden finisher strips.

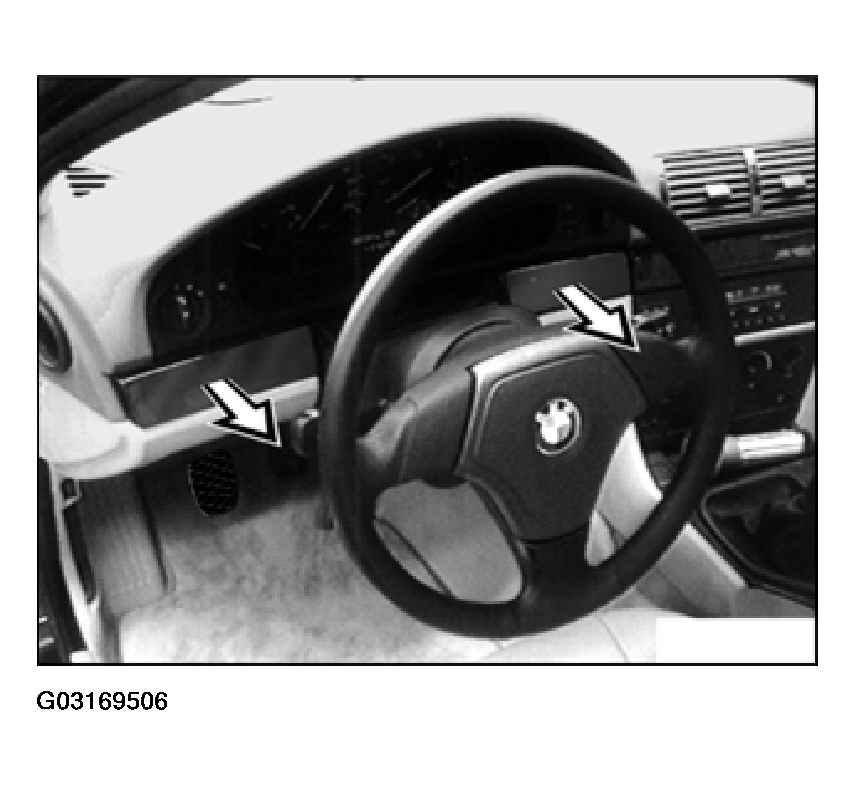

Fig 1: Unclipping Left And Right Wooden Finisher Strips

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and unclip frame.

Fig 2: Unfastening Screws And Unclipping Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and fold instrument carrier forwards.

Fig 3: Unfastening Screws And Folding Instrument Carrier Forwards

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off connectors.

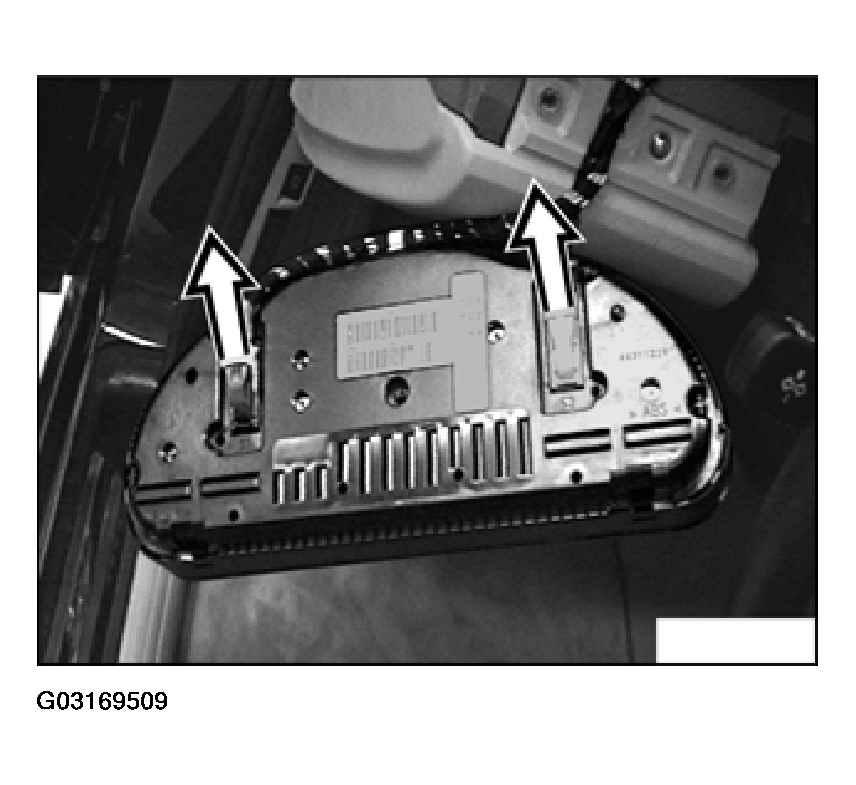

Fig 4: Pulling Off Connectors

Courtesy of BMW OF NORTH AMERICA, INC.
