65 11 030 Removing and installing / replacing radio receiver

NOTE:

For Special Tool identification, see SPECIAL TOOLS - Z3 .

Special Tools Required:

Radio Without MID Or IRIS:

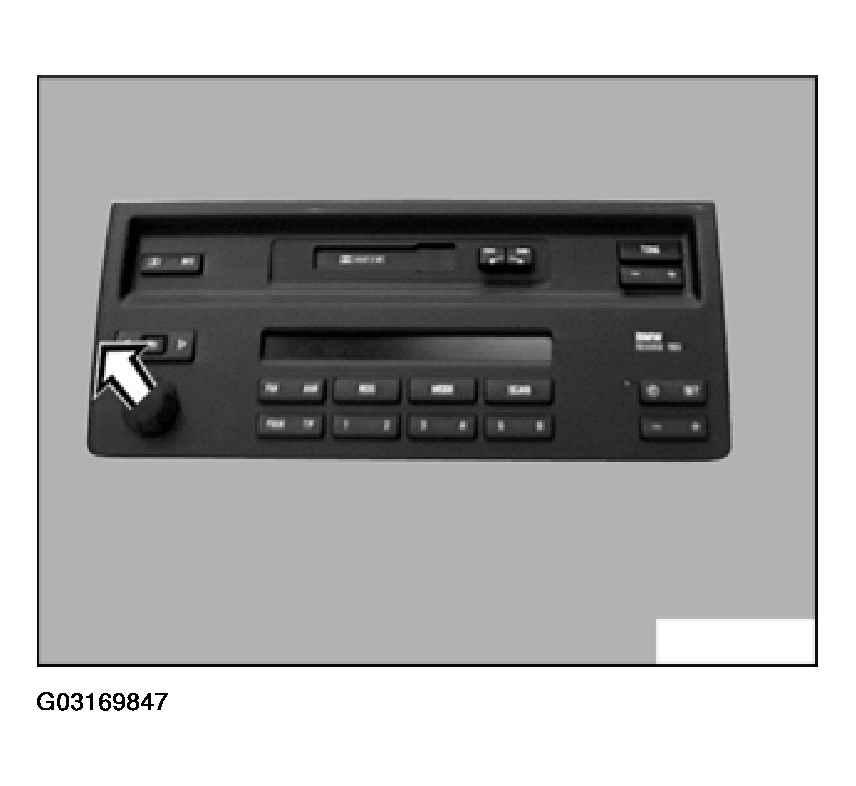

Remove knob from volume control.

Fig 1: Removing Knob From Volume Control

Courtesy of BMW OF NORTH AMERICA, INC.

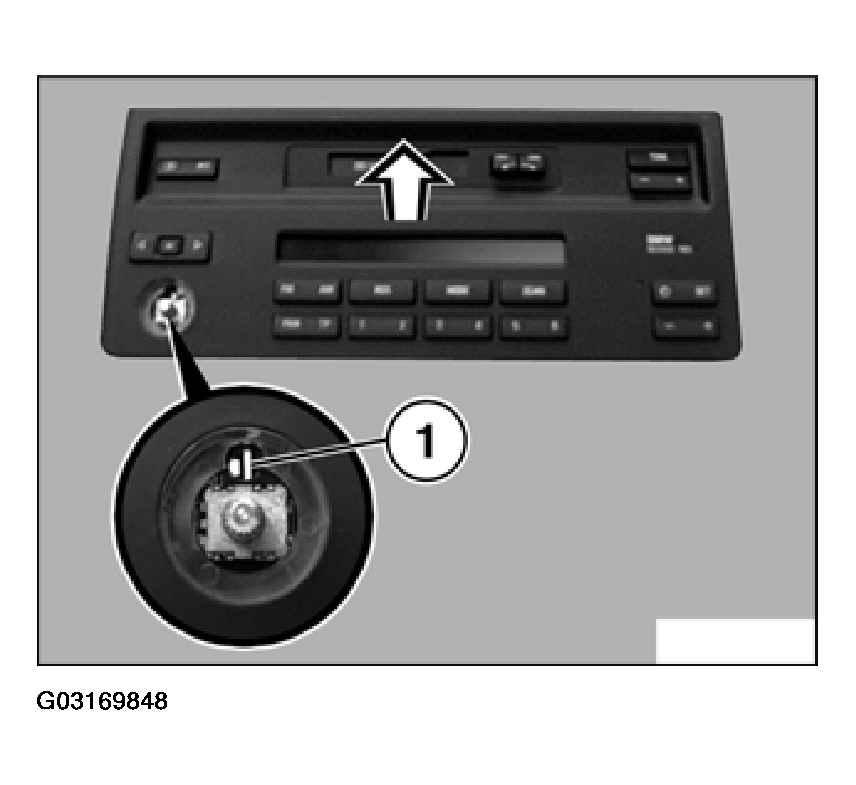

Insert screwdriver (5.5) into slot (1) approx. 1 mm and turn through 90°.

Fig 2: Locating Access Slot

Courtesy of BMW OF NORTH AMERICA, INC.

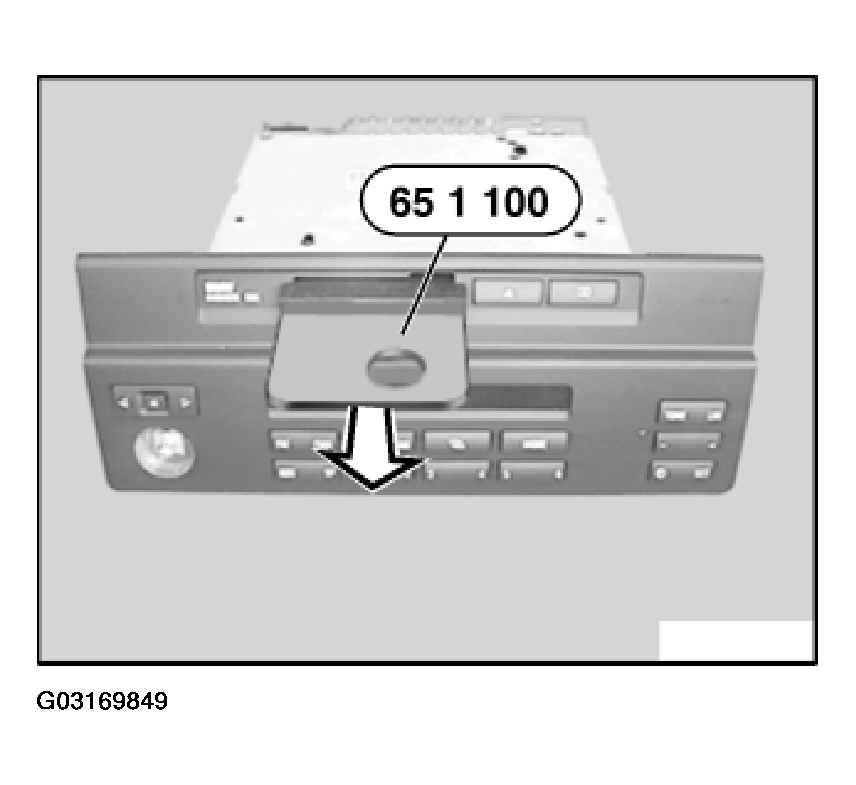

Hook special tool 65 1 100 into cassette socket and pull out radio.

Fig 3: Removing Radio

Courtesy of BMW OF NORTH AMERICA, INC.

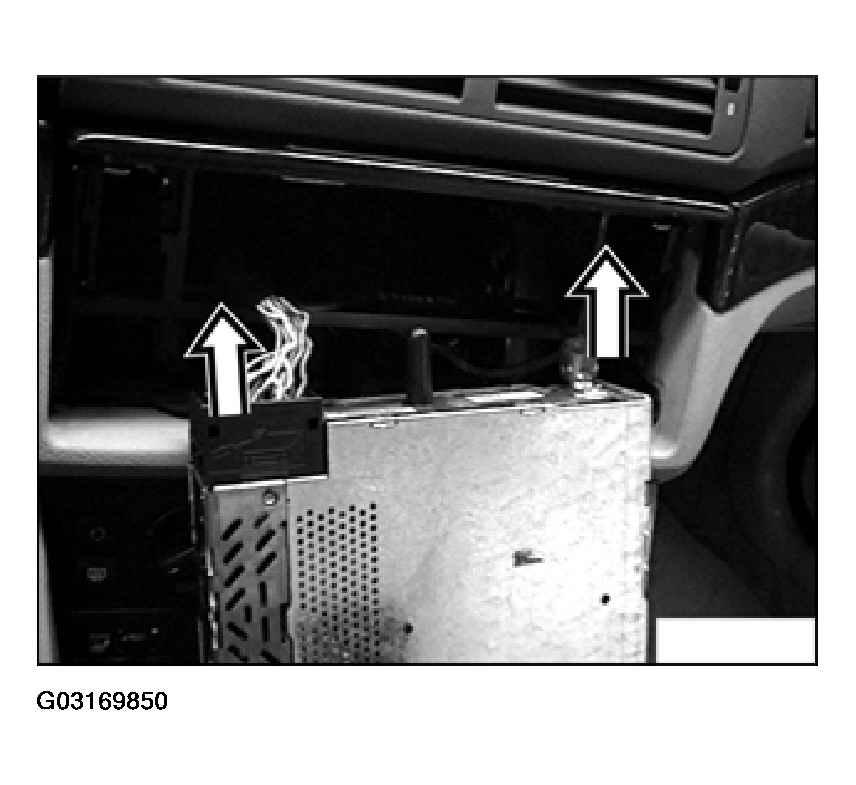

Unfasten plug connection.

Fig 4: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Radios With MID Or IRIS:

Remove MID or IRIS.

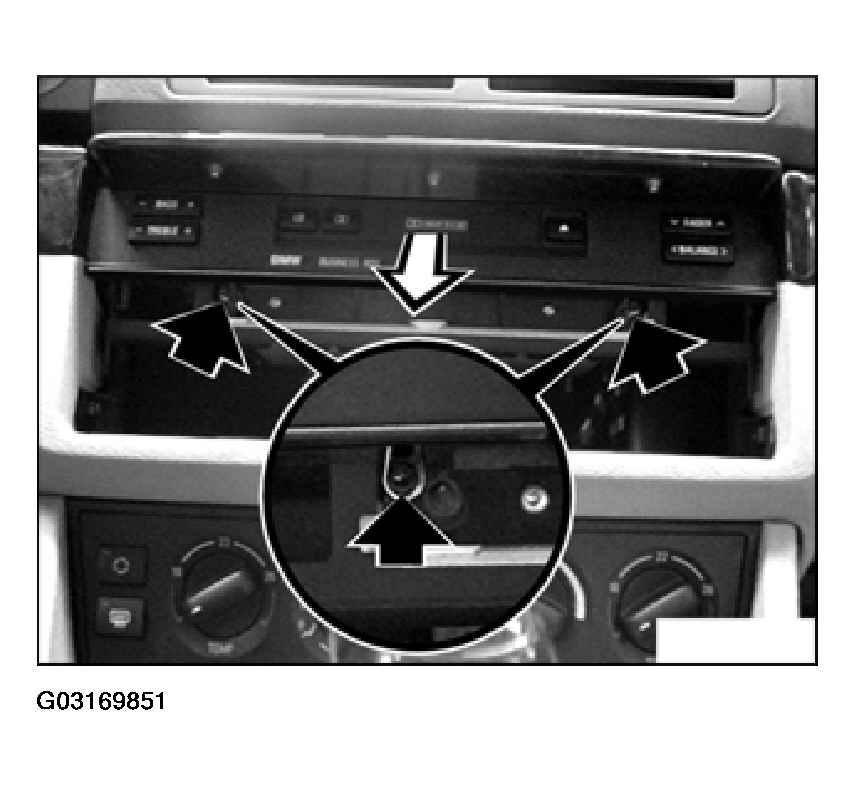

Release hexagon-socket-head cap screws on left and right and pull out radio.

Fig 5: Identifying Hexagon-Socket-Head Cap Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection.

Fig 6: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
