65 52 510 Removing and installing on-board monitor

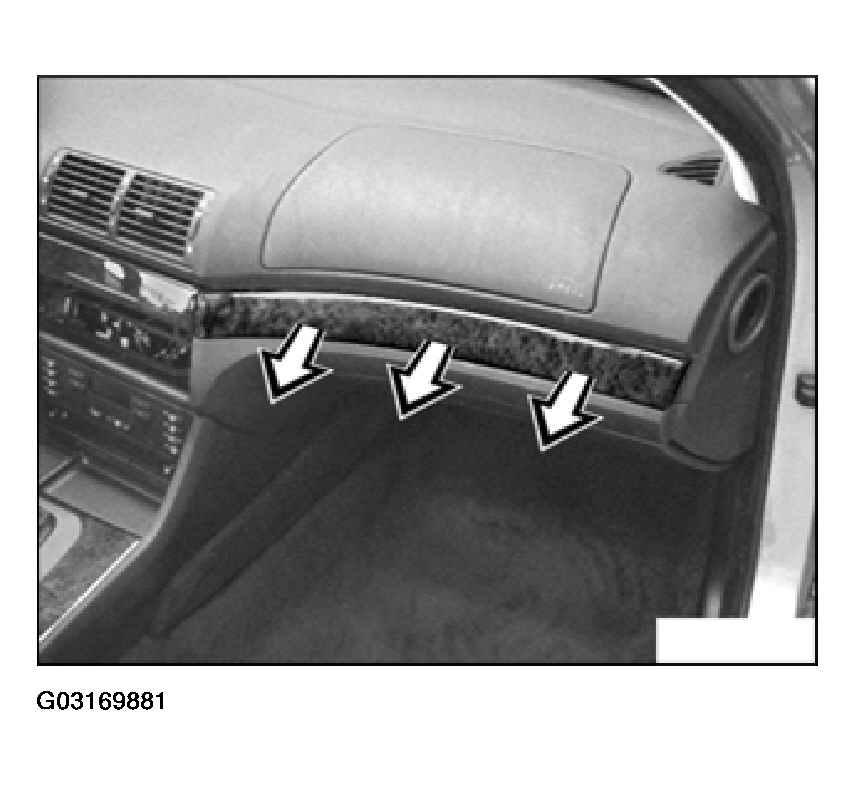

Pull off right wooden finisher.

Fig 1: Pulling Off Right Wooden Finisher

Courtesy of BMW OF NORTH AMERICA, INC.

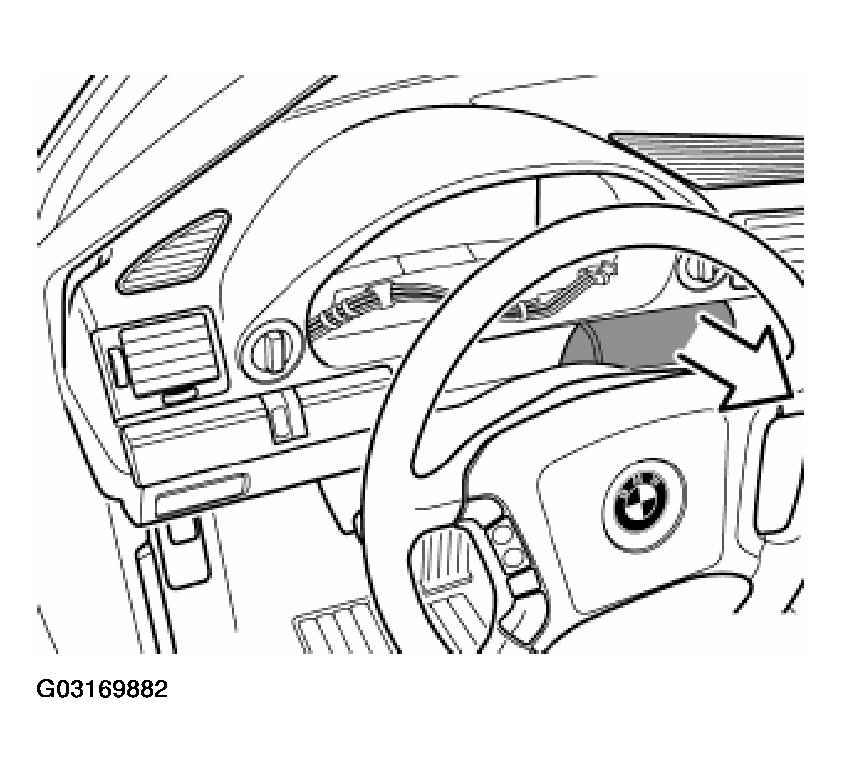

Remove top left wooden finisher by pulling upwards.

Fig 2: Removing Top Left Wooden Finisher By Pulling Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

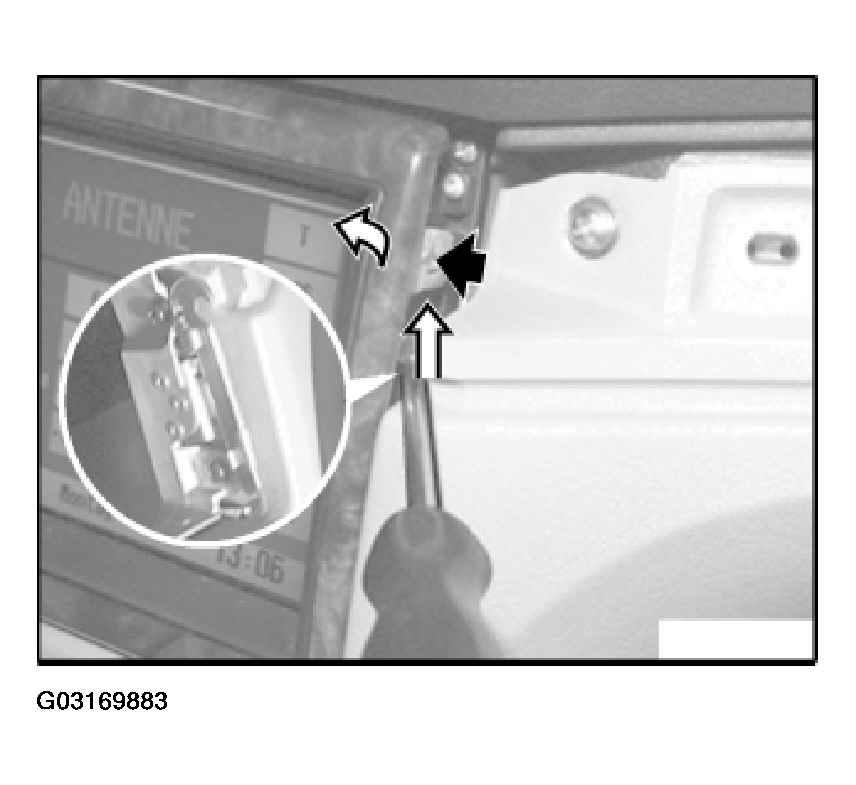

Unfasten left and right screw. Raise left and right levers with screwdriver and pull down finisher, then remove completely.

Fig 3: Removing Left And Right Screws In Finisher

Courtesy of BMW OF NORTH AMERICA, INC.

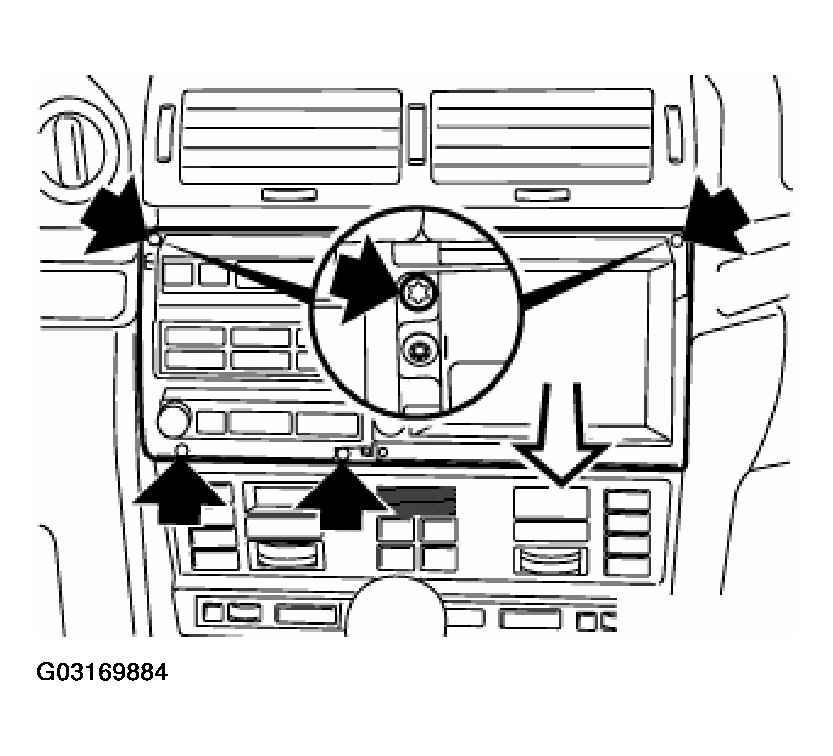

Unfasten screws.

Pull out on-board monitor towards front.

Fig 4: Locating On-Board Monitor Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

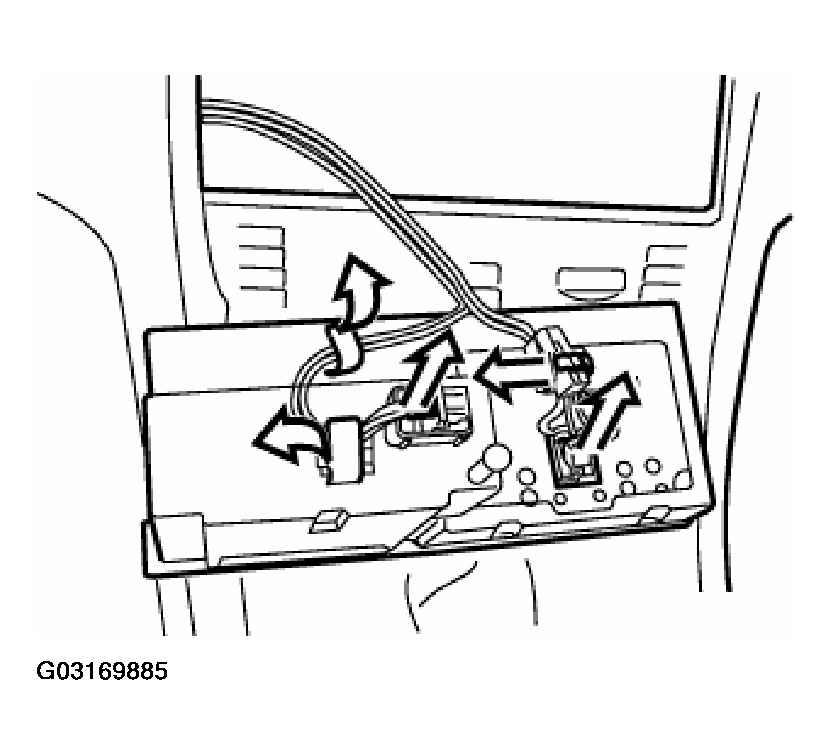

Remove plug and unfasten wiring harness from clips.

Fig 5: Removing Plug And Unfasten Wiring Harness From Clips

Courtesy of BMW OF NORTH AMERICA, INC.
