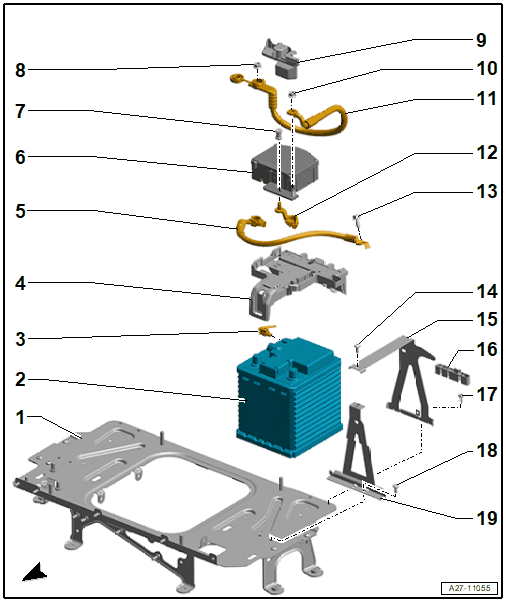

Overview - Battery

Courtesy of AUDI OF AMERICA, LLC

High-Voltage Connector Baseplate
- Refer to OVERVIEW - VOLTAGE CONVERTER .
Battery -A-
- With Battery Monitoring Control Module -J367-
- Refer to Battery, Removing and Installing .
- Refer to Battery, Checking .
Connector
Bracket for the Wire Junction -TV1-
Ground Wire
- Refer to Battery, Disconnecting and Connecting .
- 5 Nm
Wire Junction -TV1-
- Refer to Overview - Relay Panels, Fuse Panels and E-Boxes .
- Refer to Overview - Battery Jump Start Terminal .
Positive Terminal
- Refer to OVERVIEW - BATTERY JUMP START TERMINAL .
Nut
- 20 Nm
Positive Terminal Cover
Nut
- 20 Nm
Positive Cable
- Refer to POSITIVE CABLE, REMOVING AND INSTALLING
Positive Terminal
- 5 Nm
Bolt
- 20 Nm
Bolt
- 8 Nm
Retaining Bracket
Loss Protection Device for Bolts
Bolt
- Quantity: 2
- 8 Nm
Bolt
- Quantity: 2
- 8 Nm
Battery Tray
- With a battery clamping strip stop
