Overview - Battery Jump Start Terminal

The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.

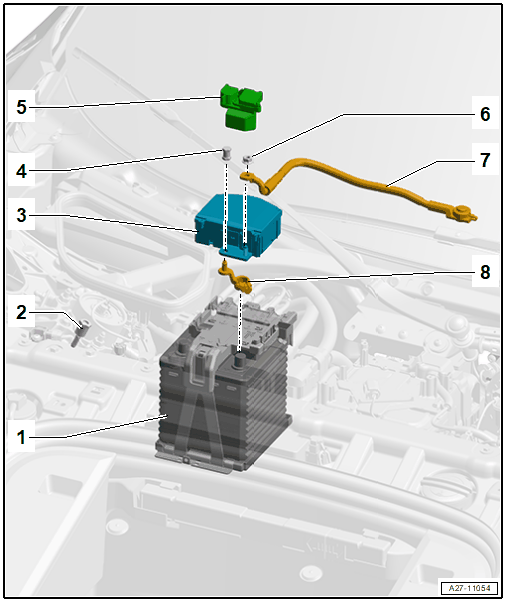

Fig 1: Exploded View Of Battery Jump Start Terminal

Courtesy of AUDI OF AMERICA, LLC

1. Battery -A-
2. Negative Terminal
   • 20 Nm
3. Wire Junction -TV1-
   • With jump start point
4. Positive Terminal
   • 16 Nm
5. Positive Terminal Cover
6. Nut
   • LHD. Refer to Overview - Battery  .
   • RHD. Refer to Overview - Battery  .
7. Positive Cable
8. Positive Terminal
   • LHD. Refer to Overview - Battery  .
   • RHD. Refer to Overview - Battery  .
