Battery, Disconnecting And Connecting
Disconnecting
-- Remove the front plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

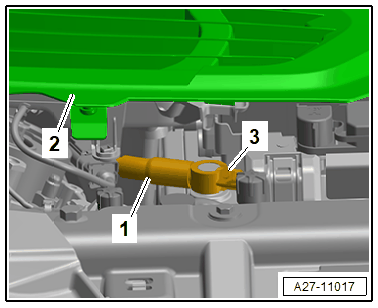

-- Lift the plenum chamber cover -2-.
-- Loosen the nut -3- several turns and remove the battery ground cable terminal clamp -1- from the battery terminal.
Connecting
-- Connect the battery ground cable to the battery negative terminal by hand and tighten the nut -3-.
Measures after connecting the Battery - A- :
- Activate the one-touch up/down function of the power window regulators, refer to the appropriate Vehicle Service Information.
- Erase the DTC memory entries regarding "Undervoltage".
Tip
After reconnecting the power supply, the ESP warning lamp can only go out after the vehicle has been driven a few meters.
Tightening Specifications
LHD vehicle
- Refer to Overview - Battery .
RHD vehicles
- Refer to Overview - Battery .
