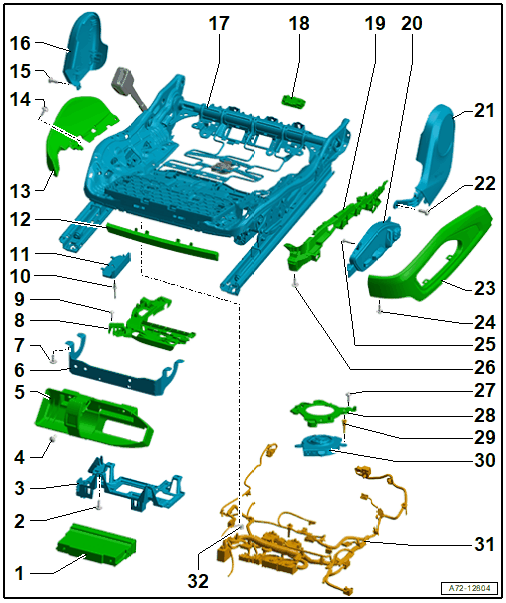

Overview - Seat Pan
- Seat Adjustment Control Module
- Bolt
- 3.2 Nm
- Quantity: 4
- Control Module Bracket
- Bolt
- 4 Nm
- Quantity: 3
- Fire Extinguisher Mount
- Equipped on some models
- Front passenger seat only
- Refer to FIRE EXTINGUISHER BRACKET, REMOVING AND INSTALLING
- Fire Extinguisher Bracket
- Equipped on some models
- Front passenger seat only
- Removing and Installing. Refer to FIRE EXTINGUISHER BRACKET, REMOVING AND INSTALLING .
- Bolt
- 6 Nm
- Quantity: 4
- Wiring Harness Bracket
- Bolt
- 3.2 Nm
- Quantity: 3
- Rivet
- Seat Position Sensor Bracket
- Overview. Refer to OVERVIEW - SEAT POSITION SENSOR .
- Seat Depth Adjuster Trim
- Only Sport/Comfort seat (Q1J/Q2J)
- Refer to SEAT DEPTH ADJUSTER TRIM, REMOVING AND INSTALLING
- Seat Bolster Support
- Only Sport/Comfort seat (Q1J/Q2J)
- Quantity: 2
- Refer to SEAT/BACKREST BOLSTERS SUPPORT, REMOVING AND INSTALLING
- Bolt
- 3.2 Nm
- Quantity: 4
- Bolt
- 2.2 Nm
- Backrest Hinge Seat Frame Trim Panel
- Tunnel-side
- Removing and Installing. Refer to BACKREST HINGE SEAT FRAME TRIM PANEL, REMOVING AND INSTALLING .
- Seat Pan
- With Driver Seat Forward/Back Adjustment Motor -V28-
- Integrated in the seat pan; replace the seat pan if faulty. Refer to SEAT PAN, REPLACING
- Footwell Lamp
- Refer to Lamps
- Seat Frame Trim Panel Bracket
- Removing and Installing. Refer to SEAT FRAME TRIM PANEL ON SIDE SILL SIDE, REMOVING AND INSTALLING .
- Seat Adjustment Control Head
- Driver Seat Adjustment Control Head -E470- /Front Passenger Seat Adjustment Control Head -E471-
- Refer to Driver Seat Adjustment Control Head -E470- /Front Passenger Seat Adjustment Control Head -E471-, REMOVING AND INSTALLING
- Backrest Hinge Seat Frame Trim Panel
- Side Sill Side
- Refer to BACKREST HINGE SEAT FRAME TRIM PANEL, REMOVING AND INSTALLING
- Bolt
- 2.2 Nm
- Seat Frame Trim Panel
- Side Sill Side
- Removing and Installing. Refer to SEAT FRAME TRIM PANEL ON SIDE SILL SIDE, REMOVING AND INSTALLING .
- Bolt
- 3.2 Nm
- Quantity: 2
- Bolt
- 1.5 Nm
- Quantity: 2
- Bolt
- 3.2 Nm
- Quantity: 2
- Bolt
- 3 Nm
- Quantity: 3
- Fan Bracket
- Vehicles with Sport Seat (Q1J)
- Refer to FRONT SEAT FAN, REMOVING AND INSTALLING
- Fan Rubber Bracket
- Insert in the bracket
- Seat Cushion Blower Fan
- Vehicles with Sport Seat (Q1J)
- Left Front Seat Cushion Fan 1 -V514- /Right Front Seat Cushion Fan 1 -V518-
- Refer to SEAT CUSHION FAN, REMOVING AND INSTALLING
- Wiring Harness
- Allocation. Refer to the appropriate Electronic Parts Information.
- Clip into the seat pan
- Nut
- 6 Nm
