Seat/Backrest Bolsters Support, Removing And Installing

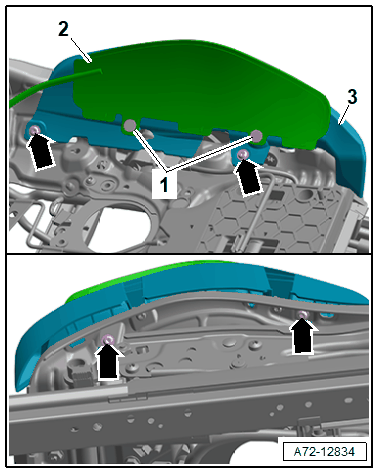

Seat Bolster Support, Removing
-- Loosen the seat pan cover and cushion and lift them up from the seat pan. Refer to Seat Pan Cover and Cushion, Removing and Installing .
-- Sport seat (Q1J): remove the clips -1- and detach the air cushion for the seat bolster inflation adjuster -2- and move it to the side.
-- Remove the bolts -arrows-.
-- Remove the support -3-.

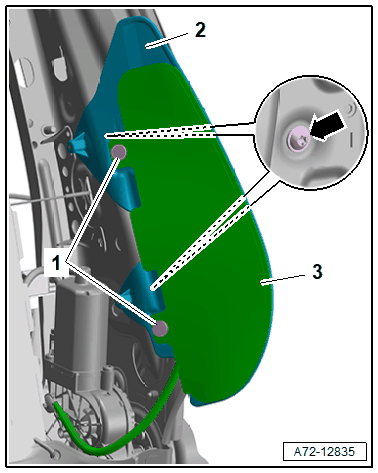

Support for Backrest Bolsters, Removing
-- Remove the cover and cushion at the backrest. Refer to Backrest Cover and Cushion, Removing and Installing .
-- Sport seat (Q1J): remove the clips -1- and detach the air cushion for the backrest bolster adjuster -3- and move it to the side.
-- Remove the bolts -arrows-.
-- Remove the support -2-.
Installing
Install in the reverse order of removal while noting the following:
Tightening Specifications
- Refer to Overview - Seat Pan .
- Refer to Overview - Front Backrest .
