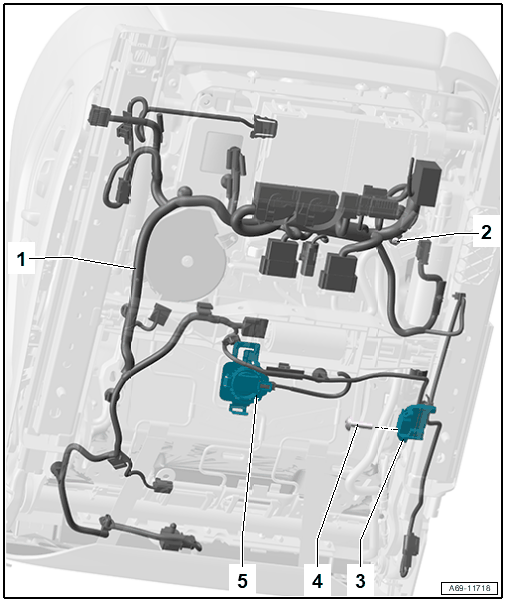

Overview - Seat Position Sensor

Courtesy of AUDI OF AMERICA, LLC

Wiring Harness
Nut
- 6 Nm
Seat Position Sensor
- Driver Seat Position Sensor -G553- /Front Passenger Seat Position Sensor -G554-
- Shown on the front passenger side
- Complete with wiring harness and connector
- Refer to Seat Position Sensor, Removing and Installing .
Bolt
- 1.1 Nm
Front Passenger Occupant Detection Sensor -G128-
- Push into the seat pan until they click into place
- Refer to Passenger Seat Occupant Detection Sensor -G128-, REMOVING AND INSTALLING .
