Component Location Overview - Luggage Compartment Trim Panels, SPORTBACK

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

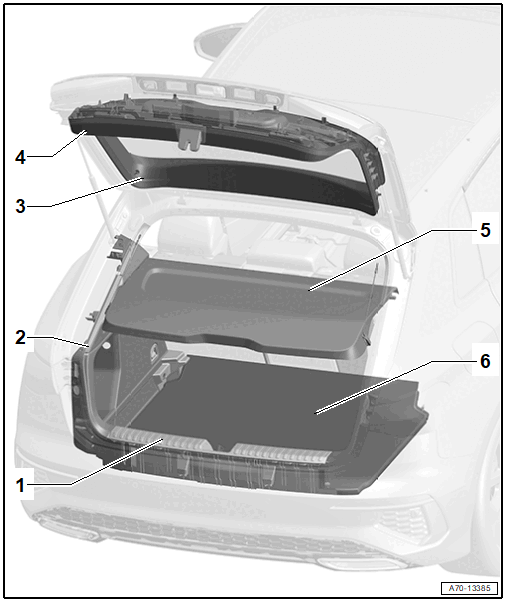

Fig 1: Exploded View Of Luggage Compartment Trip Panels, SportBack

Courtesy of AUDI OF AMERICA, LLC

Lock Carrier Trim Panel
- Refer to OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL, SPORTBACK
Luggage Compartment Side Trim Panel
- Refer to OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL, SPORTBACK
Rear Lid Upper Trim Panel
- Refer to OVERVIEW - REAR LID TRIM PANEL, SPORTBACK
Rear Lid Lower Trim Panel
- Refer to OVERVIEW - REAR LID TRIM PANEL, SPORTBACK
Luggage Compartment Cover
Luggage Compartment Floor
- Refer to OVERVIEW - LUGGAGE COMPARTMENT FLOOR
