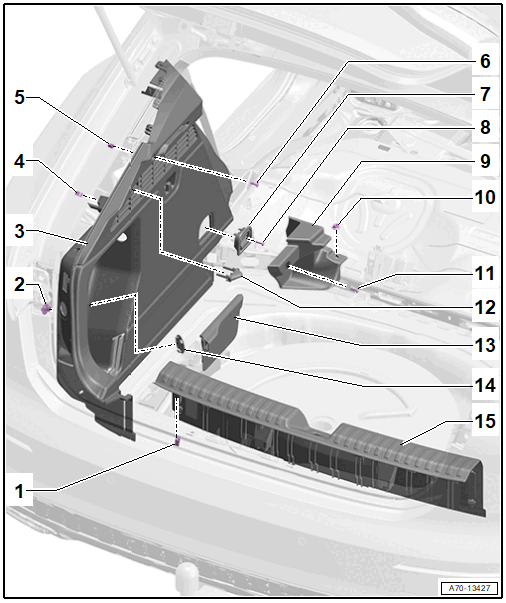

Overview - Luggage Compartment Side Trim Panel, SPORTBACK
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Clip
- Quantity: 4
- Insert in the trim panel
- Remove any clips remaining in the mounting points using the Omega Clip Tool:T40280 and insert them into the trim panel for installation.
- Replace damaged or deformed clips
- Clip Nut
- Insert in the luggage compartment side trim panel
- Luggage Compartment Side Trim Panel
- Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, SPORTBACK
- Stretch the lip of the rear lid seal over
- Clip
- Quantity: 4
- Insert in the trim panel
- Remove any clips remaining in the mounting points using the Omega Clip Tool:T40280 and insert them into the trim panel for installation.
- Replace damaged or deformed clips
- Speed Nut
- Clip into the body
- Bolt
- 2 Nm
- Tie Down
- Refer to TIE DOWN, REMOVING AND INSTALLING
- Bolt
- 8 Nm
- Luggage Compartment Floor Carrier
- Nut
- 8 Nm
- Bolt/Nut
- 8 Nm
- Hook
- Clip into the trim panel
- Cap
- Insert in the trim panel
- Plug
- Clip into the trim panel
- Lock Carrier Trim Panel
- Refer to LOCK CARRIER TRIM PANEL, REMOVING AND INSTALLING
- must engage in the pins
- Stretch the lip of the rear lid seal over
