Overview - Rear Lid Trim Panel, SPORTBACK

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

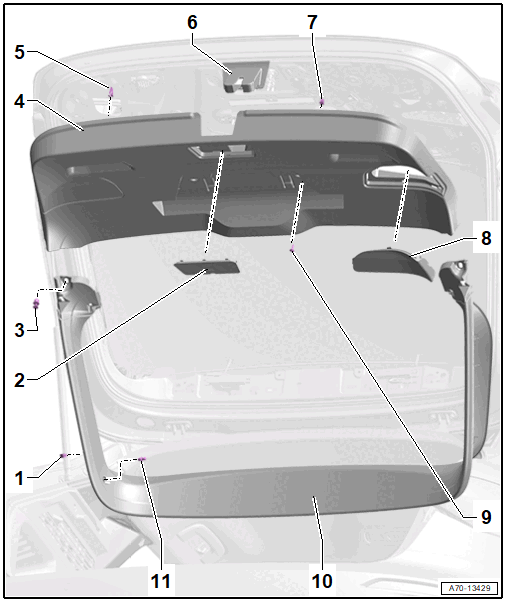

Fig 1: Exploded View Of Rear Lid Trim Panel, Sportback

Courtesy of AUDI OF AMERICA, LLC

Clip
- Quantity: 8
- Insert in the trim panel
- Remove any clips remaining in the rear lid mounting points using the Omega Clip Tool:T40280 . To install, insert into the trim panel.
- Replace damaged or deformed clips
Emergency Release Cover
- Unclip using the Trim Removal Wedge:3409
- Clipped in the rear lid trim panel
Expanding Rivet
- Quantity: 2
- Press on until stop
Lower Trim Panel
- Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING, SPORTBACK
Clip
- Quantity: 10
- Insert in the trim panel
- Remove any clips remaining in the rear lid mounting points using the Omega Clip Tool:T40280 . To install, insert into the trim panel.
- Replace damaged or deformed clips
Rear Lid Latch Trim Panel
- Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING, SPORTBACK
Speed Nut
- Quantity: 2
- Clip into rear lid
Tail Lamp Cover
- Quantity: 2
- Clipped in the rear lid trim panel
Bolt
- Quantity: 2
- 2 Nm
Upper Trim Panel
- Refer to REAR LID UPPER TRIM PANEL, REMOVING AND INSTALLING
Luggage Compartment Cover Bracket
- Quantity: 2
- Clip into the trim panel
