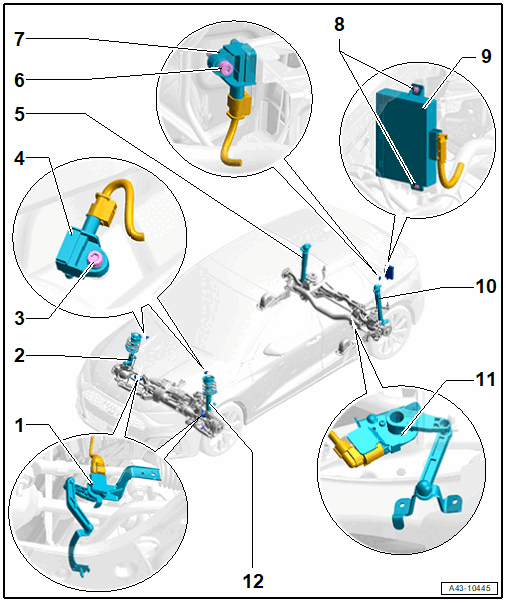

Overview - Electronic Damping
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Front Level Control System Sensor
- Left Front Level Control System Sensor -G78-
- Right Front Level Control System Sensor -G289-
- Removing and Installing. Refer to Left Front Level Control System Sensor -G78- /Right Front Level Control System Sensor -G289-, REMOVING AND INSTALLING .
- Shock Absorber with Right Front Damping Adjustment Valve -N337-
- Overview. Refer to OVERVIEW - SUSPENSION STRUT AND UPPER CONTROL ARM .
- Bolt
- 8 Nm
- Front Body Acceleration Sensor
- Left Front Body Acceleration Sensor -G341-
- Right Front Body Acceleration Sensor -G342-
- Removing and Installing. Refer to Left Front Body Acceleration Sensor -G341- /Right Front Body Acceleration Sensor -G342-, REMOVING AND INSTALLING .
- Shock Absorber with Right Rear Damping Adjustment Valve -N339-
- Overview. Refer to OVERVIEW - SUSPENSION STRUT, SHOCK ABSORBER, SPRING .
- Bolt
- 8 Nm
- Rear Body Acceleration Sensor -G343-
- Removing and Installing. Refer to Rear Body Acceleration Sensor -G343-, REMOVING AND INSTALLING .
- Bolts
- 2 Nm
- Electronic Damping Control Module -J250-
- Removing and installing, installation instructions. Refer to Electronic Damping Control Module -J250-, REMOVING AND INSTALLING .
- Shock Absorber with Left Rear Damping Adjustment Valve -N338-
- Overview. Refer to OVERVIEW - SUSPENSION STRUT, SHOCK ABSORBER, SPRING .
- Left Rear Level Control System Sensor -G76-
- Removing and Installing. Refer to Left Rear Level Control System Sensor -G76-, REMOVING AND INSTALLING .
- Shock Absorber with Left Front Damping Adjustment Valve -N336-
- Overview. Refer to OVERVIEW - SUSPENSION STRUT AND UPPER CONTROL ARM .
