Left Rear Level Control System Sensor -G76-, REMOVING AND INSTALLING

Removing Vehicle with Torsion Beam Axle

-- Remove the left rear underbody trim panel. Refer to the appropriate Service Information. .

-- Disconnect the connector -2- and free up the wire.

Courtesy of AUDI OF AMERICA, LLC

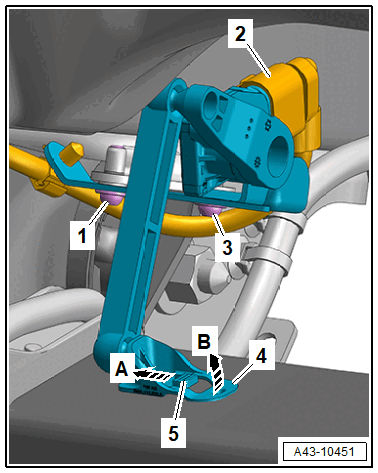

-- Remove the bolts -1 and 3-.

Vehicle with Left Rear Level Control System Sensor -G76- with clipped lever:

-- Release the catch -5- in the direction of -arrow A- and pivot the sensor lever -4- upward in direction of -arrow B- and disengage from the torsion beam axle.

-- Remove the Left Rear Level Control System Sensor -G76-.

Vehicle with Left Rear Level Control System Sensor -G76- with Bolted Lever:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1- and the Left Rear Level Control System Sensor -G76- -2-.

Removing Vehicle with Multi-Link Suspension

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

-- Remove the bolts -2 and 3- and the Left Rear Level Control System Sensor -G76- -4-.

Installing

Install in the reverse order of removal while noting the following:

• The level control system sensor lever must point toward vehicle exterior.

-- Vehicles without electronic damping: perform the basic setting of the Matrix LED headlamps after installing. Use the Vehicle Diagnostic Tester.

-- On vehicles with electronic damping perform the basic setting of the electronic damping after installing. Refer to ELECTRONIC DAMPING BASIC SETTING .

Tightening Specifications

• Refer to OVERVIEW - REAR LEVEL CONTROL SYSTEM SENSOR
