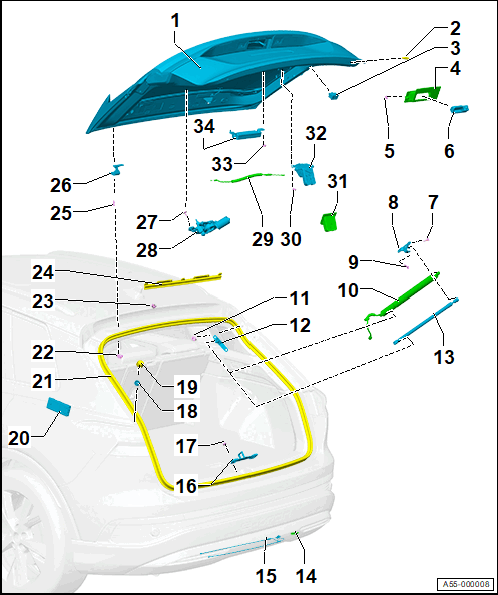

Overview - Rear Lid
- Rear Lid
- Refer to Rear Lid, Removing and Installing .
- Refer to Rear Lid, Adjusting .
- Plug
- Quantity: 3
- Rear Lid Control Head -EX58-
- Grip Piece
- Nut
- Quantity: 2
- Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN LUGGAGE COMPARTMENT
- Release Button In Rear Lid Handle -E234-
- Bolt
- Quantity: 2
- Replace after removing
- 20 Nm + 90°
- Bracket
- Stop Buffer
- No replacement part
- Rear Lid Motor
- Left: Rear Lid Drive Unit -VX69-
- Right: Rear Lid Drive Unit 2 -VX77-
- Refer to Rear Lid Drive Unit VX69/Rear Lid Drive Unit 2 VX77, Removing and Installing .
- Refer to Rear Lid Drive Unit -VX69- / Rear Lid Drive Unit 2 -VX77-, Preparing for Disposal .
- Bolt
- Quantity: 2
- Replace after removing
- 20 Nm + 90°
- Bracket
- Gas-Filled Strut
- Refer to Gas-Filled Strut, Removing and Installing .
- Refer to Gas-Filled Strut, Preparing for Disposal .
- Power Rear Lid Opening Control Module -J938-
- Power Rear Lid Opening Sensors -G750/G760-
- Striker
- Refer to Striker, Removing and Installing .
- Refer to Striker, Adjusting .
- Nut
- Quantity: 2
- 21 Nm
- Adjusting Buffer
- Refer to Adjusting Buffer, Removing and Installing .
- Refer to ADJUSTING BUFFERS, ADJUSTING
- Cap
- Rear Lid Control Module -J605-
- Rear Lid Seal
- Refer to Rear Lid Seal, Removing and Installing .
- Nut
- Replace after removing
- 20 Nm + 45°
- Clip
- For the seal
- Quantity: 7
- Seal
- Depending on vehicle equipment
- Clipped in the upper rear lid
- Bolt
- Quantity: 2
- 12 Nm
- Hinge
- Refer to Hinges, Removing and Installing .
- Clip
- For the closing assist
- Rear Lid Closing Aid -VX16-
- Release Cable
- For the closing assist
- Refer to Closing Assist Release Cable, Removing and Installing .
- Nut
- Quantity: 2
- 21 Nm
- Cover
- For the rear lid latch
- Rear Lid Lock Unit -VX25-
- Depending on vehicle equipment
- Refer to REAR LID LOCK UNIT VX25, REMOVING AND INSTALLING
- Bolt
- Quantity: 2
- 8 Nm
- Balance Weight
