Adjusting Buffers, Adjusting

Requirement

• Adjustment dimensions. Refer to ADJUSTMENT DIMENSIONS .

Procedure

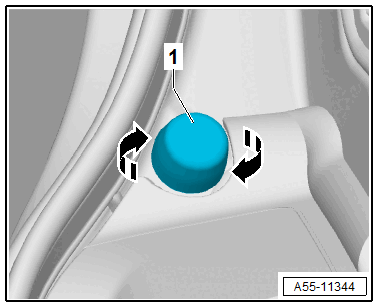

-- Before adjusting the rear lid, completely install the adjusting buffer -1- -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the adjusting buffer -1- until it makes contact with the stop on the body side with light pretension when the rear lid is closed.

-- Check if the lid is without play and in a flush position by pressing or pulling at the side edges of the rear lid.

-- Repeat the adjustment if necessary.
