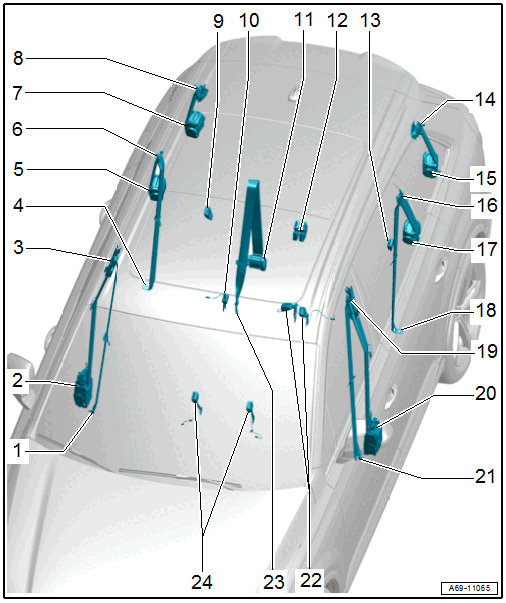

Component Location Overview - Seat Belts And Mounting Points
WARNING: This page is about a different car, the 2022 Audi SQ7 and 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
TIP:
Versions with 7 seats for the Rest of World are shown.
- Front Belt End Fitting
- Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
- Automatic Belt Retractor
- For the front three-point seat belt
- with:
- Front Passenger Seat Belt Tensioner Igniter 1 -N154-
- Front Passenger Belt Force Limiter -G552-
- Equipped on some models: Right Front Seat Belt Tensioner Control Module -J855-
- Market-specific: Front Passenger Seat Belt Tensioner Igniter 2 -N298-
- Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
- Belt Height Adjuster/Front Seat Belt Guide
- Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
- Second Row Belt End Fitting
- Overview. Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT .
- Automatic Belt Retractor
- For the second row three-point seat belt
- With Passenger Side Rear Seat Belt Tensioner Igniter -N197-
- Overview. Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT .
- Second Row Seat Belt Relay
- Overview. Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT .
- Automatic Belt Retractor
- For the third row three-point seat belt
- Market-specific version with Front Passenger Side Third Row Seat Belt Tensioner Igniter -N669-
- Overview. Refer to OVERVIEW - THIRD ROW THREE-POINT SEAT BELT .
- Third Row Seat Belt Relay
- Overview. Refer to OVERVIEW - THIRD ROW THREE-POINT SEAT BELT .
- Third Row Seat Belt Latch
- Overview. Refer to OVERVIEW - REAR SEAT BELT LATCH, THIRD ROW .
- Second Row Seat Belt Latch
- Overview. Refer to OVERVIEW - REAR SEAT BELT LATCH, SECOND ROW .
- Automatic Belt Retractor
- For the rear three-point seat belt in the center of the second row
- Overview. Refer to OVERVIEW - REAR CENTER THREE-POINT SEAT BELT .
- Third Row Seat Belt Latch
- Overview. Refer to OVERVIEW - REAR SEAT BELT LATCH, THIRD ROW .
- Third Row Seat Belt Latch
- Overview. Refer to OVERVIEW - REAR SEAT BELT LATCH, THIRD ROW .
- Third Row Seat Belt Relay
- Overview. Refer to OVERVIEW - THIRD ROW THREE-POINT SEAT BELT .
- Automatic Belt Retractor
- For the third row three-point seat belt
- Market-specific with Driver Side Third Row Seat Belt Tensioner Igniter -N668-
- Overview. Refer to OVERVIEW - THIRD ROW THREE-POINT SEAT BELT .
- Second Row Seat Belt Relay
- Overview. Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT .
- Automatic Belt Retractor
- For the second row three-point seat belt
- with Driver Side Rear Seat Belt Tensioner Igniter -N196-
- Overview. Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT .
- Second Row Belt End Fitting
- Overview. Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT .
- Belt Height Adjuster/Front Seat Belt Guide
- Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
- Automatic Belt Retractor
- For the front three-point seat belt
- with:
- Driver Seat Belt Tensioner Igniter 1 -N153-
- Driver Belt Force Limiter -G551-
- Equipped on some models: Left Front Seat Belt Tensioner Control Module -J854-
- Market-specific: Driver Seat Belt Tensioner Igniter 2 -N297-
- Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
- Front Belt End Fitting
- Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
- Second Row Seat Belt Latch
- Overview. Refer to OVERVIEW - REAR SEAT BELT LATCH, SECOND ROW .
- Center Rear Belt End Fitting
- Overview. Refer to OVERVIEW - REAR CENTER THREE-POINT SEAT BELT .
- Front Seat Belt Latches
- Overview. Refer to OVERVIEW - FRONT SEAT BELT LATCH .
