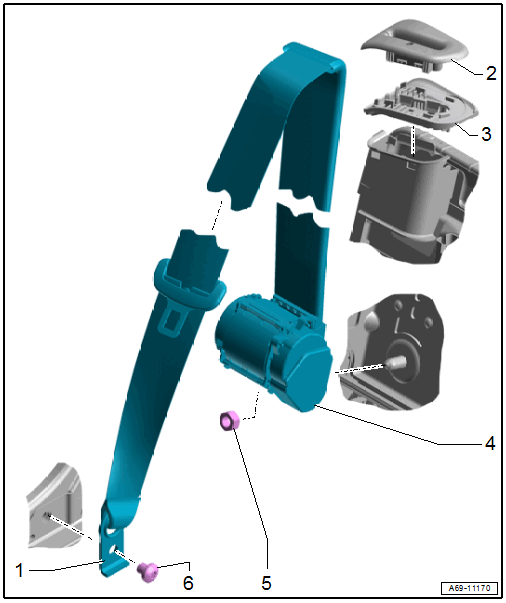

Overview - Rear Center Three-Point Seat Belt
WARNING: This page is about a different car, the 2022 Audi SQ7 and 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Center Rear Belt End Fitting
- Removing and Installing. Refer to REAR SEAT BELT ANCHOR IN CENTER SEATING POSITION, REMOVING AND INSTALLING .
- Rear Seat Belt Guide Trim in Center
- Press on until it engages audibly
- Removing and Installing. Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING .
- Rear Center Seat Belt Guide
- Replace the entire seat belt guide if damaged
- Press on until it engages audibly
- Removing and Installing. Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING .
- Automatic Belt Retractor
- Removing and Installing. Refer to SECOND ROW REAR THREE POINT SEAT BELT IN CENTER, REMOVING AND INSTALLING .
- Nut
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 40 Nm
- Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 40 Nm
