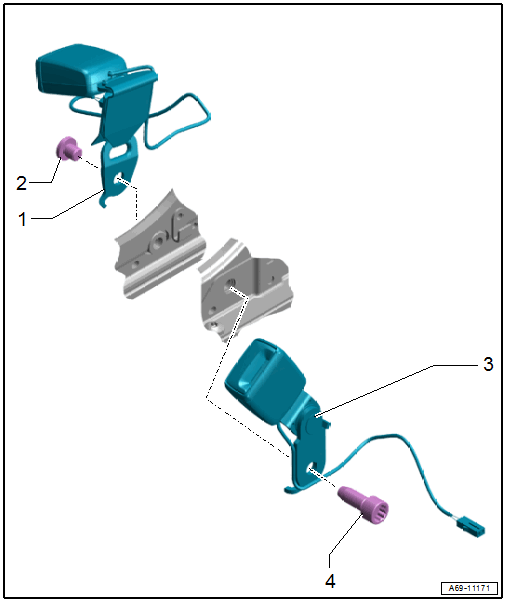

Overview - Rear Seat Belt Latch, Second Row
WARNING: This page is about a different car, the 2022 Audi SQ7 and 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Center Seat Belt Latch
- Without/with Center Rear Seat Belt Switch -E609-
- Replace the seat belt latch if the belt tensioner has deployed with the belt buckled
- Removing and Installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING, SECOND ROW .
- Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 40 Nm
- Outer Seat Belt Latch
- Driver side: without/with Driver Side Rear Seat Belt Switch -E258-
- Front passenger side: without/with Passenger Side Rear Seat Belt Switch -E259-.
- Replace the seat belt latch if the belt tensioner has deployed with the belt buckled
- Removing and Installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING, SECOND ROW .
- Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 40 Nm
