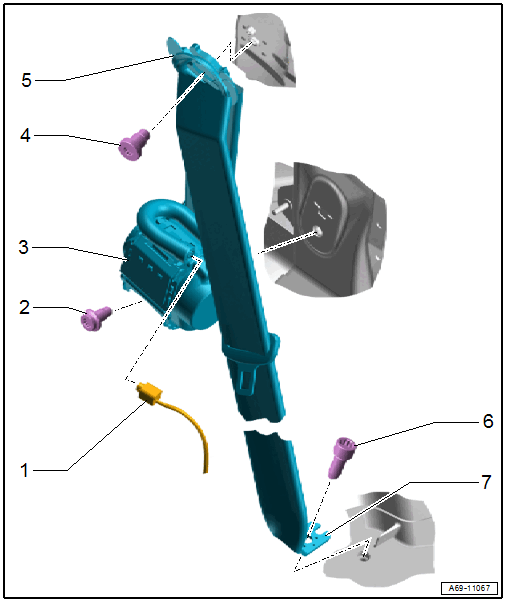

Overview - Outer Rear Three-Point Seat Belt
WARNING: This page is about a different car, the 2022 Audi SQ7 and 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Connector
- Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 40 Nm
- Automatic Belt Retractor
- Driver side: with Driver Side Rear Seat Belt Tensioner Igniter -N196-
- Passenger side: with Passenger Side Rear Seat Belt Tensioner Igniter -N197-
- Removing and Installing. Refer to OUTER SECOND ROW REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
- Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 40 Nm
- Seat Belt Guide
- Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 40 Nm
- Belt End Fitting
- Removing and Installing. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING .
