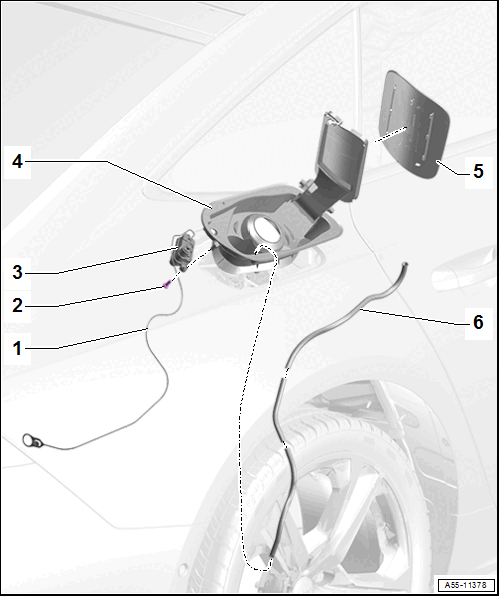

Overview - Fuel Filler Door Unit
- Emergency Release Cable
- Removing and Installing. Refer to EMERGENCY RELEASE CABLE, REMOVING AND INSTALLING .
- Bolt
- 1.5 Nm
- Quantity: 2
- Fuel Filler Door Lock Motor -V155-
- Removing and Installing. Refer to Fuel Filler Door Lock Motor -V155-, REMOVING AND INSTALLING .
- Fuel Filler Door Unit
- Replace after removing.
- Removing and Installing. Refer to FUEL FILLER DOOR UNIT, REMOVING AND INSTALLING .
- Fuel Filler Door Trim
- Removing and Installing. Refer to FUEL FILLER DOOR TRIM, REMOVING AND INSTALLING .
- Drain Hose
- For the fuel filler door unit
- Removing and Installing. Refer to FUEL FILLER DOOR UNIT DRAIN HOSE, REMOVING AND INSTALLING .
