Fuel Filler Door Trim, Removing And Installing
Removing
-- Open the fuel filler door.

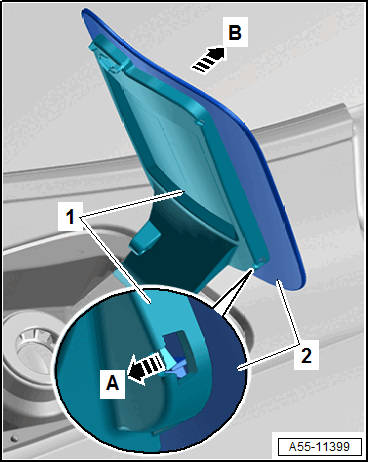

-- Release the retainer in the opening between the trim -2- and the fuel filler door unit -1- using a screwdriver -arrow A-.
-- Remove the trim slightly from the fuel filler door unit in the direction of -arrow B- and remove.
Installing
Install in reverse order of removal and note the following:
-- Bring the trim into the installation position and slide into the door unit until it clicks into place.
